Specifications
cnc engraving machineing area:600*900mm
2.800w water cooling spindle
3.X,Y,Z, Round rails
4.NC control

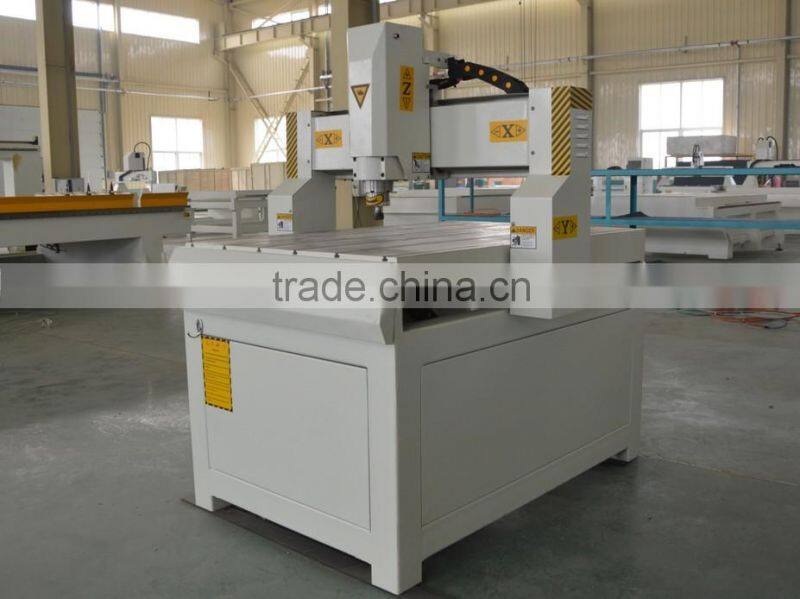

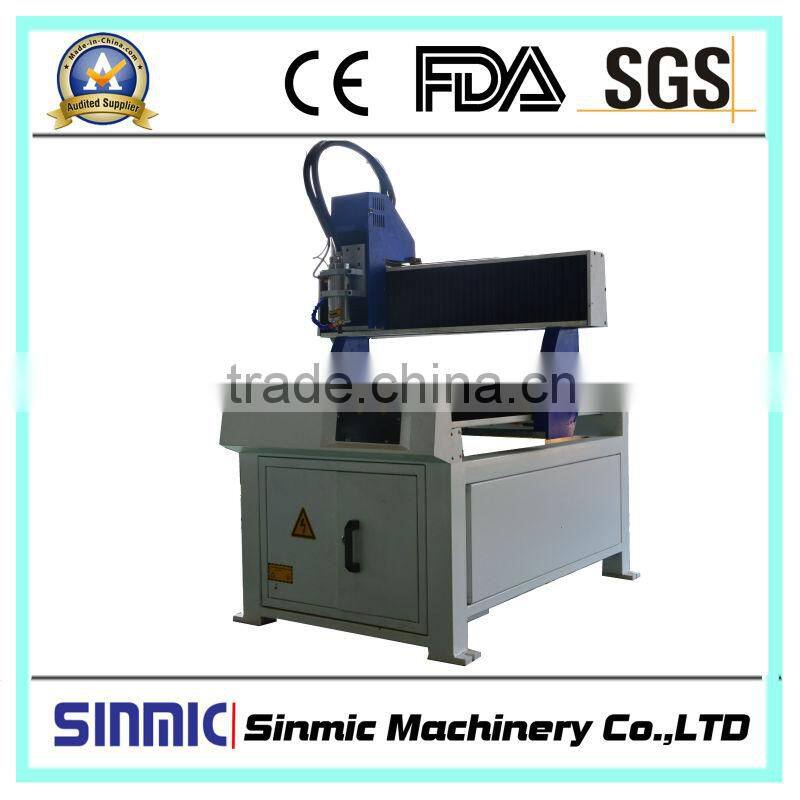

SINMIC plastic arylic wood small table top cnc engraving machine
1.Product Description:
♦ The Mini CNC Router machine is specially designed for small materials, very suitable for advertising working.
♦ It can be used for 2D&3D engraving and cutting hard wood, rosewood, PCB, PP, PE, PVC, small MDF, acrylic, aluminium, brass and so on.
♦ High precision and high speed are its features.
♦ Top-quality components, HSD spindle, Delta inverter, TBI ball screw, stepper motors , DSP control system and so on. Long-time working time, high precision and high efficiency.
♦ Easy and safe operation and low maintenance cost.
♦ Many optional configuration and OEM service are available.
3.Parameters:
| Frame | Welded steel Tube structure |
| X, Z Structure | TBI Ball Screw |
| Y Structure | Hiwin Rail Linear Bearings and TBI Ball Screw |
| Max. power Consumption | 2.2 Kw(without spindle) |
| Max.Rapid Travel Rate | 10000mm/min |
| Max.Working Speed | 6000mm/min |
| Spindle Power Motor | 1.5KW Water cooling spindle(option: 1.5KW Italy HSD Air Cooling Spindle) |
| Spindle Speed | 6000-24000RPM |
| Drive Motors | Stepper System |
| Working Voltage | AC380V/50/60Hz |
| Command Language | G code |
| Operating System | DSP System (option:Syntec) |
| Interface | USB |
| Flash Memory | 128M(U Disk) |
| Collet | ER 20 |
| X,Y Resolution | <0.01mm |
| Software Compatability | Type3 software ( option:Ucancame V9 software, Artcam software) |
| Running Environment | Temperature: 0-45°C Relative humidity: 30%-75% |
| Packing size | 1710*1750*1650mm |
| Net Weight | 260KG |
| Gross Weight | 370KG |
4.Machine details:
5.Samples:
6.FAQS:
1, How to pay to you ?
T/T inadvance or by ESCROW . We can accept 30% deposit , and balance paid to us before delivery machine to you .
2, How long is the delivery time?
For standard machines, it would be 15 days; For non-standard machines and customized machines according to clients specific requirements, it would be 30 days.
3, Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
4,How about the documents after shipment?
After shipment, we ll send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
7.After-sales servie:
1. Technical support by phone, e-mail or MSN around the clock.
2. Friendly English version manual and operation video CD disk.
3.The machine's warranty is 12 months since the date of comission.
Any questions about our machines, prices,technical support, configurations, please do not hesistate to contact us!
