Specifications
wood cnc carving machineing area:1300*2500mm
2.3kw water cooling spindle
3.vacuum table
4.DSP control

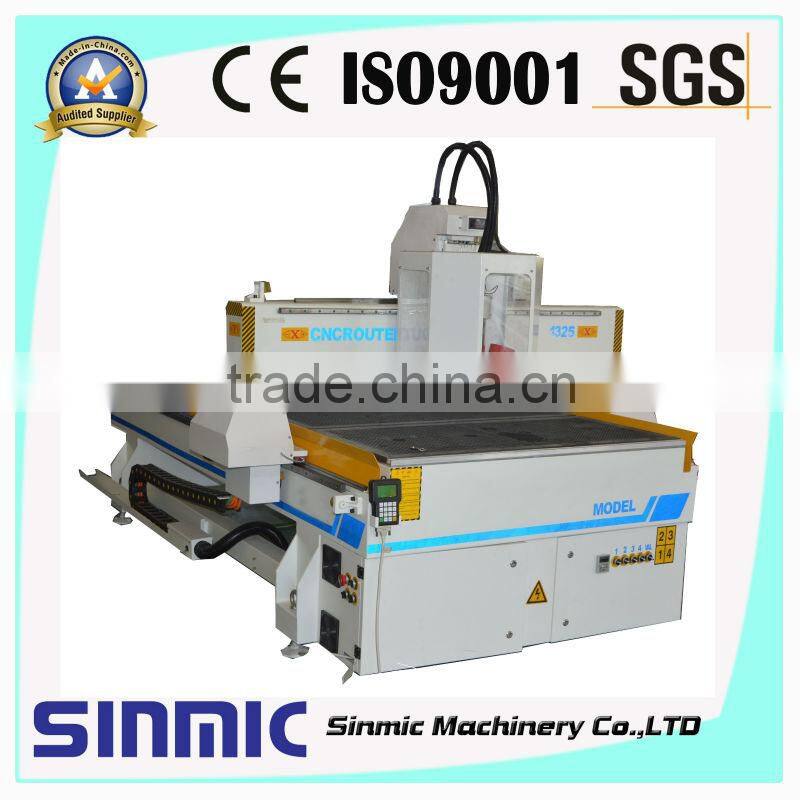

SNMIC China best quality wood cnc carving machine price
1.Application:
Woodworking industry:stereo wave board processing,cupboard door,craft wood door,wenqi door,screen,
process window home furniture product milling form sculpture.Mainly for the production of cupboard door,
real wooed,the furniture and so no,also can be used in the production of MDF cutting.
2.Main advantages:
♦ Big steel tube welded structure, reliable and durable, stable and long-life.
♦ Top-quality components, HSD ATC spindle, Delta inverter, TBI ball screw,
Yaskawa servo motors, Syntec control system and so on.Long-time working time, high precision and high efficiency.
♦ Carrousel Tool Magazine system with 8 forks and 4 tool holders , which is loaded with the spindle , make the machine change tools quickly and save time.
♦ Many optional configuration and OEM service available. According to your
requirement, different configurations will be offered.
3.Parameters:
| Model | S/C1325 | |
| Working Area | 1300×2500×200mm/ 2,000×3,000×200mm | |
| Spindle Motor | 3kw/4kw/4.5kw Inverter-driven spindle motor cooled by water (or air for option) | |
| Working Mode | Stepper motor (servo motor for your optional ) | |
| Control System | DSP off-line control panel with USB interface(128MB) or PCIMC control system | |
| Drive Mechanism | Gear-wheel on x,y axis | |
| Table Surface | Vacuum table o& T-slot extrusions | |
| Frame | wholly steel structure | |
| Motion Positioning Accuracy | ± 0.03/300mm | |
| Repositioning Accuracy | ± 0.05mm | |
| Max Motion Speed | 50,000mm/min | |
| Max Engraving Speed | 30,000mm/min | |
| Rotating Speed of Spindle | 2,4000rpm | |
| Z-axis setting | Auto Z origin tool high sensor | |
| Dictate Formate | G code, *.u00, *.mmg, *.plt | |
| Operating Voltage | 3phase 380v |
|
| Software | Type3 original with Dongle or Wentai (ArtCUT), ArtCAM software | |
| Packing Size | 3350×1950×1990mm | |
| Lubrication System | Oil lubrication system | |
| Net weight/ Gross Weight | 1227kg/ 1240kg | |
| Noise Level | Racing | LAeep dB(A)72±1 |
| Engraving | LAeep dB(A)80±2 | |
| Engraving Peak | LAeep dB(C)95 | |
| Optional Parts | Dust Collecting System | |
| Vacuum Table with Air Pump (For XJ-1224,1325) | ||
| Mist Sprayer and flume | ||
| Rotary device with Dia80mm/100mm/200mm | ||
| DSP System w/Portable Control Pad (128MB) | ||

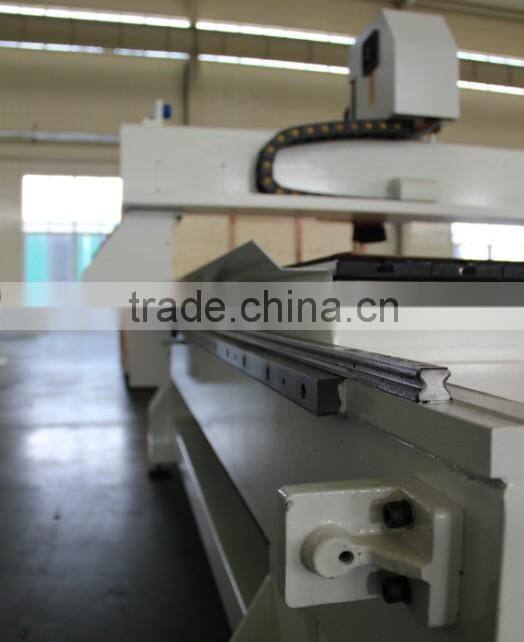

4.Production details:
5.Factory&packing:
6.Samples:
7.FAQ:
1, How to pay to you ?
T/T inadvance or by ESCROW . We can accept 30% deposit , and balance paid to us before delivery machine to you .
2, How long is the delivery time?
For standard machines, it would be 15 days; For non-standard machines and customized machines according to clients specific requirements, it would be 30 days.
3, Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
4,How about the documents after shipment?
After shipment, we ll send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
5, How is the packing?
Water-proof plastic film package with foam protection in each corner
Solid Seaworthy Wood Box Package with Steel Belt
Save space as much as possible for container loading .
8.After-sale Service:
1.Technical support by phone, e-mail or MSN around the clock.
2.Friendly English version manual and operation video CD disk.
3.The machine's warranty is 12 months since the date of comission
Any questions about our machines, prices,technical support, configurations, please do not hesistate to contact us!
