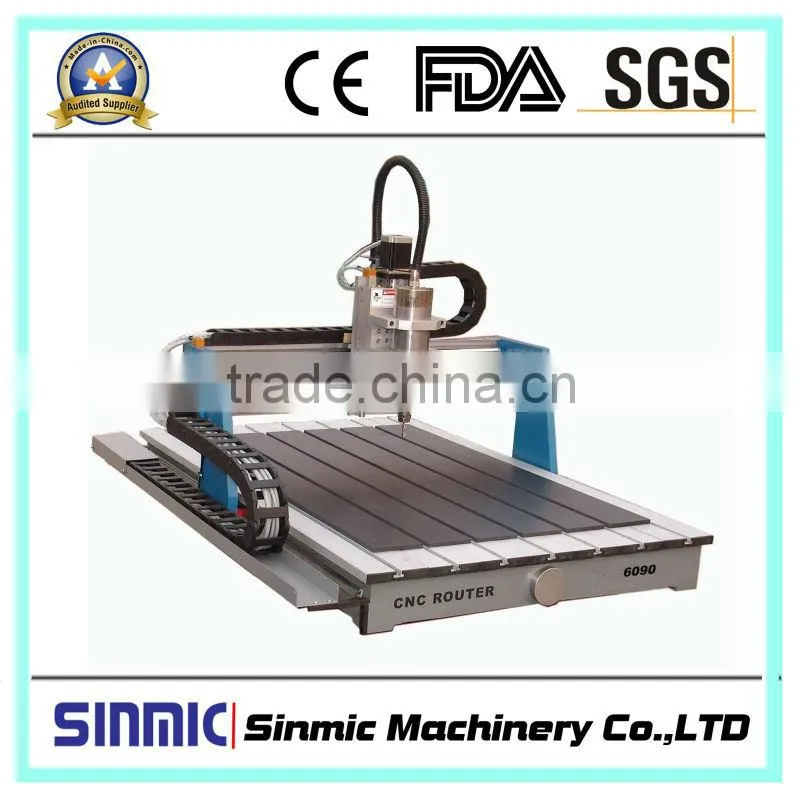

Help CenterMini Cnc Router Machine 0609
Related Products
-
Advertising Mini CNC Router 3020US$ 1,000 - 1,500MOQ: 1 Set -
ATC Wood Cnc Router 1325US$ 15,000 - 25,000MOQ: 1 Set
-
SINMIC Cnc Wood Engraver Cnc Routing Machine Wood Furniture Use Cnc Machine Woodwork Cnc Router for SaleUS$ 15,000 - 25,000MOQ: 1 Set
-
China Supplier Stone Cnc Router Price 1325US$ 10,000 - 25,000MOQ: 1 Set
-
New Design Wood Working Cnc Router MachineUS$ 6,000 - 8,500MOQ: 1 Set
Specifications
cnc router machineing area:600*900mm
2.1.5kw water cooling spindle
3.LEADSHINE drivers and motors
4.PVC worktable
1.Application:
Woodworking industry:stereo wave board processing,cupboard door,craft wood door,wenqi door,screen,process window home furniture
product milling form sculpture.Mainly for the production of cupboard door,real wooed,the furniture and so no,also can be used in the production of MDF cutting.
2.Main advantage:
The machine is the best choice for small piece materials working, and it is suitable for advertising working. It is good at engraving on brass, aluminum,
plastic, acrylic, wood, MDF and other similar materials.
Working with dust hood on all three axis, it can stop dust away from the rails and ball screws, and to keep the machine working for longer time.
With T-slot table, holding the materials with clamps, you can do a variety of high-precision works.
3.Parameters:
Number |
Description |
Parameter |
1 |
X,Y,Z Working Area |
600x900x90mm |
2 |
Table Size |
720X1140mm |
3 |
X,Y,Z Traveling Positioning Accuracy |
±0.01/300mm |
4 |
X,Y,Z Repositioning Accuracy |
±0.01mm |
5 |
Table Surface |
T-slot Table |
6 |
Frame |
Cast Iron |
7 |
X, Z Structure |
Round Rails and TBI Ball Screw, |
|
Y Structure |
Hiwin Rail Linear Bearings and Ball Screw |
9 |
Max. Power Consumption |
0.8Kw |
10 |
Max. Rapid Travel Rate |
10000mm/min |
11 |
Max. Working Speed |
6000mm/min |
12 |
Spindle Power |
1.5Kw Water Cooling Spindle |
13 |
Spindle Speed |
0-24000RPM |
14 |
Drive Motors |
Stepper System |
15 |
Working Voltage |
AC220V/50/60Hz, 1Phs |
16 |
Command Language |
G Code |
17 |
Operating System |
DSP System (options: Ncstudio/Mach3 PC Software) |
18 |
Computer Interface |
USB |
19 |
Flash Memory |
128M(U Disk) |
20 |
Collet |
ER16 |
21 |
X,Y Resolution |
<0.01mm |
22 |
Software Compatibility |
Type3/UcancameV9 software (Option: Artcam software) |
23 |
Running Environment Temperature |
0 - 45 Centigrade |
24 |
Relative Humidity |
30% - 75% |
25 |
Packing Size |
1400X1300X1000mm |
26 |
N.W. |
160KG |
27 |
G.W. |
190KG |
4.Factory dtails:
5.Samples:
6.FAQ:
1, How to pay to you ?
T/T inadvance or by ESCROW . We can accept 30% deposit , and balance paid to us before delivery machine to you .
2, How long is the delivery time?
For standard machines, it would be 15 days; For non-standard machines and customized machines according to clients specific requirements, it would be 30 days.
3, Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need toarrange shipment by themselves or their agents.
4,How about the documents after shipment?
After shipment, we ll send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, andother certificates as required by clients.
7.After-sale service:
1.Technical support by phone, e-mail or MSN around the clock.
2.Friendly English version manual and operation video CD disk.
3.The machine's warranty is 12 months since the date of comission.
Any questions about our machines, prices,technical support, configurations, please do not hesistate to contact us!
