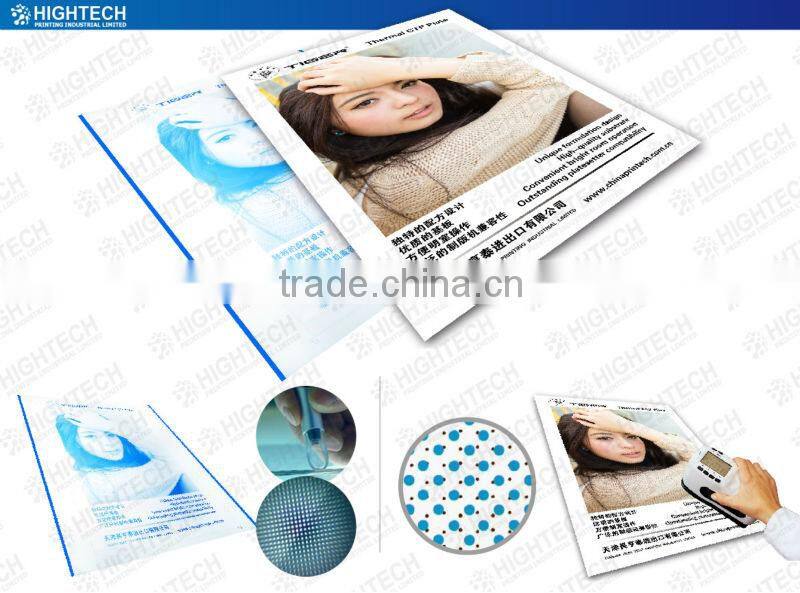

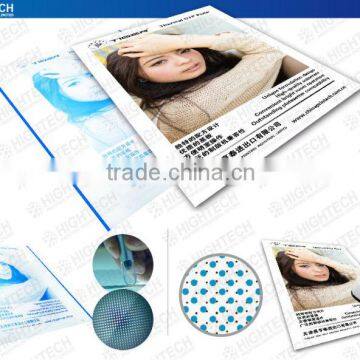

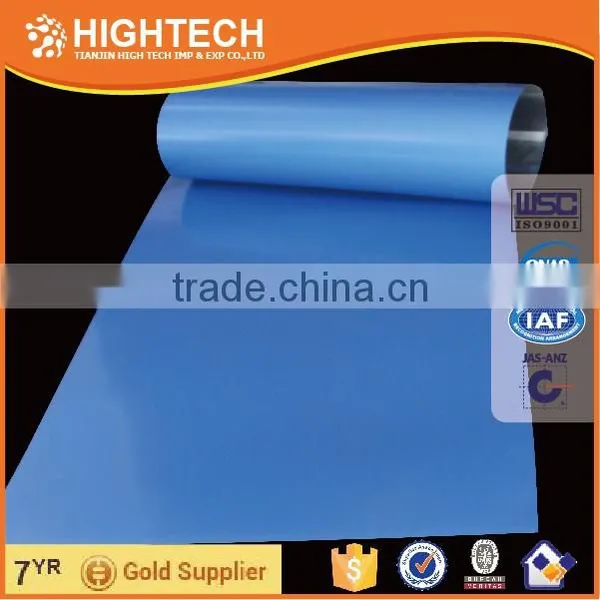

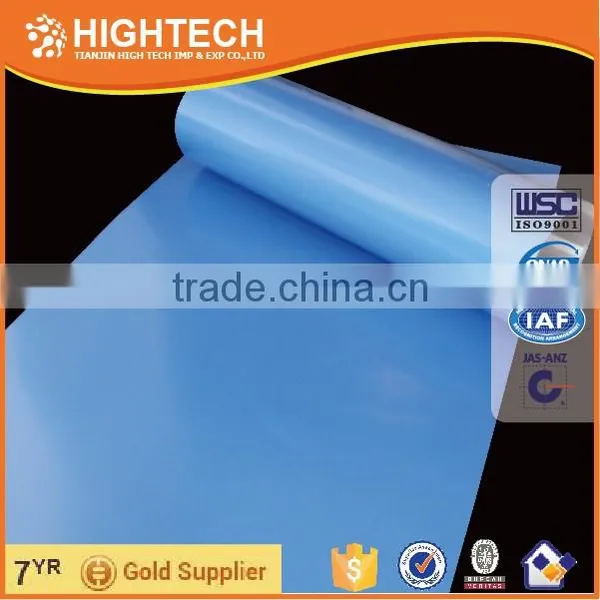

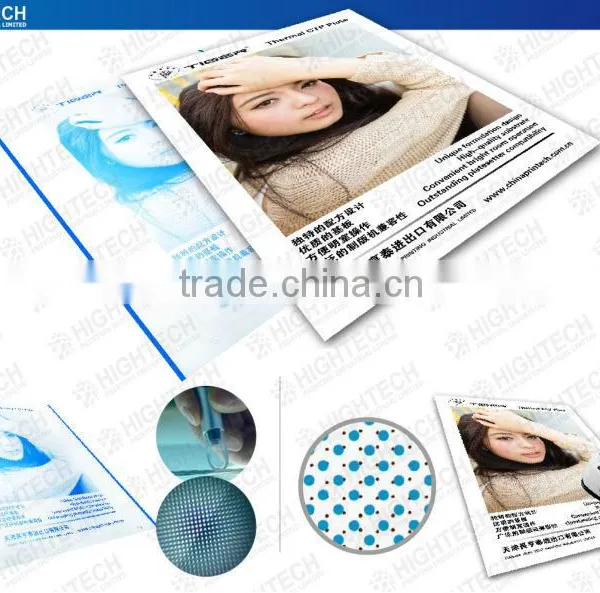

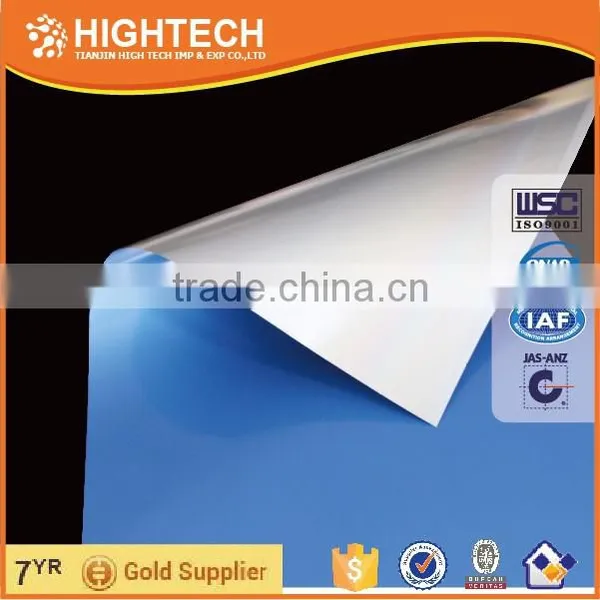

UV CTP Plate offset CTCP and positive offset ctcp plate
uv ctp plate base treatment and coating formulation are all R&D by our company independently. This plate is not only suitable for UV-CTP platemaking but also suitable for conventional CTP platemaking.
UV CTP Plate Features
1. High sensitivity which could raise platemaking efficiency.
2. Exquisite grains, with excellent water-retaining property.
3. Strong stability.
4. Strong adaptability, could compatible with a broad range brands and types of platemakers, developing
machines, developers and feeding liquids.
5. Simple platemaking process, with low cost, high efficiency and low error rate.
6. Improve presswork quality.
Main Technical Specification and Processing Conditions
Type |
Positive UV-CTP plate |
Plate Base |
Electrochemical grains, anodized aluminium base |
Thickness |
0.15mm, 0.3mm |
Use |
Top grade commercial light printing and top grade commercial printing |
Sensitivity(mj/cm2) |
80~100 |
Gray Scale Ruler Clean Level |
The third level |
Resolution |
Dot reproduction 2~98%(175lpi) |
Run Length |
50000~100000 impressions |
Size |
Max length of short edge is 1480mm,cutting diagonal error≤0.5mm |
Shelf Life |
Under the temperature of 10~25°C,with a humidity not higher than 65%, shelf life is 1 year |
Characteristics:

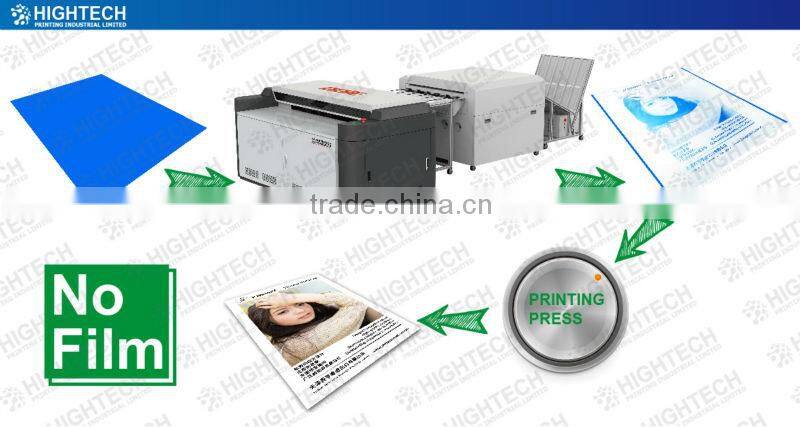

Excellent spectral property matches with UV platesetters. Platemaking speed reaches 10-15 2-up sheets/ hour with good dot reproduction. It has good developing property with broaden compatibility and higher run length up to 100,000 impressions, so it is proper for precise color printing.
The positive plate is a sort of light-decomposition plate. The photosensitive layer decomposes when exposed to light and it is removed during developing. So the non-image area is formed and unexposed region turns out to be printing image area. Generally speaking, during UV-CTP plate-making we need to remove a larger area which takes longer time to expose and plate-making is slower than the negative plate comparatively.

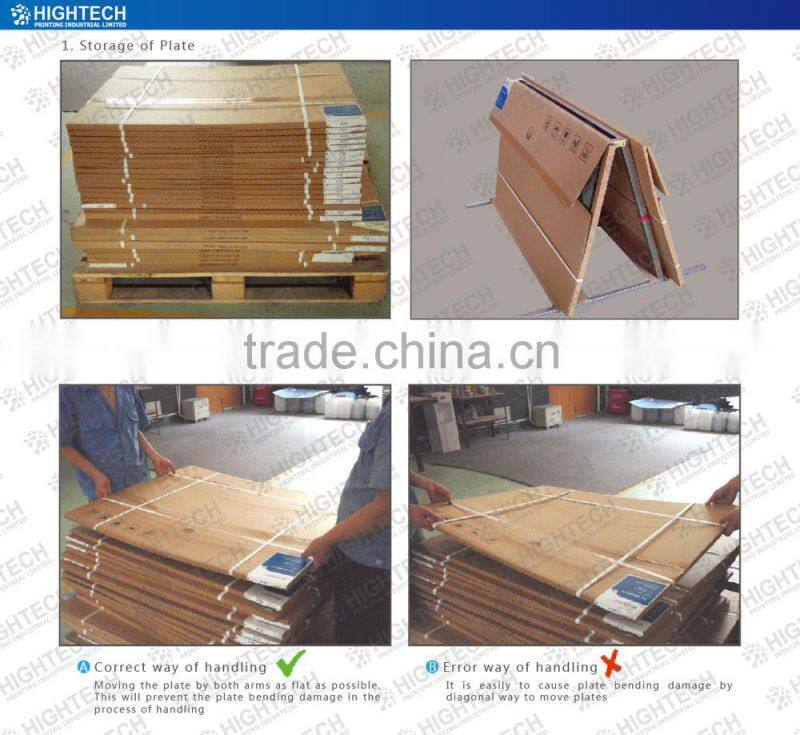

| Packaging Details: |
0.15mm, 100pcs per box; 0.2mm, 50pcs per box; 0.25mm, 50pcs per box; 0.3mm, 50pcs per box. 0.4mm, 25pcs per box. Box with pallet. Standard export package or according to customer's request. |
|---|---|
| Delivery Detail: | 15-30 days after order confirmed |
certification:
our company:
Tianjin High Tech Imp&Exp Co., Ltd is specialized in exportation of printing materials for many years. Our main products are offset printing ink,uv ink , offset ink ,printing plate, thermal lamination BOPP film and other printing ink materials.
Our ink factory was founded in 1998, is a large-scale comprehensive printing ink manufacturer for the integration of gravure,lithography, screen printing inks.It has ink manufacturing bases in Zhongshan in South of China,Tongxiang in Middle of China,Huanghua in North of China. In 2012 ink sales nearly 60,000 tons,sales income over 1.4billion RMB(about USD 226million).From 2009 to 2012,it has ranked the largest ink producer,as worthy of the first brand of Chinese ink. In 2012,it was named top ink 20 enterprises in the world by the international authoritative magazine "INK WORLD",ranking 13th.
