| Model No | 350W | 450W | 600W |
| Bag Length (Mm) | 110-330 | 120-450 | 120-450 |
| Bag Width (Mm) | 30-130 | 50-160 | 50-200 |
| Produce Height(Mm) | 10-60 | 10-80 | 10-80 |
| Film Width(Mm) | Max.350 | Max.450 | Max.600 |
| Power | 22V.50/60Hz.2.4Kw | 22V.50/60Hz.3.2Kw | 22V.50/60Hz.3.6Kw |
| Machine Size (Mm) | L3670*H820H1410 | L4380*H870H1500 | L4380*H970H1500 |
| Machine Weight(Kg) | 750 | 900 | 1100 |
| Machine Speed | 30-120 | 20-80 | |
| Film Roll Diameter | Max.320 | ||
| Packing Film | Any Heat Sealable Laminated Roll | ||
| Machine Motion | Continuous | ||
| Machine Control Through | PANASONIC PLC | ||
| Product Application | Packaging Regular Objects:Biscuit ,Pies,Plates,Etc | ||
| Packing Film Pulling | Through Electromagnetic Clutch And Brake | ||
| Contact Parts | Food Grade Stainless Ss 304 | ||
| Sealing Type | Pillow Bag | ||
| Main Motor | Panasonic | ||
| Temperature Controller | Pid Based | ||
| Machine Features | Dual Servo Motors,No Empty Bag Packing,Recoprocating Type Sealing Device | ||
| Language | English+Arabic+Any | ||
| Additional | Toolbox+Operation Instruction | ||
| Optional Features | Punching Cutting Device, Pneumatic Coding Device, Nitrogen Flushing Device,Angle Folding Device | ||
Kindly Reminder:
Please let us know the follow packing details when you offer, so that we can check if this model is suitable for your case. Thank you in advance.
- Product details
- Bag width, bag length (similar picture)
- Bag shape
- Packing film material
- Machine frame

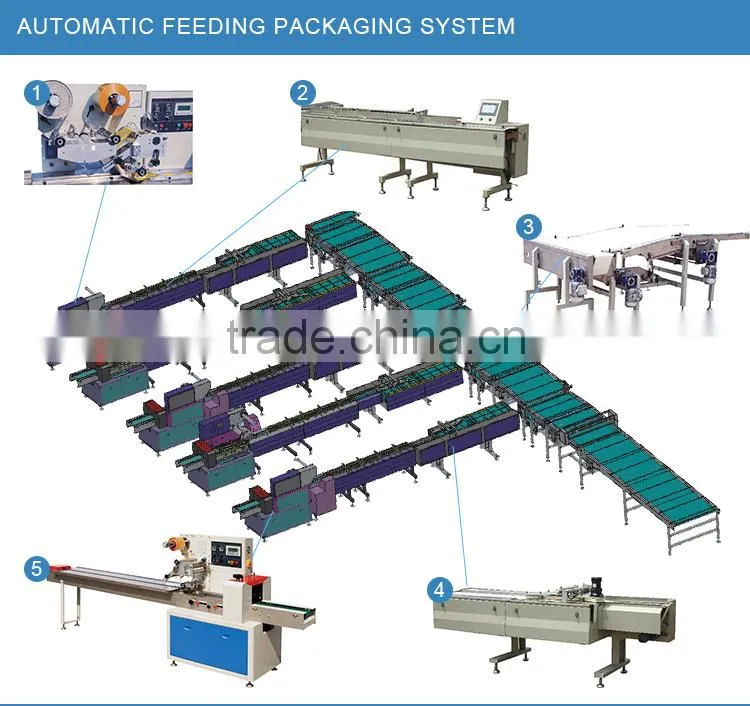

| 1.Automatic packing film mechanism |
| 2.Positioning feeding mechanism |
| 3.Distributing mechanism |
| 4.Arrangement mechanism |
| 5.Packing systems |
The finished product is shown as the figure above. A part of the components are customizable and you can use them to assemble the machine you need.
| Optional Part: |
| Air Filling Device |
| Angle Folding Device |
| Hold-Punching Device |
| Link Bag Device |
| Full Automatic Feeding Packaging Line |
| 1.Efficient: to finish the production, sealing, packaging and date printing in one time. |
| 2.Intelligent: automatic stop function, unsticky and not wasting the films. |
| 3.Convenient: labor-saving, low loss, easy to operate and maintain. |

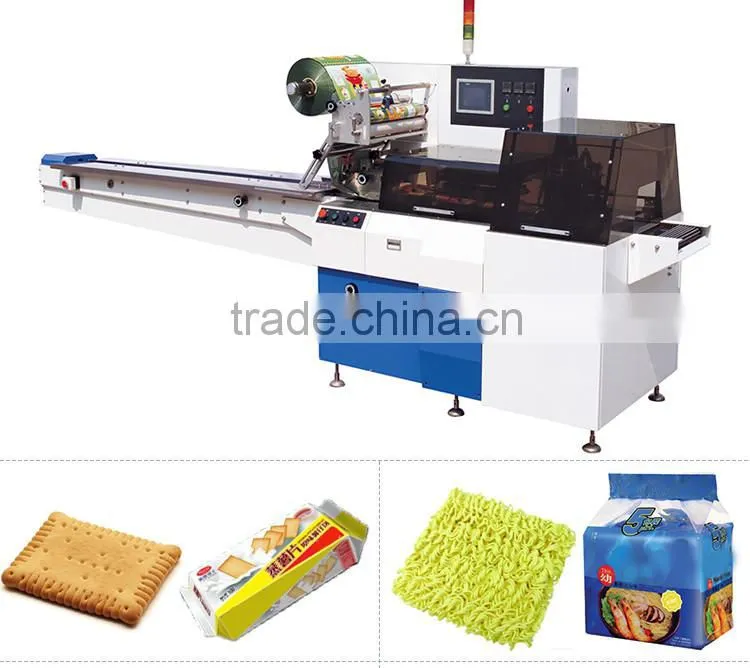

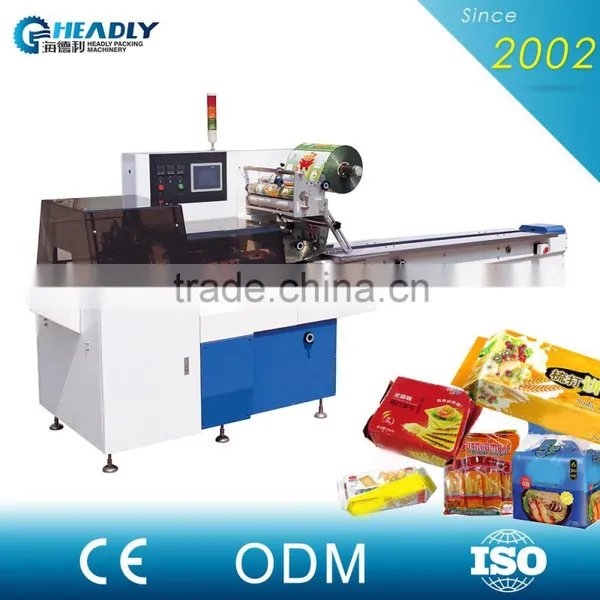

Pillow Packaging Machine

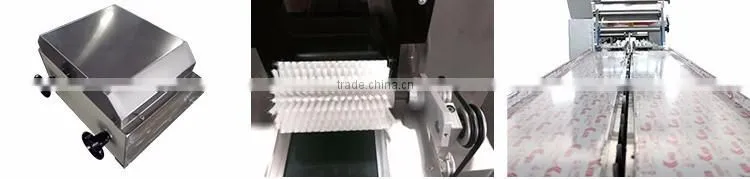

| Stainless steel | Auxiliary discharge device | Stainless steel contact part |

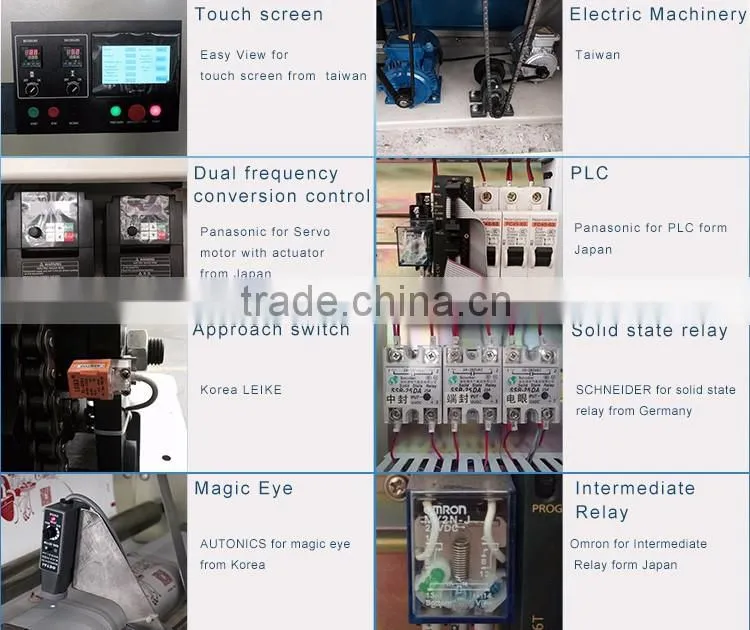

| SPARE PARTS | ||
| Spare parts | Brand |
| Terminals | Terminals for Wade Miller |
| Display Screen | Display Screen for HITECH |
| Magic Eye | Magic Eye for Shanghai Ya |
| Temperature Control List | Temperature Control List for Shanghai Yatai |
| Pushbutton Switch | Pushbutton Switch for Schneider |
| Power | Power for Taiwan Ming Wei |
| Breaker | Breaker for MUNLAN |
| Two Wire Switch | Two Wire Switch for Schneider |
| Touch screen | Touch screen for Taiwan WEINVIEW |
|
>" href="https://img13.fr-trading.com/product-detail/Foshan-Headly-plastic-packaging-machine-nougat_60256122880.html?spm=a2700.7724838.35.1.fjiSkH" target="_blank">1.HDL-250B >>
>" href="https://img13.fr-trading.com/product-detail/foshan-Headly-automatic-small-food-wafer_60242127875.html?spm=a2700.7724838.35.1.Ih0H4T" target="_blank">2.HDL-450DT >>
|
|
>" href="https://img13.fr-trading.com/product-detail/detergent-washing-powder-packaging-machine_60275551931.html?spm=a2700.7724838.35.1.CucT64" target="_blank">3.HDL-520F >> 250 grams-10kg machine
>" href="https://img13.fr-trading.com/product-detail/Headly-automatic-counting-and-weighing-machine_60276301217.html?spm=a2700.7724838.35.9.SaNCn7" target="_blank">4.HDL-420D >>
>" href="https://img13.fr-trading.com/product-detail/Wholesale-Small-Vacuum-Food-Packing-Machine_60291956358.html?spm=a2700.7724838.35.1.bAotfp" target="_blank"> 5.HDL-160A >>
>" href="https://img13.fr-trading.com/product-detail/Headly-automatic-weighing-50g-100g-200g_60273683986.html?spm=a2700.7724838.35.1.mYznlp" target="_blank">6.HDL-160F >> 1-250 grams powder packaging machine
|
- Widely used in food, pharmaceuticals, daily necessities, chemicals, toys and hardware accessories, etc.
Pillow packaging machine: for the packaging of snacks like cookies, snow cakes and custard pie, etc.; also for industrial spare parts, trays and other types of goods in regular packaging.
- Upright packaging machine: can pack different kinds of materials.
>>" href="https://img13.fr-trading.com/contactinfo.html" target="_blank">CONTACT >>>
- Headly has been made so far the EU "CE" certification and ISO 9001 international quality management system certification, Headly products sold in Europe, Asia, South America and the Middle East Africa, dozens of countries around the world and area, and strong support from the customers.
Foshan Headly Packaging Machinery Co., Ltd. has built up since 2002. Our range consists of horizontal packaging machine, vertical packaging machine, automatic feed packing line, food production equipment and many more products. Headly has the EU "CE" certification and ISO 9001 certification. Customized service accepted.We provide suggestive measures to customers for helping them in choosing the appropriate product as per application needs.
| TEL:+86-757-8665 5360 | MOBILE:+86-13802625474 |
| FAX:+86-757-8665 5360 |
ADD:No. 5 Lianpin Road, Yinchong Industrial Park, Hexi Avenue, Yanbu Street, Nanhai District, Foshan City, Guangdong, China |
|
E-mail:berryh @dlpack.com
|
A 1.More than ten years of production experience, let us pay more attention to product detail. 2.Materia selectionl, we insist on using domestic and international famous brands of accessories, to ensure the stability of the equipment.
3.About after sale service, customer problems in using the machine, our staff will be in the first time to solve the program are given.
Q:I have never use this kind of packaging machie,how to control?
A 1.Each machine we are accompanied by the relevant operating instructions.
2.Our engineers can operate through a video demonstration.
3.We can send engineers to the scene teaching.
Q:How to choose a best fit packaging machine?
A 1.Give us the product size, weight, size of the packaging bag, packaging style, we will make a detailed plan for your reference.
2.Provide us the packaging products,they will be packed in our machines and mailed to you for your reference.
Q:What makes us outstanding from peers?
A 1.A most strict QC standard in the industry is applied.
2.CE and IOS certificate.
3.High productivity with advanced machines.
4.A wide selection of styles, and product types.
