Specifications
four color offset printing machine1.Good price, easy operation
2.High-Resolutin Imaging System
3.Thermal plate
4.External

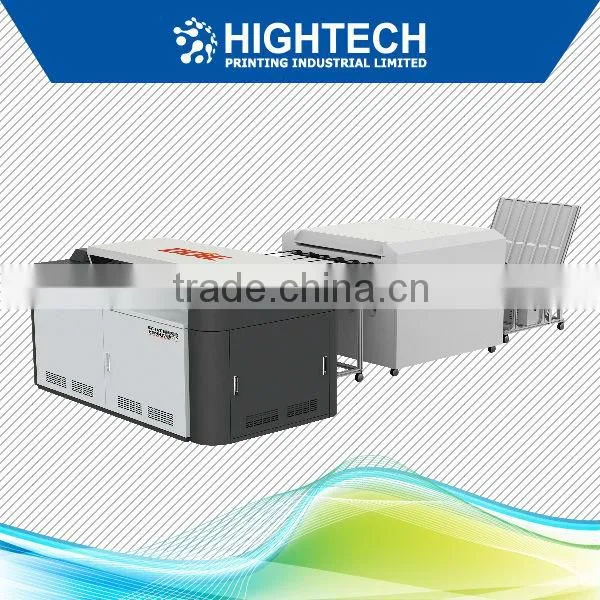

four color offset printing machine
DOIE Thermal-CTP uses the most advanced and stable V model guide rail fixed position technology, using automatic loading way and 830nm laser diode, made the high energy field value of thermal material development, high development quality, after baking , the thermal plate could prints about million times.
DOIE Thermal-CTP is full digital controlled technology, not only is a mature commercial products and the source of profits, but also to the prepress printing integration technology development which have the immeasurable influence and realistic significance.
Specifications
Model |
X-0322T |
X-0482T |
X-0642T |
Light Channels |
32 |
48 |
64 |
Output Speed(P/h) |
17 |
23 |
29 |
P size:1030mm×800mm | |||
Light Source |
830 nm Laser Diode |
||
Output Resolution (dpi) |
2400 |
||
Dot Reproduction |
1%~99% |
||
Register Accuracy (mm) |
<0.01 |
||
Plate Size (mm) |
Max. 1160×940;Min. 450×320 |
||
Suitable Plates |
Various thermal ctp plates |
||
Plate Thickness (mm) |
0.15~0.30 |
||
Plate Loading and Unloading |
Loading:Automation(Standard Set) Unloading:Automation Vacuum Fixation |
||
Plate Position Accuracy (mm) |
0.2 |
||
Plate Balance |
Automatic Balance |
||
Data Interface |
USB,1000Mbit/s |
||
Ambient |
Temperature 25°C±3°C Humidity 20~80%(Non-condensing) |
||
Machine Dimension (mm) |
L2200×W1100×H1050 |
||
Net Weight (kg) |
1500 |
||
Power Supply |
≤6KW/220V±5%,50/60Hz |
||
Use conventional plate
Use conventional plate is the lowest consumable cost at present moment.
Mature and reliable technology of 32-64channel discrete 405nm laser diode
The Ausetter 800 can produce extremely sharp and clear screen dots with the conventional plate ( long running life ).It is completely daylight operation and with a stable working life over several ten thousands hours.So it comes out more cost effective.
External drum design
Using the bend and clamp technology from the printing machines.It turns out good registration and quality dots with an increditable speed up to 29 (1030X800) plate per hour.
Autofocus
Our autofocus feature can keep constant distance between the laser and plate in real time mode. That is can eliminate error arise from any irregular surface of the plate during the plate production in turns can save a lots of material and time.
Unique screen control technology
With our precise dot compensation technology we can generate distinguishable gray scale between 1 to 99 %.
Easy operation
With highspeed USB2.0 interface. Ausetter 800 can easily install and operate like a printer with the plug and play technology.
four color offset printing machine
