Specifications
China External drum printing CTP machine1.Easy operation
2.China brand
3.External drum
4.48 channels

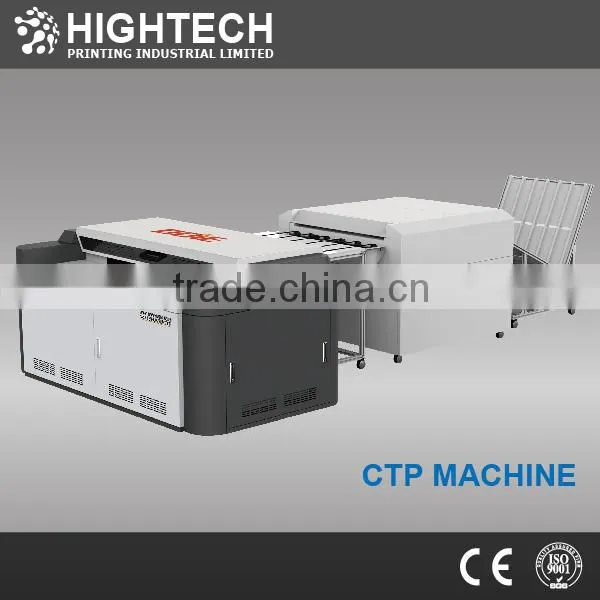

China External drum printing CTP machine
1. Feature: Independent vacuum structure, effectively absorb various plates.
2. CTP Machine Specifications:
Model |
X-0482T |
Light Channels |
48 |
Output Speed(P/h) |
23 |
P size:1030mm×800mm | |
Light Source |
830 nm Laser Diode |
Output Resolution (dpi) |
2400 |
Dot Reproduction |
1%~99% |
Register Accuracy (mm) |
<0.01 |
Plate Size (mm) |
Max. 1160×940;Min. 450×320 |
Suitable Plates |
Various thermal ctp plates |
Plate Thickness (mm) |
0.15~0.30 |
Plate Loading and Unloading |
Loading: Automation (Standard Set) Unloading: Automation Vacuum Fixation |
Plate Position Accuracy (mm) |
0.2 |
Plate Balance |
Automatic Balance |
Data Interface |
USB,1000Mbit/s |
Ambient |
Temperature 25°C±3°C Humidity 20~80%(Non-condensing) |
Machine Dimension (mm) |
L2200×W1100×H1050 |
Net Weight (kg) |
1500 |
Power Supply |
≤6KW/220V±5%,50/60Hz |
3. Certificate
4. Competitive Advantage:
1. Precise guiderail chassis. Manual entire scrape.
- The chassis is HT300 inblock cast, guiderail and chassis became in one, the high mechanical strength, the high heat stability, less possibility of deformation.
- The guiderail precision could achieve 1-3μm/m,effectively ensure printing precision.
- Scraping guiderail is made by cast-iron, the surface has one thin oil slick, play an lubricant, protective role;
- Using import soft guide pairs and precise grinder guiderail technology, make optical platform move has little wear; the moving of platform has better smooth, precision.
2. Independent vacuum structure, effectively absorb various plates.
- By using the three-cavity technology, the drum could effectively absorb various plates, avoid the plate.
- According to different size of plate, adjust absorptive power, could achieve best printing effect.
- Using negative pressure checking before printing, avoid the plate flying.
- Using negative pressure checking in printing, avoid the plate flying.
- Using negative pressure and prevent air leakage technology.
3. High precision side-guide technology, improve printing repeatability precision.
- Fusing advanced plate-edge checking technology and side-guide technology, improving the printing repeatability precision.
- High precision side-guide technology, making the equipment running more stable.
- According to the requirement, increase dynamic balance data automatically, make the production conveniently.

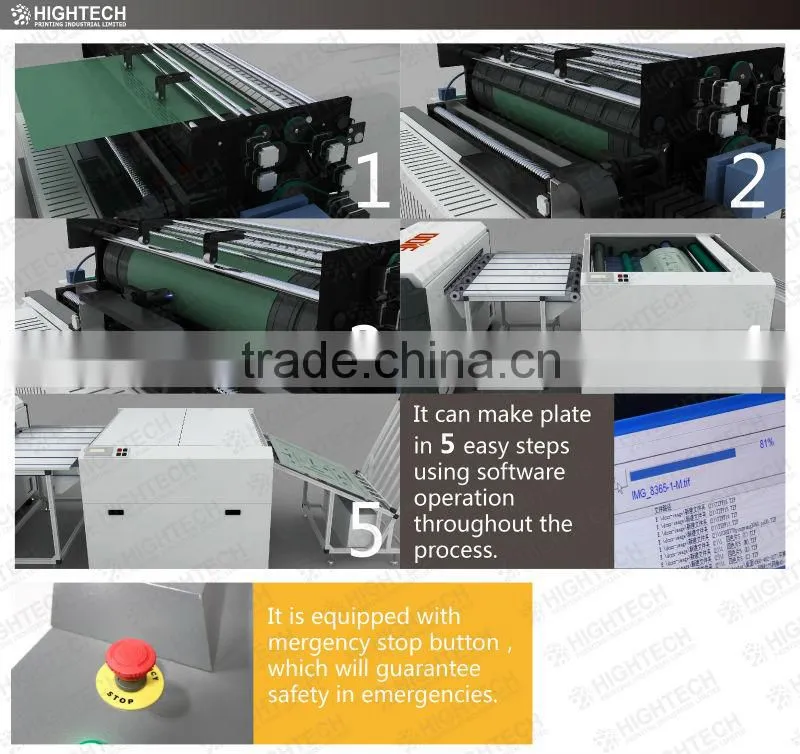

4. Continue feeding plate system, achieve automatic loading plate.
- Using advanced belt conveying plate system.
- Using mechanical head clip automatic positioner.
- Using mechanical tail clip automatic positioner.
- Using automatic negative pressure absorption technology
China External drum printing CTP machine
