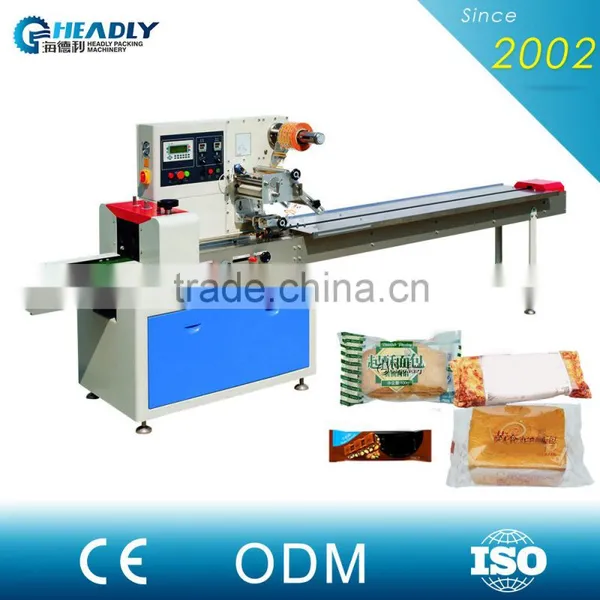

Convenient To Upgrade Chocolate Bar Small Packet Foshan Packing Machine

Name: Convenient To Upgrade Chocolate Bar Small Packet Foshan Packing Machine
Brand: Headly
Price: USD $1,000 - 5,500 / Set

FOB Price

USD $1,000 - $5,500 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Guangzhou Shenzhen
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Function:	Filling, Sealing, Wrapping	Application:	Chemical, Food, Medical
Packaging Type:	Bags, Film, Pouch, Stand-up Pouch	Packaging Material:	Plastic	Automatic Grade:	Automatic
Driven Type:	Electric	Voltage:	220V	Power:	50Hz.2.4KW
Place of Origin:	Guangdong, China	Brand Name:	Headly	Model Number:	HDL-250B
Dimension(LWH):	(L)3770x(W)670x(H)1450mm	Certification:	CE,ISO	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

Convenient To Upgrade Chocolate Bar Small Packet Foshan Packing Machine

Product Description

PRODUCT INFORMATION

Model No	250B	250D	250E	250S	320B	320D
Product Application	Packaging Various Kinds Of Regular Objects Like Biscuit,Pies,Chocolates,Bread,Cakes,Plate
Bag Length (Mm)	65-190 Or 120-280	90-220	50-115	45-90	65-190 Or 120-280	90-220 Or 150-330
Bag Width (Mm)	30-110		30-80		50-160
Product Height(Mm)	Max.40	Max.55	Max.35		Max.40	Max.55
Machine Motion	Continuous
Machine Control Through	Panasonic PLC
Machine Speed	40-230 Bag/Min		60-330 Bag/Min		40-230 Bag/Min
Film Width	Max.250 Mm				Max.320 Mm
Film Roll Diameter	Max.320 Mm
Packing Film	Any Heat Sealable Laminated Roll
Power	220V 50/60Hz 2.4Kw				220V 50/60Hz 2.6Kw
Machine Size (Mm)	*L3770W670H1450*				*L3770W720H1450*
Machine Weight	About 700 Kg				About 800 Kg
Packing Film Pulling	Through Electromagnetic Clutch And Brake
Contact Parts	Food Grade Stainless Ss 304
Sealing Type	Pillow Bag
Main Motor	From Taiwan
Temperature Controller	Pid Based
Machine Features	Dual Panasonic Frquency Conversion Control,High Sensitivity Photoelectric Eye Color Tracing,Temperature Pid Control
Language	English+Arabic+Any
Additional	Toolbox+Operation Instruction
Optional Features	Punching Cutting Device, Pneumatic Coding Device, Nitrogen Flushing Device,Angle Folding Device

PRODUCT DISPLAY

Customized Service

Kindly Reminder:

Please let us know the follow packing details when you offer, so that we can check if this model is suitable for your case. Thank you in advance.

Product details
Bag width, bag length (similar picture)
Bag shape
Packing film material
Machine frame

1.Automatic packing film mechanism

2.Positioning feeding mechanism

3.Distributing mechanism

4.Arrangement mechanism

5.Packing systems

The finished product is shown as the figure above. A part of the components are customizable and you can use them to assemble the machine you need.

Optional Part:

Air Filling Device

Angle Folding Device

Hold-Punching Device

Link Bag Device

Full Automatic Feeding Packaging Line

Product Advantage

PRODUCT ADVANTAGE

1.Efficient: to finish the production, sealing, packaging and date printing in one time.

2.Intelligent: automatic stop function, unsticky and not wasting the films.

3.Convenient: labor-saving, low loss, easy to operate and maintain.

CORE ADVANTAGE

Pillow Packaging Machine

Stainless steel	Auxiliary discharge device	Stainless steel contact part
SPARE PARTS

Spare parts	Brand
Terminals	Terminals for Wade Miller
Display Screen	Display Screen for HITECH
Magic Eye	Magic Eye for Shanghai Ya
Temperature Control List	Temperature Control List for Shanghai Yatai
Pushbutton Switch	Pushbutton Switch for Schneider
Power	Power for Taiwan Ming Wei
Breaker	Breaker for MUNLAN
Two Wire Switch	Two Wire Switch for Schneider
Touch screen	Touch screen for Taiwan WEINVIEW

HOT SALES & APPLICATION

>" href="http://www.china.cn/product-detail/Foshan-Headly-plastic-packaging-machine-nougat_60256122880.html?spm=a2700.7724838.35.1.fjiSkH" target="_blank">1.HDL-250B >>

>" href="http://www.china.cn/product-detail/foshan-Headly-automatic-small-food-wafer_60242127875.html?spm=a2700.7724838.35.1.Ih0H4T" target="_blank">2.HDL-450DT >>

>" href="http://www.china.cn/product-detail/detergent-washing-powder-packaging-machine_60275551931.html?spm=a2700.7724838.35.1.CucT64" target="_blank">3.HDL-520F >>

250 grams-10kg
powder packaging

machine

>" href="http://www.china.cn/product-detail/Headly-automatic-counting-and-weighing-machine_60276301217.html?spm=a2700.7724838.35.9.SaNCn7" target="_blank">4.HDL-420D >>

>" href="http://www.china.cn/product-detail/Wholesale-Small-Vacuum-Food-Packing-Machine_60291956358.html?spm=a2700.7724838.35.1.bAotfp" target="_blank"> 5.HDL-160A >>

>" href="http://www.china.cn/product-detail/Headly-automatic-weighing-50g-100g-200g_60273683986.html?spm=a2700.7724838.35.1.mYznlp" target="_blank">6.HDL-160F >>

1-250 grams powder

packaging machine

Widely used in food, pharmaceuticals, daily necessities, chemicals, toys and hardware accessories, etc.
Pillow packaging machine: for the packaging of snacks like cookies, snow cakes and custard pie, etc.; also for industrial spare parts, trays and other types of goods in regular packaging.
Upright packaging machine: can pack different kinds of materials.

>>" href="http://hdlpack.en.china.cn/contactinfo.html" target="_blank">CONTACT >>>

Certifications

CERTIFICATE

Headly has been made so far the EU "CE" certification and ISO 9001 international quality management system certification, Headly products sold in Europe, Asia, South America and the Middle East Africa, dozens of countries around the world and area, and strong support from the customers.

PRODUCTION & PACKAGING

Company Information

Foshan Headly Packaging Machinery Co., Ltd. has built up since 2002. Our range consists of horizontal packaging machine, vertical packaging machine, automatic feed packing line, food production equipment and many more products. Headly has the EU "CE" certification and ISO 9001 certification. Customized service accepted.We provide suggestive measures to customers for helping them in choosing the appropriate product as per application needs.

FACTORY

EXHIBITION

TEL:+86-757-8665 5360

MOBILE:+86-13726604525 carmen

FAX:+86-757-8665 5360

ADD:No. 5 Lianpin Road, Yinchong Industrial

Park, Hexi Avenue, Yanbu Street,

Nanhai District, Foshan City,

Guangdong, China

FAQ

Q: Why choose us?

A 1.More than ten years of production experience, let us pay more attention to product detail. 2.Materia selectionl, we insist on using domestic and international famous brands of accessories, to ensure the stability of the equipment.

3.About after sale service, customer problems in using the machine, our staff will be in the first time to solve the program are given.

Q:I have never use this kind of packaging machie,how to control?

A 1.Each machine we are accompanied by the relevant operating instructions.

2.Our engineers can operate through a video demonstration.

3.We can send engineers to the scene teaching.

Q:How to choose a best fit packaging machine?

A 1.Give us the product size, weight, size of the packaging bag, packaging style, we will make a detailed plan for your reference.

2.Provide us the packaging products,they will be packed in our machines and mailed to you for your reference.

Q:What makes us outstanding from peers?

A 1.A most strict QC standard in the industry is applied.

2.CE and IOS certificate.

3.High productivity with advanced machines.

4.A wide selection of styles, and product types.
