good quality 32 Channels split Amsky new ctp machine
- 30 Set / Sets per Month
- XINGANG PORT CHINA
- T/T L/C D/P D/A Credit Card PayPal
- Widly used in membrane switches Automatic Screen Printer
- Plastic Film Screen Printing Produce Line Equipment semi screen printer
- Paper Automatic Screen Printing Kit automatic screen printing machine price
- automatic screen printing machine UV Crystal Varnish Fully Auto Screen Printing Machine
- UV Silk Screen Printing Varnish UV Crystal Varnish Fully Auto Screen Printing Machine
- semi automatic screen printer for signs factory, paper box packaging
Product Details
Condition: | New | Type: | Other, good quality 32 Channels split Amsky new ctp machine | Automatic Grade: | Other, good quality 32 Channels split Amsky new ctp machine |
Place of Origin: | China | Brand Name: | AMSKY | Model Number: | good quality 32 Channels split Amsky new ctp machine |
Voltage: | 220v, 200V-240V | Power(W): | 4kw | Dimension(L*W*H): | 1900*1200*1000mm |
Weight: | 800kg | Certification: | good quality 48 Channels on-line thermal ctp machine | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
Amsky new ctp machine+technology support
+out put speed:24 32 48
+good quality 32 Channels split Amsky new ctp machine
good quality 32 Channels split Amsky new ctp machine
Welcome to high tech!
Hope you find your needs!
Best regards!
------------------------------------------- Amsky new ctp machine ---------------------------------------

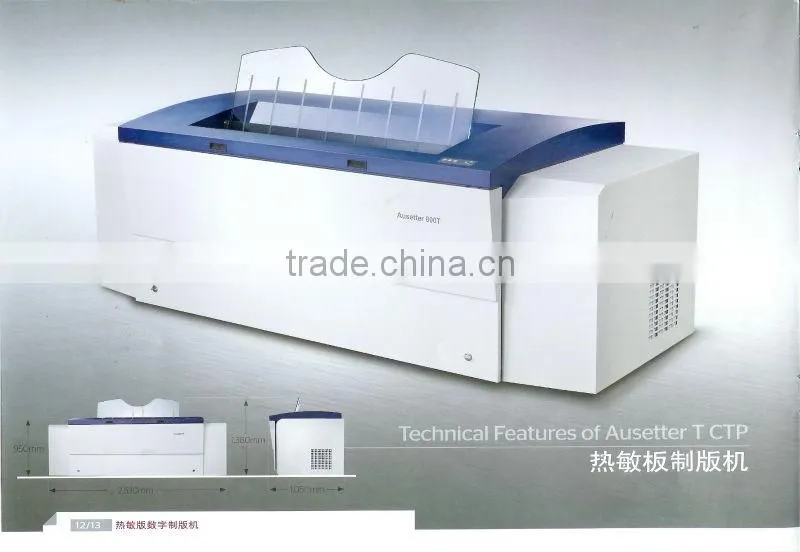

About the machine
technology specification:
Mode | U432 |
exposing method | external drum |
imaging system | 32-channel |
out put speed | 22plates/hour |
plate size | Max.800*660mm, Min.400*300mm |
exposing size | Max.800*646mm |
plate thickness | 0.15mm-0.3mm |
net weight | 800kg |
device size | 1900*1200*1000mm(W*D*H) |
power supply | single phase:200v-240v;Max power:4kw |
About the Feature
Precise guiderail chassis. Manual entire scrape:
+The chassis is HT300 inblock cast, guiderail and chassis became in one, the high mechanical strength, the high heat stability, less possibility of deformation.
+ The guiderail precision could achieve 1-3μm/m, effectively ensure printing precision.
+ Scraping guiderail is made by cast-iron, the surface has one thin oil slick, play an lubricant, protective role;
Independent vacuum structure, effectively absorb various plates:
+By using the three-cavity technology, the drum could effectively absorb various plates, avoid the plate.
+ According to different size of plate, adjust absorptive power, could achieve best printing effect.
+ Using negative pressure checking before printing, avoid the plate flying.
+ Using negative pressure checking in printing, avoid the plate flying.
Continue feeding plate system, achieve automatic loading plate:
+ Using advanced belt conveying plate system.
+ Using mechanical head clip automatic positioner.
+ Using mechanical tail clip automatic positioner.
High precision side-guide technology, improve printing repeatability precision:
+ Fusing advanced plate-edge checking technology and side-guide technology, improving the printing repeatability precision.
+ High precision side-guide technology, making the equipment running more stable.
About the working procedure
Things that we want to say :
High tech is always here for both of us to chase the best future!
We have professional qualification, good supplier and vigorous stuff!
We are time-keeping and we keep our word!
We will try our best to fulfill your satisfaction, please trust us!
-------------------------------------Amsky new ctp machine --------------------------------
we are always here for you!please contect us!
good quality 32 Channels split Amsky new ctp machine
