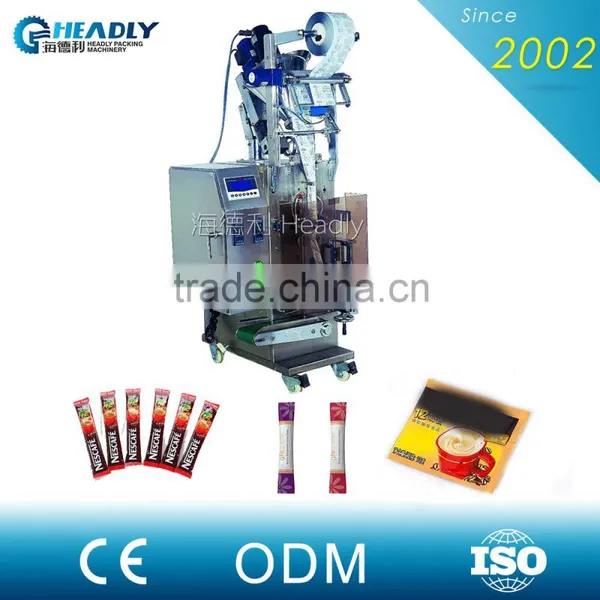

MST / PE / PET / PE Packing Material Coffee Packaging Equipment For Sale
- 20 Set / Sets per Month
- Guangzhou Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
- Maquillageplastic sealing heat shrink packaging machine Seal and shrink the film packaging machine
- Express deliverybox packing and paste sheet packing machine Box sealing and paste single package all-in-one machine
- Maquillagemembrane packing machine
- Bookseal the heat-shrink packaging machine Seal and shrink the film packaging machine
- Automatic Screw Counting Packing Machine
- Maquillagemembrane packing machine Gift packageseal and cut the packaging machine
Product Details
Condition: | New | Function: | Filling, Sealing, Wrapping | Application: | Beverage, Chemical, Commodity, Food |
Packaging Type: | Bags, Cartons, Film, Pouch, Stand-up Pouch | Packaging Material: | Plastic, Other, Plastic, Opp/Cpp.Opp/Ce.Mst/Pe/Pet/Pe | Automatic Grade: | Automatic |
Driven Type: | Electric | Voltage: | 220V | Power: | 50Hz.2.4KW |
Place of Origin: | Guangdong, China | Brand Name: | Headly | Model Number: | HLD-160F |
Dimension(L*W*H): | 1000x700x1700 mm | Certification: | CE,ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Model No | F60C | 160F |
Product Application | Powder | Powder |
Range of Application | 3in1coffee,feciel powder,slimming tea,tale powder | soybean meal,flour,milk powder,pepper,feed,coffee powder |
Volume Range | 1-100 ml | 50-250 ml |
Packing Size (mm) | Length:1-150 width:1-100 | Length:30-200 width:50-150 |
Machine Motion | Intermittent | Intermittent |
Machine control Through | PLC | PLC |
Machine Speed | 40-70 bag/min | 5-60 bag/min |
Film width | Max.230 | Max.320 |
Packing Film | Any heat sealable laminated roll | Any heat sealable laminated roll |
Power | 220V.50Hz.1.2 KW | 220V.50Hz.2.4Kw |
Machine size (mm) | L640*W700*H1580 | L1000*W700*H1700 |
Machine Weight | 225 kg | 350 kg |
Feeding System | Auger Filler | Auger Filler |
Packing film pulling | Through electromagnetic clutch and brake | Through electromagnetic clutch and brake |
Contact Parts | Food Grade Stainless SS 304 | Food Grade Stainless SS 304 |
Sealing Type | 3/4 sides sealing | Center Sealing; Pillow Type |
Main Motor | Main Motor For Chian motor | Main Motor For Dorna |
Temperature Controller | PID Based | |
Machine Features | Individual Temperature Control, High Speed Counter, Voltage Vector Control | |
language | English+Arabic+any | |
additional | toolbox+operation instruction | |
Optional Features | punching Cutting Device, Pneumatic Coding Device, Nitrogen Flushing Device |
Kindly Reminder:
Please let us know the follow packing details when you offer, so that we can check if this model is suitable for your case. Thank you in advance.
- Product details
- Bag width, bag length (similar picture)
- Bag shape
- Packing film material
- Machine frame
Optional Parts: |
Measuring Cup Device |
Combination Weigher |
Screw Metering Machine |
Plunger Pump Or Gear Pump Metering System |
Hdl Series Main Machine |
Z Type Bucket Elevator |
Vibration Feeder |
Supporting Platform |
Product Conveyor |
Screw Infeed Conveyor |
Material Elevator |
Nitrogen-Making Machine |
Check Weigher |
Metal Detector |
Nitrogen-Making Machine |
And So On |
1.Efficient: to finish the production, sealing, packaging and date printing in one time. |
2.Intelligent: automatic stop function, unsticky and not wasting the films. |
3.Convenient: labor-saving, low loss, easy to operate and maintain. |

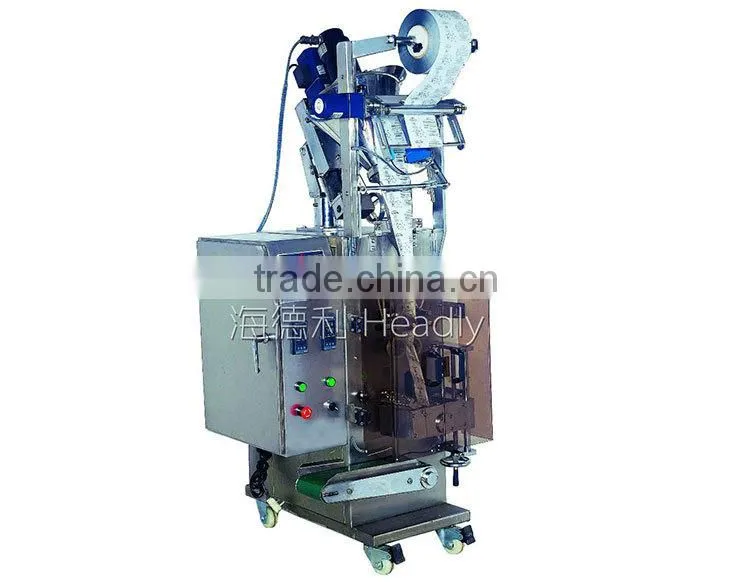

Large Vertical Automatic Packaging Machine- Multiple Choices
Auger filler | Volumetric cup | Weighter |
SPARE PARTS |
Spare parts | Brand |
Temperature-controlled meter | Temperature-controlled meter from China for SHANGHAI YATAI |
Horizontal cylinder | Horizontal cylinder from Taiwan for AIRTAC |
Cutting thin cylinder | Cutting thin cylinder from Taiwan for AIRTAC |
Push membrane cylinders | Push membrane cylinders from Taiwan for AIRTAC |
FR&L | FR&L from Taiwan for AIRTAC |
Reducing valve and pressure gage | Reducing valve and pressure gage from Taiwan For AIRTAC |
Solenoid valve and valve plate | Solenoid valve and valve plate from Taiwan for MINDMAN |
Filling solenoid | Filling solenoid from Taiwan for MINDMAN |
Intermediate relay | Intermediate relay from Japan for IZUMI |
Switching power supply | Switching power supply from Taiwan for FOTEK |
HOT SALES & APPLICATION
>" href="http://www.china.cn/product-detail/Foshan-Headly-plastic-packaging-machine-nougat_60256122880.html?spm=a2700.7724838.35.1.fjiSkH" target="_blank">1.HDL-250B >>
>" href="http://www.china.cn/product-detail/foshan-Headly-automatic-small-food-wafer_60242127875.html?spm=a2700.7724838.35.1.Ih0H4T" target="_blank"> 2.HDL-450DT >>
| |
>" href="http://www.china.cn/product-detail/detergent-washing-powder-packaging-machine_60275551931.html?spm=a2700.7724838.35.1.CucT64" target="_blank">3.HDL-520F >> 250 grams-10kg machine
>" href="http://www.china.cn/product-detail/Headly-automatic-counting-and-weighing-machine_60276301217.html?spm=a2700.7724838.35.9.SaNCn7" target="_blank">4.HDL-420D >>
>" href="http://www.china.cn/product-detail/Wholesale-Small-Vacuum-Food-Packing-Machine_60291956358.html?spm=a2700.7724838.35.1.bAotfp" target="_blank"> 5.HDL-160A >>
>" href="http://www.china.cn/product-detail/Headly-automatic-weighing-50g-100g-200g_60273683986.html?spm=a2700.7724838.35.1.mYznlp" target="_blank">6.HDL-160F >> 1-250 grams powder packaging machine
|
- Widely used in food, pharmaceuticals, daily necessities, chemicals, toys and hardware accessories, etc.
Pillow packaging machine: for the packaging of snacks like cookies, snow cakes and custard pie, etc.; also for industrial spare parts, trays and other types of goods in regular packaging.
- Upright packaging machine: can pack different kinds of materials.
>>" href="http://hdlpack.en.china.cn/contactinfo.html" target="_blank">CONTACT >>>
- Headly has been made so far the EU "CE" certification and ISO 9001 international quality management system certification, Headly products sold in Europe, Asia, South America and the Middle East Africa, dozens of countries around the world and area, and strong support from the customers.
Foshan Headly Packaging Machinery Co., Ltd. has built up since 2002. Our range consists of horizontal packaging machine, vertical packaging machine, automatic feed packing line, food production equipment and many more products. Headly has the EU "CE" certification and ISO 9001 certification. Customized service accepted.We provide suggestive measures to customers for helping them in choosing the appropriate product as per application needs.
TEL:+86-757-8665 5360 | MOBILE:+86-13802625474 |
FAX:+86-757-8665 5360 | ADD:No. 5 Lianpin Road, Yinchong Industrial Park, Hexi Avenue, Yanbu Street, Nanhai District, Foshan City, Guangdong, China |
E-mail:berryh@
|
A 1.More than ten years of production experience, let us pay more attention to product detail. 2.Materia selectionl, we insist on using domestic and international famous brands of accessories, to ensure the stability of the equipment.
3.About after sale service, customer problems in using the machine, our staff will be in the first time to solve the program are given.
Q:I have never use this kind of packaging machie,how to control?
A 1.Each machine we are accompanied by the relevant operating instructions.
2.Our engineers can operate through a video demonstration.
3.We can send engineers to the scene teaching.
Q:How to choose a best fit packaging machine?
A 1.Give us the product size, weight, size of the packaging bag, packaging style, we will make a detailed plan for your reference.
2.Provide us the packaging products,they will be packed in our machines and mailed to you for your reference.
Q:What makes us outstanding from peers?
A 1.A most strict QC standard in the industry is applied.
2.CE and IOS certificate.
3.High productivity with advanced machines.
4.A wide selection of styles, and product types.
