Specifications
2014 new Similar Screen Prepress CTP Machine+technology support ctp machine
+ctp machine

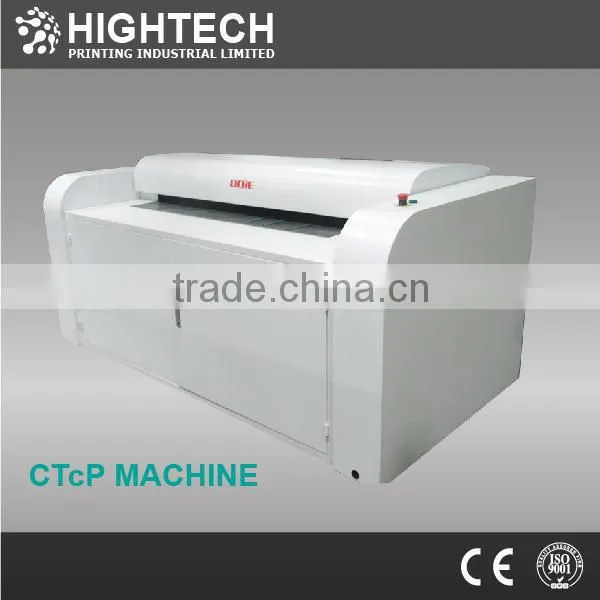

Similar Screen Prepress CTP Machine
2014 new Similar Screen Prepress CTP Machine
Welcome to high tech!
Hope you find your needs!
Best regards!
-------------------------------------------- new ctp machine --------------------------------------------
About the technology specification
| Mode | U432 |
| exposing method | external drum |
| imaging system | 32-channel |
| out put speed | 22plates/hour |
| plate size | Max.800*660mm, Min.400*300mm |
| exposing size | Max.800*646mm |
| plate thickness | 0.15mm-0.3mm |
| net weight | 800kg |
| device size | 1900*1200*1000mm(W*D*H) |
| power supply | single phase:200v-240v;Max power:4kw |
About the Feature
Precise guiderail chassis. Manual entire scrape:
+The chassis is HT300 inblock cast, guiderail and chassis became in one, the high mechanical strength, the high heat stability, less possibility of deformation.
+ The guiderail precision could achieve 1-3μm/m, effectively ensure printing precision.
+ Scraping guiderail is made by cast-iron, the surface has one thin oil slick, play an lubricant, protective role;
Independent vacuum structure, effectively absorb various plates:
+By using the three-cavity technology, the drum could effectively absorb various plates, avoid the plate.
+ According to different size of plate, adjust absorptive power, could achieve best printing effect.
+ Using negative pressure checking before printing, avoid the plate flying.
+ Using negative pressure checking in printing, avoid the plate flying.
Continue feeding plate system, achieve automatic loading plate:
+ Using advanced belt conveying plate system.
+ Using mechanical head clip automatic positioner.
+ Using mechanical tail clip automatic positioner.
High precision side-guide technology, improve printing repeatability precision:
+ Fusing advanced plate-edge checking technology and side-guide technology, improving the printing repeatability precision.
+ High precision side-guide technology, making the equipment running more stable.
About the working procedure
Things that we want to say :
High tech is always here for both of us to chase the best future!
We have professional qualification, good supplier and vigorous stuff!
We are time-keeping and we keep our word!
We will try our best to fulfill your satisfaction, please trust us!
-------------------------------------- new ctp machine --------------------------------------
we are always here for you!please contect us!
