SMCCM-4 Full Automatic Contact Smart Card Milling and Chip Implanting and Testing Machine
US$ 32,786 - 57,377
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
SmartManufacture
Model Number:
SMCCM-4
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo or shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SMCCM-6 Full Automatic GMS Card Punching MachineUS$ 1,639 - 24,590MOQ: 1 Set -
SMCCM-1 Full Automatic Contact Smart Card Milling MachineUS$ 25,000 - 30,000MOQ: 1 Set
-
SMCCM-1 Full Automatic Insert Card Making MachineUS$ 25,000 - 30,000MOQ: 1 Set
-
SMCCM-1 Full Automatic IC Card Making MachineUS$ 25,000 - 30,000MOQ: 1 Set
-
SMCCM-2 Contact Smart Card Chip Implanting and Testing MachineUS$ 25,000 - 30,000MOQ: 1 Set
Place of Origin
Zhejiang, China
Brand Name
SmartManufacture
Model Number
SMCCM-4

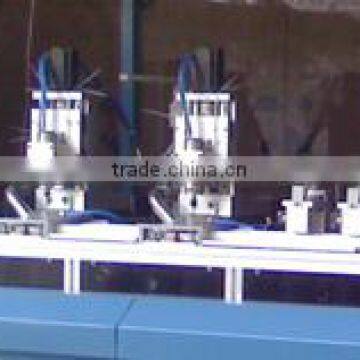

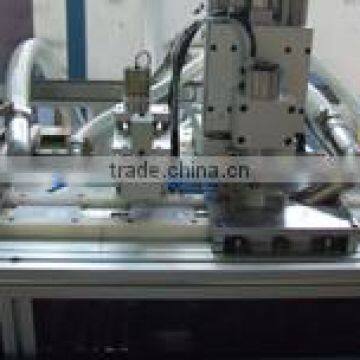

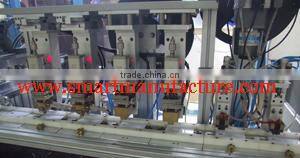

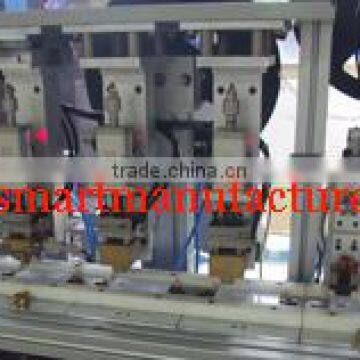

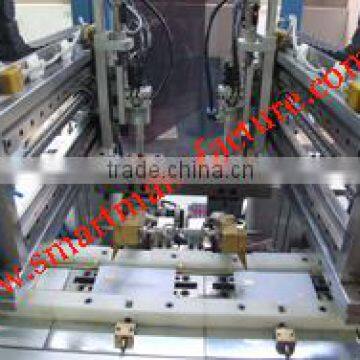

SMCCM-4 Full Automatic Contact Smart Card Milling and Chip Implanting and Testing Machine
It's full auto load cards one by one for milling, air vacuum dedusting, chip punching and implanting, hot laminatin, cold lamination, finished chip card testing.
1. Integrating with card milling, module testing, laminating, and module implanting.
2. Specialized fixture design for card centering system, protecting the milling depth from the influences of the card thickness and dimension.
3. Including four standard module milling programs fitting to different requirements with parameters modification conveniently.
4. X and Y the two separated milling stations can mill different profiles at the same time, or individually. It settles the difficult problem of adjusting the center place on two stations while milling
5. Z-Axis moving is realized through guide and ball screw driven by high precision servomotor, to provide the accurate milling depth. Special tool changing program make tool changing is fast and convenient.
6. Depth detection device ensures the eligible rate during milling by rejecting faulty cards.
7. Film loading is controlled by serve motor with sensor detection. Faulty module can be distinguished automatically.
8. Special design and several press heats make a better lamination effort with fewer bubbles. It is easy to change hot press heats.
9. Servo motor working with high precision guider and lead screw makes module transfer more stable and reliable. Module transfer position can be changed easily.
10. Special design for hot press station makes sure module sticking to plastic card tightly. It is convenient to change the hot pressers.
11. Cards transferred through belt driven by servomotor ensure the safety and stability of the machine.
12. Personalized software design. Machine can be empty automatically and sample cards freely.
13. ATR test system is used to monitor production.
14. Special feeding design avoids unloading double cards caused by static electricity.
| Card Size | 85.6mm*54mm |
| Card Thicness | over 0.76mm |
| Control Method | PLC, Touch Screen, Computer, Servo System |
| Voltage Input | 380V 50/60Hz |
| Power | 2KW |
| Air Supply | 0.6MPa 120Liter/minute |
| Servo Precision | X and Y = 0.0125mm |
| Working Efficiency | 3500pcs card per hour |
| Packing Size | 1300mm*880mm*1900mm |
| Net/Gross Weight | 850KGS/950KGS |
