3 process production machines cnc router for wood working
/v_show/id_XMTM5NzY0NjcxMg==.html?from=y1.7-1.2 sample of video
application:
Furniture:ideally suitable for processing cabinet door, wardrobe,wooden door, solid wood furniture, panel wood furniture, windows, tables and chairs, etc.
Other wooden products: stereo box, computer desk, musical instruments, etc.
Well-suited for processing panel, insulating materials, plastic, epoxy resin, carbon mixed compound, etc.
Decoration: acrylic, PVC, density board, stone, organic glass, soft metals like aluminum and copper, etc.
Description |
Parameter |
X,Y Working Area |
1300x2500x200mm |
Table Size |
1440×3040mm |
Resolution |
0.01mm |
Lathe Structure |
Seamless welded steel structure, better than cast iron one |
X,Y Structure |
Rack and pinion, gear drive, Taiwan Hiwin H25 square guide rails |
Z Structure |
Germany-made rolling ball screw, Taiwan Hiwin H25 square guide rails |
Max. Idling Speed |
45m/min |
Spindle |
Italy HSD air-cooling or domestic air spindle(4.5KW,3.5 KW) |
Spindle Speed |
0-24000r/min, variable speed |
Working Voltage |
AC380V/220V |
Motor and driver |
YASKAWA/leisai |
Working Mode |
Servo |
Command |
G code (nc,mmg,tap etc),dxf,plt |
Operating System |
DSP control system/SYNTEC/mach3/NCstudio |
Diameter of Cutter |
φ3.175-φ12.7 |
Cooling Mode |
Air-cooling |
Dust-collect Function |
Yes |
Work Holding |
Vacuum table |
Tool Magazine |
Linear-style auto-tool changer system with 6 pieces of tools |
Net Weight |
1500KG |

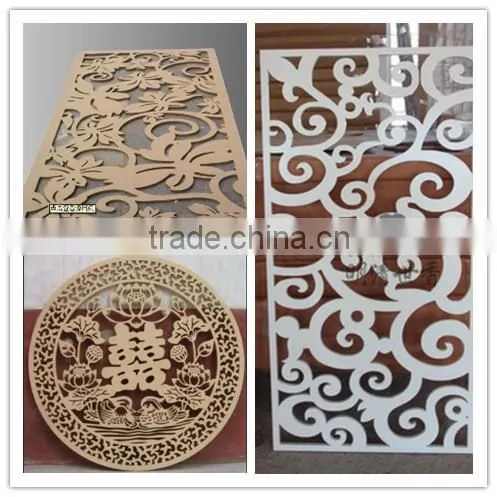

Hollow out sample

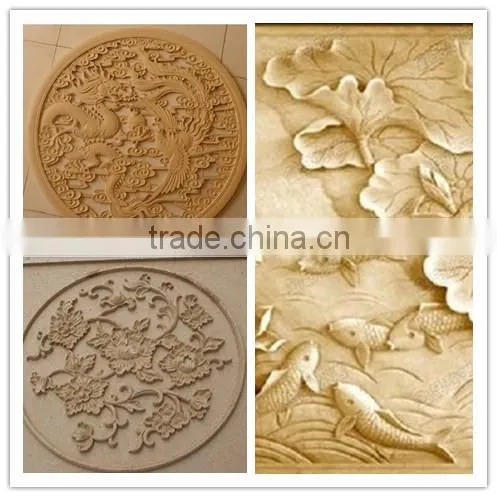

relief sample

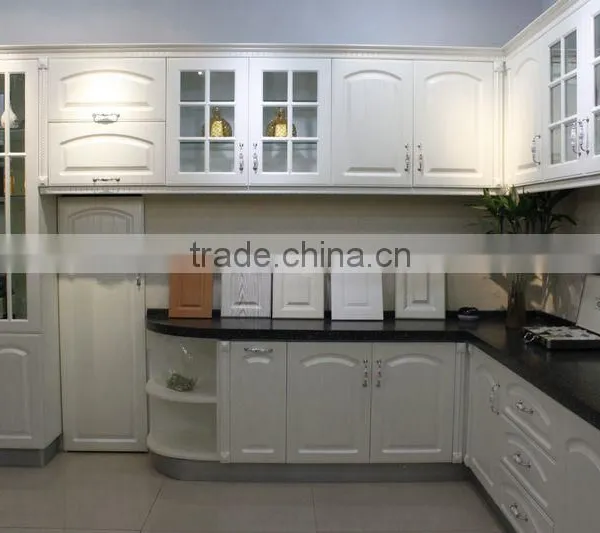

the cabinet door sample

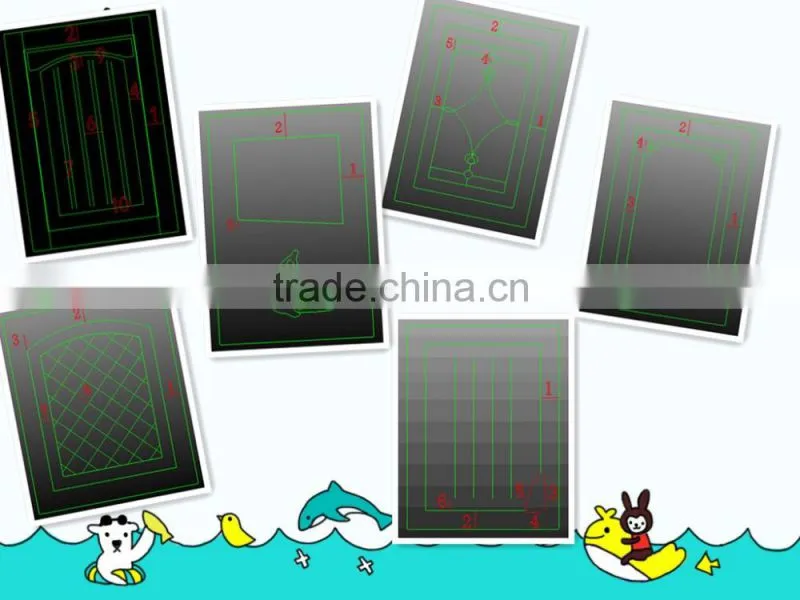

if you are a cabinet door manufactor,you can select the software-alphacam,the software has a fuction what can automatic creat nc file,the software has a door library,just like follows ,you can change the parameters of door in the software.
