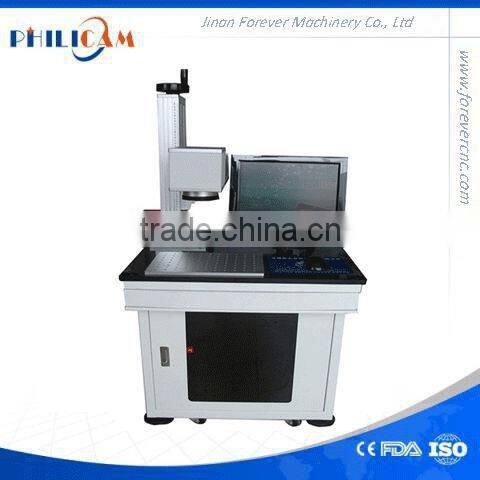

High efficiency fiber laser marking machine from china
Feartures:
1) Integrated design, small size(There is one Cabinet and portable optional)
2) Fewer supplies , machine , low power consumption , power consumption
3) Internal air cooling systems, reducing energy consumption, 100,000-hour maintenance-free.
4) High electro-optical conversion efficiency, maintenance-free, high stability, easy operation.
5) USB interface output control, can receive a variety of file formats (such as PLT,BMP,JPG).
6) Enable barcodes, text graphics, regular and irregular serial number and other marking.
7) To play black ,deep engraving and rotary marking
Application:
Mobile button,plastic transparent, electronic, IC, tools,communication products,bathing products,tool accessories, glasses and watches,jewelry,button decoration for boxes and bags,coolers,stainless steel products and so on.
Parameters:
NO |
Model |
FLDJ10W |
1 |
Laser power |
Fiber 10W air cooling |
2 |
Working area |
100*100mm |
3 |
Laser Wavelength |
1064nm |
4 |
Response time |
0.5ms |
5 |
Frequency of pulse |
20-100KHz |
6 |
Max marking depth |
≤0.4mm |
7 |
Marking speed |
≤7000mm/s |
8 |
Marking lines |
1-10 lines(in the marking area) |
9 |
Minimum line width |
0.1mm |
10 |
Minimum character |
0.15mm |
11 |
Repeatability accuracy |
±0.002mm |
12 |
Resolution ratio |
0.1mm |
13 |
Marking content |
Text,pattern,date,bar code,etc |
14 |
Operation system |
Microsoft Windows XP or Windows 2000 |
15 |
Control software |
EZCAD control software or laser2.1 marking control software |
16 |
Graphic format supported |
bmp, jpg, gif, tga, png,tif,ai,dxf,dst,plt,etc. |
17 |
Unit power |
≤1.2KW |
18 |
Operation temperature |
5°C-40°C |
19 |
Relative moisture |
≤ 90%,no fog |
20 |
Supply Voltage |
220V/50Hz/10A |

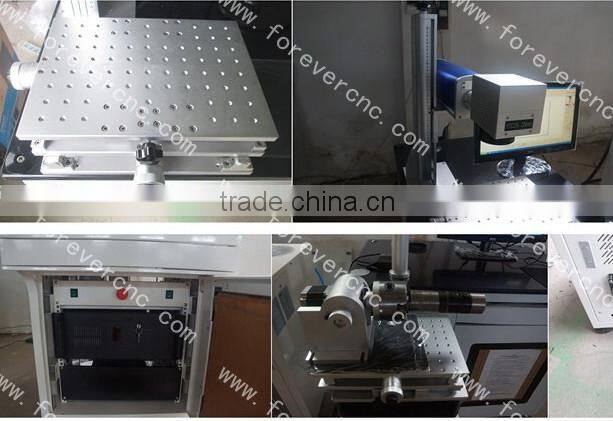

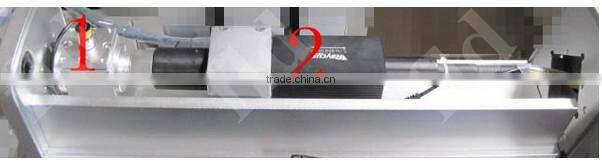

Machine details of direct part marking :

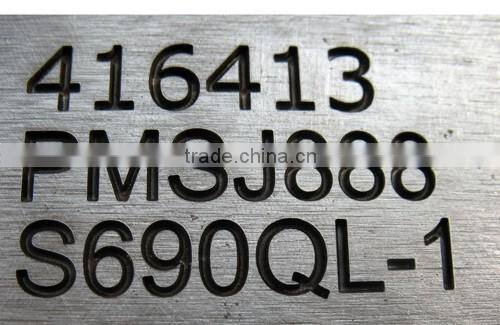

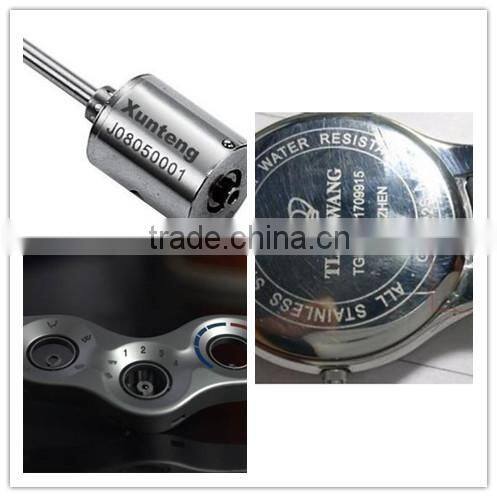

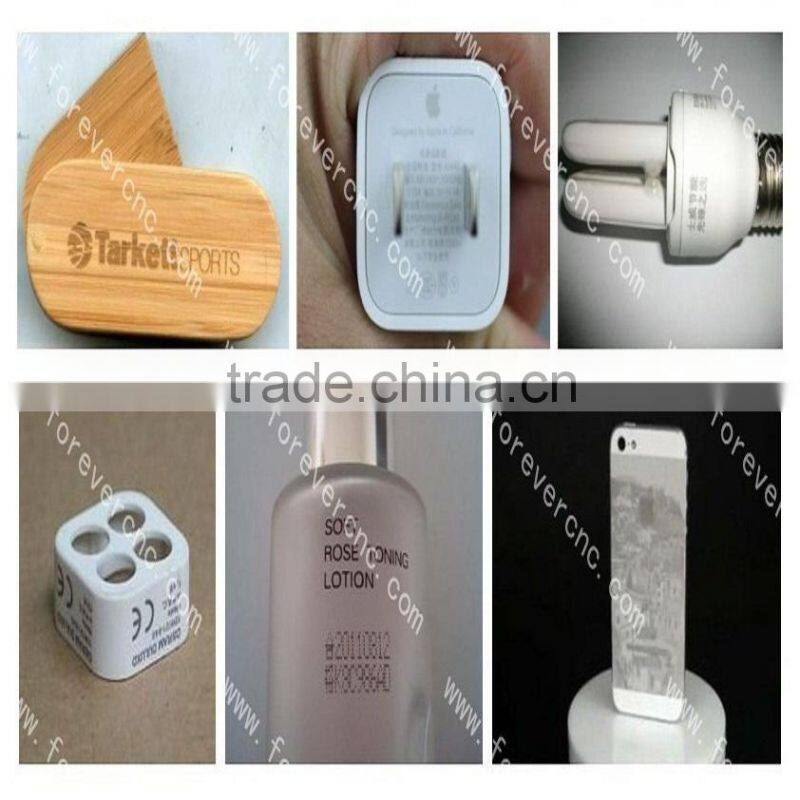

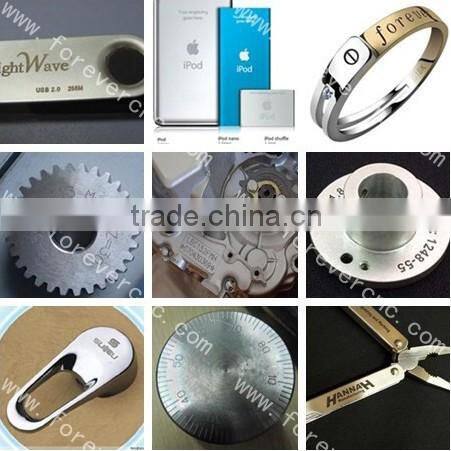

Samples
After sale service
1. One year quality guaranty. Lifetime maintenance free of charge.
2. Free training course at our plant.
3. We will provide the consumable parts at an agency price when you need replacement. 4. 24 hours on line service each day, free technical support.
5. Our staff can be sent to your company to install or adjust if necessary.
Why philicam?
1. Philicam product is widely used in almost all the materials you can think of.
2. Philicam company is specialized in CNC Router and laser marking machine manufacturing and selling .
3. Philicam machine with high precision and excellent reputation is the most reliable product you can choose.
4. Philicam company has all kinds of machines in store, the delivery time is much shorter than other companies.
5. Philicam company has international technical service office and provides 24 hours online services and technical supports for customers
Payment terms:
A:T/T:30% T/T deposite,70% before shippment.This is the most convinent payment terms for international trade.
B: Escrow of alibaba.It is a third party payment terms,
1.) you pay money to alibaba,
2.) we prepare your machine production
3.) After your production,we would tell you timely,then you click the button"agree to ship",
4.) We ship it
5.) After dispatch,we show documents to Alibaba,Alibaba would ask your agreements for money release to our company.
6 ) After your agreement,Alibaba would pay your money to us.
