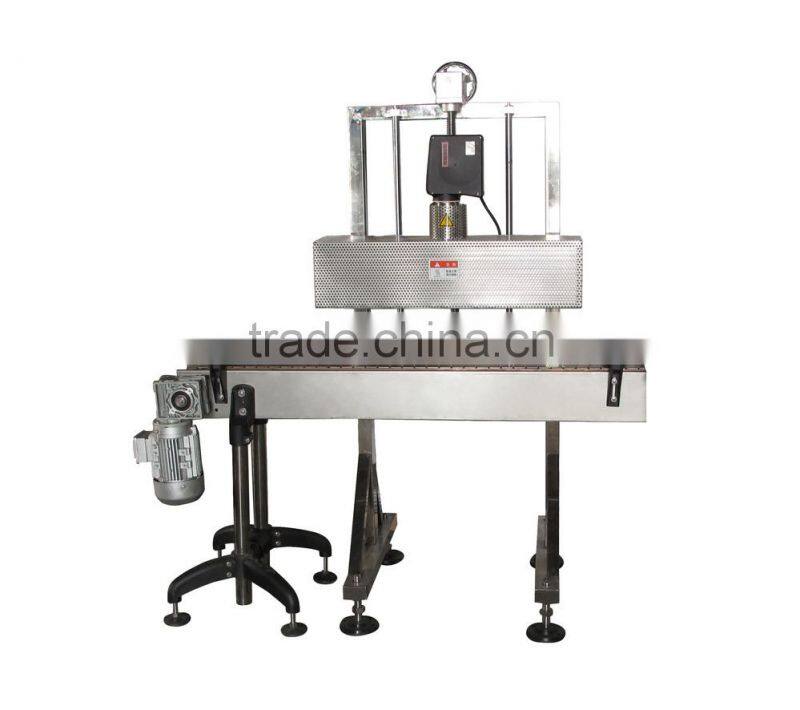

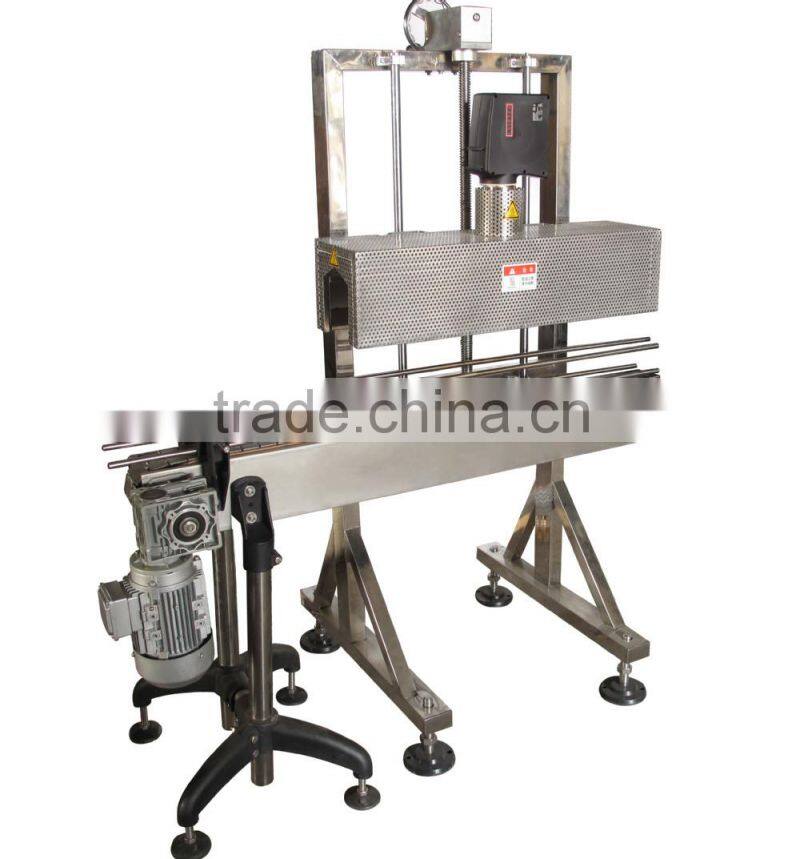

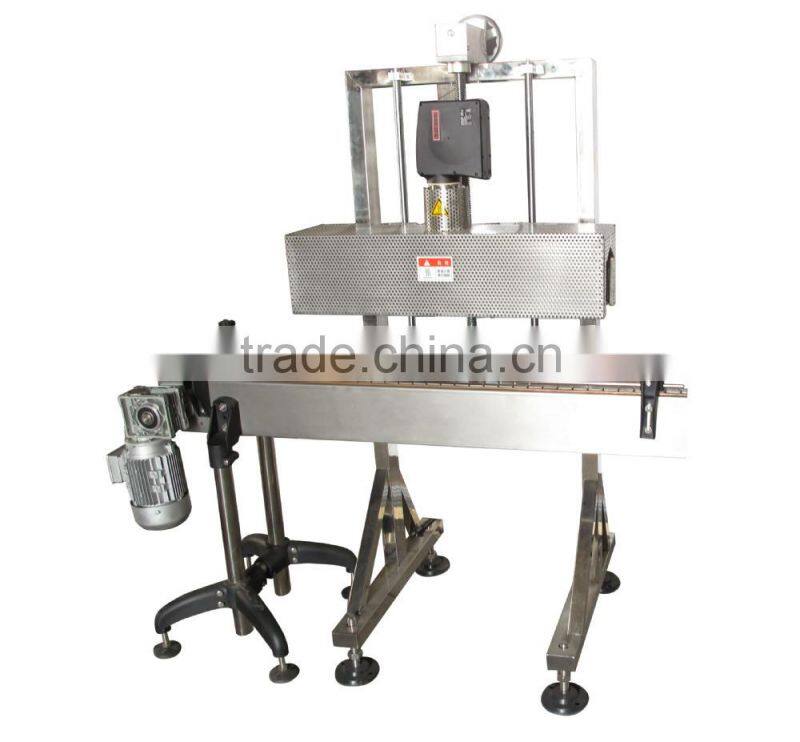

Help CenterHigh-performance Electric Heating Shrinking Tunnel
Related Products
-
High-performance Lipstick Cooling TunnelNegotiableMOQ: 1 Set -
High Quality and Durability Chocolate Cooling Tunnel/cooling Groove/cream Cooling TunnelNegotiableMOQ: 1 Set
-
Freezing Tunnel (CT-450)NegotiableMOQ: 1 Set
-
High Quality and Durability Cooling TunnelNegotiableMOQ: 1 Set
-
Lipstick Freezing TunnelNegotiableMOQ: 1 Set
Model |
Shrinking tunnel |
Voltage |
220/380v(Optional) |
Power supply |
7kw |
Dimension |
1200*400*1500mm |
Capacity |
0~10m/m |
Conveyor motor |
AC90W/220V |
Conveyor belt load |
15kg |
Label material |
PP,PE,POF,PVC,PETG,PLA |
Hot air blower brand |
LEISTER (Switzerland) |
Weight |
90kg |
|
1. This machine has an independent hoisting and moving frame which can adjust to chains of various heights used by current producers. 2. Convenient movement and positioning are guaranteed by the truckle and the foot-drive at the base of the frame. 3. The lightweight and durable hoisting system consists of screw mandrel and guide pulley and the heating shrinking wrapping machine case is mainly made of interior frame, thermal insulation layer and the exterior protecting shield. 4. A survey hole of thermocouple affiliated to temperature at the exact time. When the temperature increase or reduces, the temperature instrument controls on-off relay which stops the tubular electrum heating element or reheats it, thus maintains the required shrinking temperature in the duct and assures consistent label shrinkage, achieving the best effect. |
This shrinking tunnel is an exclusive shrinking device for plastic-film labels. It uses a small fan for heating by blowing hot air on the label through correspondent openings via a special air duct. The label then shrinks with the thermal flow. Relying on an electrical heating unit – a finned electrical heating duct –the heat energy can be fully utilized. On the one hand, the small fan can save energy; on the other hand, it won’t suck the label as conventional fans do. So it is more suitable for this industry. |
|
Squarestar Machinery was established in Shanghai, PR China in 1985, since that, we have dedicated to packaging machinery manufacturing and design for nearly 30 years. During so long time, we have extended our business to become a supplier of complete packaging line including bottle washer, unscrambler, filling and counting machine, inserting machine, labeling machine, capping machine, sealing machine, cartoning machine and so on. We believe that we possess rich experience and ability to meet a variety of requirements of you. Besides, we also provide very good after-sales service and solution of technology problem. We also provide training, on-site installation, documents support. We could make customized products based on different requirements of different customers. |
If this shrinking tunnel is the product you are looking for, pls contact us and ask for more detail information about it, you could also put forward some particular requirements about the machine you need exactly because we possess rich experience in customized business. |
|
1. One year warranty, free charge for spare parts in warranty 2. Engineer available to service overseas 3. Good quality competitive price. ISO9001:2008 and CE certificate 4. You could ask for help about technical problem from our engineer through phone call orinternetany time for free. |
|
Q1: As an oversea buyer, I am wondering whether you will send your repairman or engineer to our country to help us to solve our problem after one year warranty. A1: Of course, we will always do our best to solve your problem whatever in one year warranty or not, and you need not to pay for unnecessary, we will provide a reasonable repair price to satisfy you.
Q1: Are you a factory or an agent? A1: We are an OEM, we always design and manufacture our products ourselves, so we could provide satisfactory technical and after-sales service. You could pay a visit to our factory any time if you are willing to.
Q3: How does your factory do regarding quality control? A3:Quality is priority! Every worker keeps the QC from the very beginning to the very end, all material we used are meet GB standard, skillful workers care every detail in handing each process, Quality control department specially responsible for quality checking in each process. |
