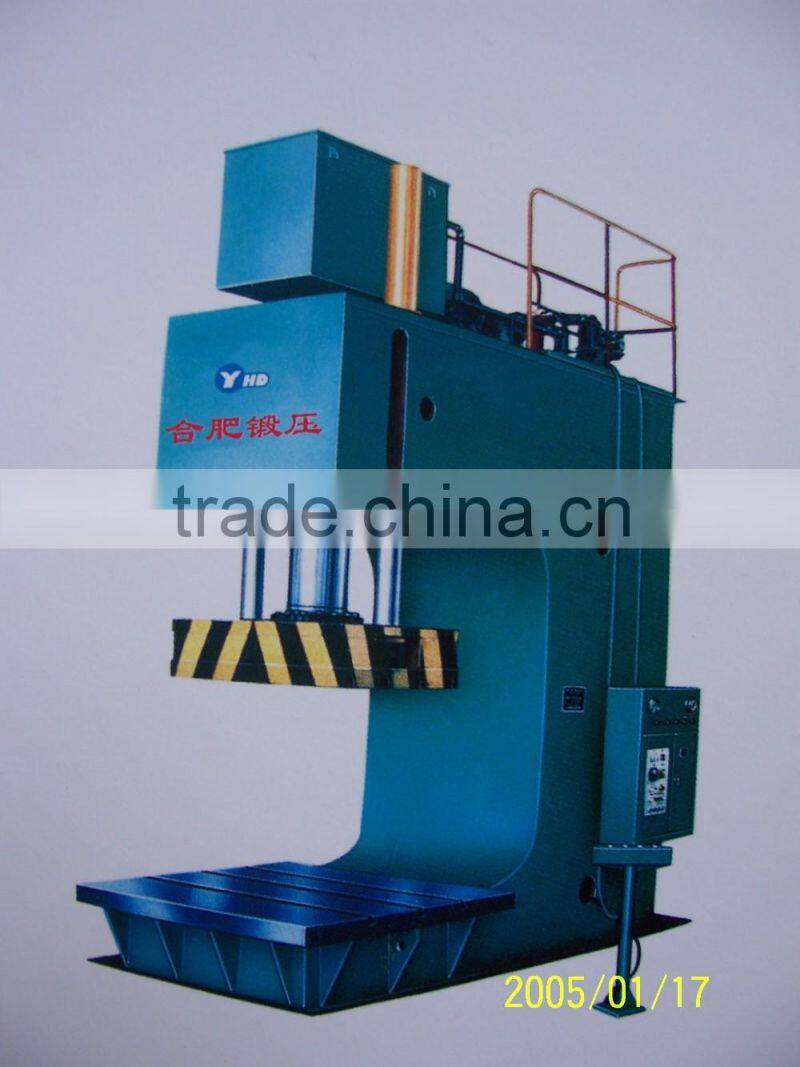

Custom Single Column Hydraulic Machine
1. It adopts optimized strucure, C type single arm frame strucure, has the feature such as good reliable, simple structure and easy operation.
2. The frame is entirely welded with steel plates and treated to relive sress by tempering.
3. Cartridge valve equipped for hydraulic control system, reliable, durable, and less hydraulic shock, shorter connction pipeline and fewer release points.
4. Hydraulic system adopt pressure pre-release device, low impact of hydraulic pressure.
5. Independent electrical control, reliable, audio-visual and convenien for maintenance.
Y41 200 single column hydraulic press parameter:
| NO | ITEMS | PARAMETER | UNIT | |
| 1 | Rated pressure | 2000 | kn | |
| 2 | Max. hydraulic pressure | 25 | mm | |
| 3 | Stroke of slide | 700 | mpa | |
| 4 | Daylight | 1000 | mm | |
| 5 | Throat depth | 450 | mm | |
| 6 | Speed of slide | Empty descending | 80 | mm/s |
| Pressing | 10-15 | mm/s | ||
| Return | 70 | mm/s | ||
| 7 | Oimensions of table | L-R | 900 | mm |
| F-B | 900 | mm | ||
| 8 | Table height above floor | 900 | mm | |
| 9 | Dimensions of dropping hole | mm | ||
| 10 | Motor power | 15 | kw | |
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
