Ball Mill / Ball Mill Design / Ball Milling

Ball Mill / Ball Mill Design / Ball Milling photo-1
US$ 1 - 99,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
sievo
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shanghai, China
Brand Name sievo
Model Number all models
Certification ISO9001:2000
Warranty one year warranty
After-sales Service Provided Engineers available to service machinery overseas

Specifications

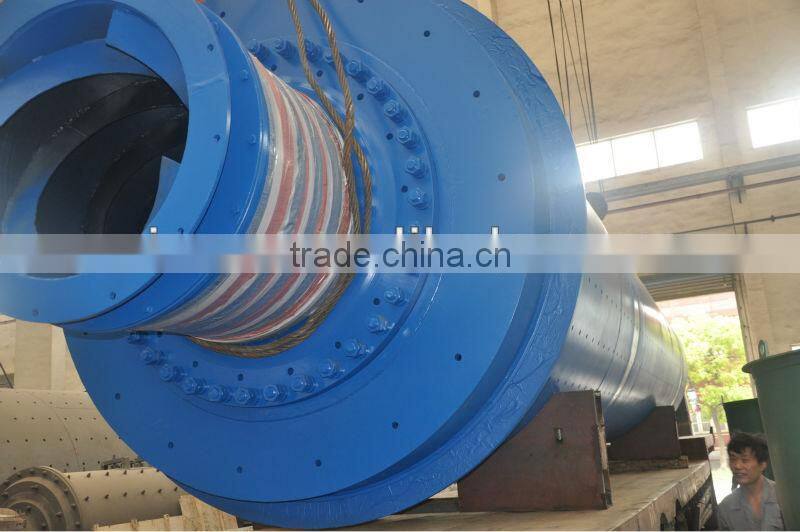

ball mill / ball mill design / ball milling
1 high working efficiency
2 long working life and low cost in energy


 Raw Mill

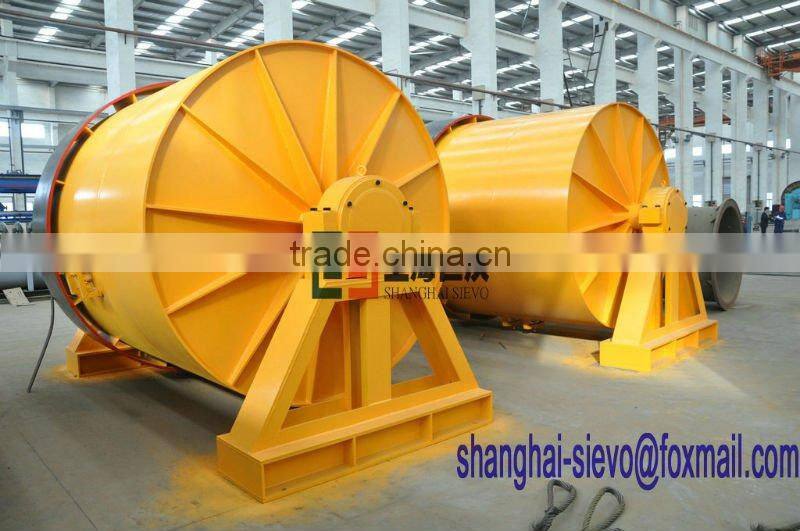

ball mill / ball mill design / ball millingball mill / ball mill design / ball milling



Why choose our company machine

We are manufacturer in Shanghai, China. Shanghai is known as the “Pearl of China”. It serves as the largest base of Chinese industrial technology, and the busiest container port in the world. The competition in this city is severe, only companies with ending technology, stable workforce, and effective cost management could survive. With 20 years of efforts and innovation, our company is now a leading brand in China.

Affordable, high-quality machines. Our highly competitive price relies upon our ability to minimize our costs, of which our competitors don’t.

1.    We are factory(NOT Dealer)

2.    We own our factory & Land (NOT Rent)

3.    Staff reside in factory(Stable Workforce)

Producing high-quality and reliable machines is always our first priority, because we know that our success depends entirely on the satisfaction of our customers.

We never give-up quality to save cost, instead we built our machines.

 Training & service.

 Training is FREE to every customer. Whenever you need us, for installation, maintenance, or proper use of our company machines, we will be right there for you. In addition, we provide one-year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.





Raw Mill Introduction:

The raw mill is mainly used in grinding the raw materials and end products in cement plant. It is also suitable for various ores and other materials metallurgy, mine, chemical and construction. Besides, it has two forms of milling, one is an open form, and another is a recycle close form equipped with powder concentrator. It is widely applied in many industries and has simple operation.

It has many advantages such as, strong adaptability, continuous production, large crushing ratio, easy to adjust the size of the products. And it is suitable for both dry production and wet production, also can allow the milling and drying processing simultaneously.



Structure features:



  1. The end cover and the quill shaft adopt monobloc casting
  2. The end cover and discharging system are streamlined to cut down wind resistance, enlarge the effective volume and make easy to discharge materials, increase the production.
  3. Single silo structure, and adopt different structure of liner plate in different section, ensure the high efficiency.Heat preservation measures ensure the drying ability reach 6%-8%
  4. Negative pressures; efficiently prevent the phenomenon of powder leaking.
  5. Reserved DCS interface; meet the demand of concentrated control.
Model Cylinder rotary speed Loading ball weight Input size Discharge size Capacity Motor power Weight
(r/min) (t) (mm) (mm) (t/h) (kw) (t)
Φ2200×6500 21 35 ≤25 0.074-0.4 14-26 380 52.8
Φ2200×7000 21 35 ≤25 0.074-0.4 15-28 380 54
Φ2200×7500 21 35 ≤25 0.074-0.4 15-30 380 56
Φ2400×4500 21 30 ≤25 0.074-0.4 18-45 320 65
Φ2400×8000 20 36 ≤25 0.074-0.4 20-48 410 81
Φ2700×3600 21 39 ≤25 0.074-0.4 19-75 400 83
Φ2700×4000 20 40 ≤25 0.074-0.4 20-78 400 85
Φ2700×4500 20 48 ≤25 0.074-0.4 22-85 430 89
Φ3200×4500 18 65 ≤25 0.074-0.4 29-140 800 137
Φ3200×5400 18 81.6 ≤25 0.074-0.4 30-180 800-1000 146
Φ3600×4500 17 88 ≤25 0.074-0.4 35-210 1000 190
Φ3600×6000 17 117 ≤25 0.074-0.4 38-240 1250-1500 220
Φ3600×8500 17 144 ≤25 0.074-0.4 45-260 1800 260



ball mill / ball mill design / ball milling
