19 inch Network Server Cabinet 800*1000mm Server Rack

Specifications

10-year professional manufacturer for network cabinet
1.Nice appearence
2.High quality
3.Competitive price
4.Best service

SP-SC-A Network Server Cabinet



Standard:  Comply with ANSI/EIA RS-310-D,IEC297-2,DIN41494;PART1,DIN41494;PART7, GB/T3047.2-92 and ETSI standard;



Description:

       1.Reliable structure(optional castors and plinth);

        2.Adjustable feet and heavy duty castors are available simultaneously, moving conveniently and fixing reliably;

        3.Baying together easily, quickly, effenciently,and firmly;

        4.High density vented front and rear doors, meeting the requirements of mechanical protection and ventilation;

        5.Optional cable entry on top cover and bottom panel. Front, rear doors and side panel can be removed facility, the bottom has the function of ventilation and rat-proof;

        6.Varies optional accessries, reliable quality;

        7.Optional products upon customization.



 Material:

        High quality SPCC cold rolled steel.



Thickness:

        1.The mounting profile: 2.0mm,

         2. Others: 1.2-1.5mm



Static loading capacity: 600-800kg



IP rating: 20



Surface treatment:

        degreasing,pickling,phosphating,powder coating



Color:

         RAL 9004(black)

         RAL 7044(grey)

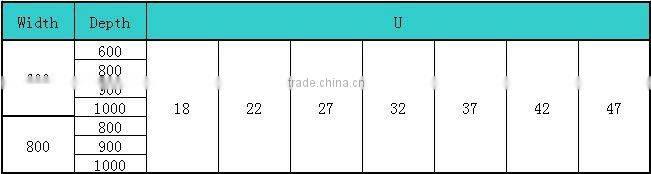

Size:

          Width:600mm,or 800mm

          Depth:600mm,800mm,900mm,960mm,1000mm

          Height: 18U,22U,27U,32U,37U,42U,47U.















Optional Doors:

* Tempered glass door

* Vented/perforated door

* Splitted door

* Door with nine folds





Package Model:

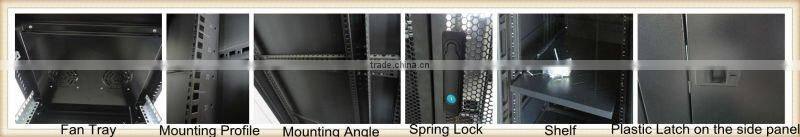

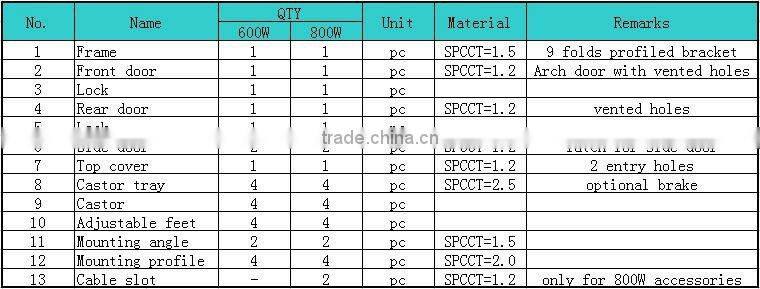

Standard Accessories List





 Specification and technical parameter
