Specifications
SP-WM-B 19'' Single Wall Mount Rack1.Nice appearence
2.Competitive price
3.High quality
4.Best service

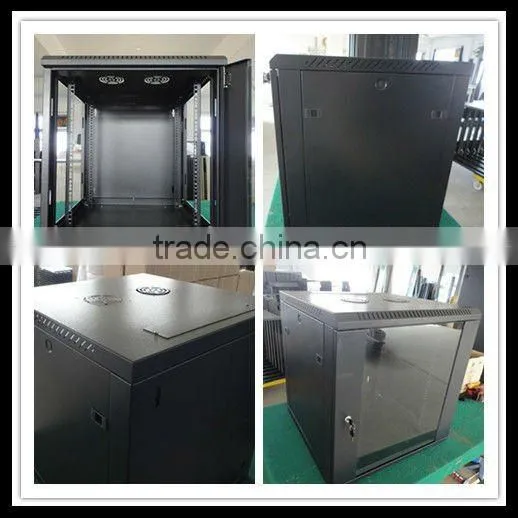

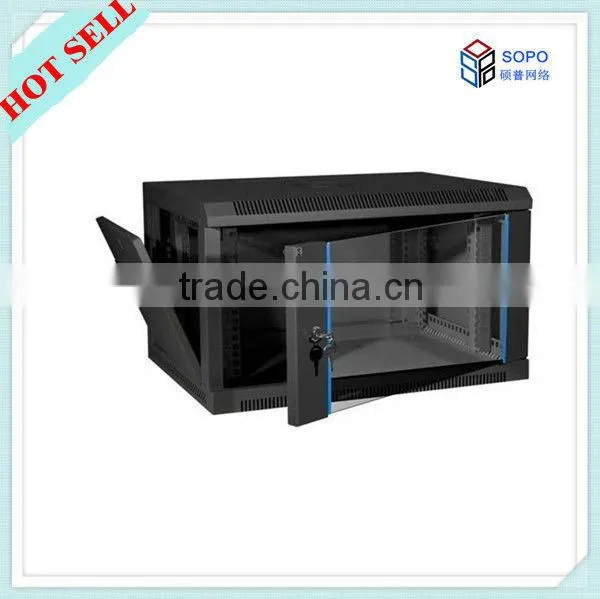

SP-WM-B Wall Mounted Cabinet
1.Comply with ANSI/EIA;RS-310-D;IEC297-2;DIN41491;PART1;DIN41494;PART7;GB/T3047.2-92 standard; compatible with 19'' international standard,metric system and ETSI standard.
2.Andvanced technology, precise size.
3.Reliable structure, static loading capacity:60KG
4.Quick and easy wall mounted, 19'' standard installation inside.

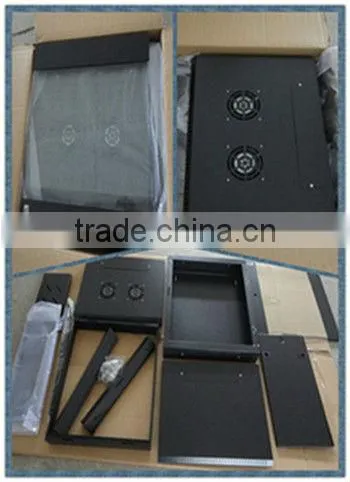

5.Can be flat pack, save transportation cost.
6.Optional 120mm size fan and standard fixed shelf can be installed in the cabinet.
7.Cable entry from top and bottom.
8.IP: Degree: IP20
Surface Finish:
Degreasing, pickling, phosphating, powder coating
Material and Thickness:
Mounting profile:1.5mm,others:1.2mm
SPCC cold rolled steel
Color:
RAL9004(Black)
RAL7044(Grey)
Acc.
Package:

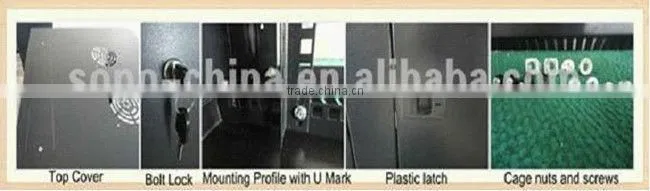

| Standard Accessories List | |||||
| NO. | Name | Qty | Nos | Material | Remark |
| 1 | Frame | 1 | Pcs | SPCCT=1.2 | Smoky glass door |
| 2 | Front door | 1 | Pcs | Small Round Lock,H=25mm | |
| 3 | Lock | 1 | Pcs | ||
| 4 | Side panel | 2 | Pcs | SPCCT=1.2 | |
| 5 | Quick open latch | 4 | Pcs | ||
| 6 | Mounting panel | 1 | Pcs | SPCCT=1.2 | |
| 7 | Fan Cutout Cover | 2 | Pcs | SPCCT=1.2 | |
| 8 | Cover | 3 | Pcs | SPCCT=1.2 | |
| 9 | Mounting Profile | 4 | Pcs | SPCCT=2.0 | 1 set below 12U |
| 10 | L Rail | 1/2 | Pcs | SPCCT=1.5 | |
| 11 | Cage nut and Screw M6 | Bitmap | Pcs | 10 pieces below 12U | |
| 12 | Cage nut and Screw M6*12 | Bitmap | Pcs | 10 pieces below 12U | |
| 13 | Bolt M8*70 | 2 | Pcs | Optional | |
| Standard Specification and Technical Parameter | ||||||
| Model | Width | Depth | Height | U | Packing Size | CBM |
| WM-C6404 | 600 | 450 | 278 | 4 | 665*515*315 | 0.1079 |
| WM-C6604 | 600 | 665*665*315 | 0.1393 | |||
| WM-C6406 | 600 | 450 | 367 | 6 | 665*515*405 | 0.1387 |
| WM-C6606 | 600 | 665*665*405 | 0.1791 | |||
| WM-C6409 | 600 | 450 | 500 | 9 | 665*515*535 | 0.2188 |
| WM-C6609 | 600 | 665*665*535 | 0.2366 | |||
| WM-C6412 | 600 | 450 | 650 | 12 | 665*515*685 | 0.2346 |
| WM-C6612 | 600 | 665*665*585 | 0.3029 | |||
| WM-C6415 | 600 | 450 | 775 | 15 | 665*515*810 | 0.2774 |
| WM-C6615 | 600 | 665*665*810 | 0.3582 | |||
| WM-C6418 | 600 | 450 | 908 | 18 | 665*515*945 | 0.3236 |
| WM-C6618 | 600 | 665*665*945 | 0.4179 | |||
| WM-C6422 | 600 | 450 | 1086 | 22 | 665*515*1122 | 0.3842 |
| WM-C6622 | 600 | 665*665*1122 | 0.4962 | |||
