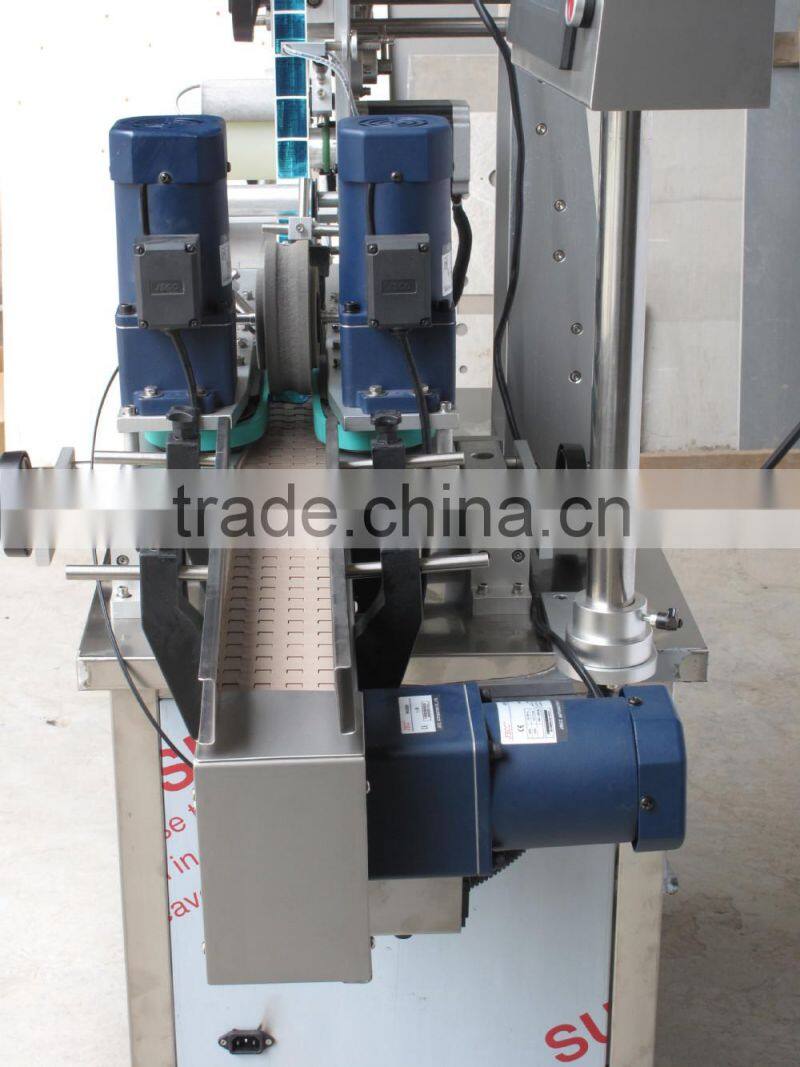

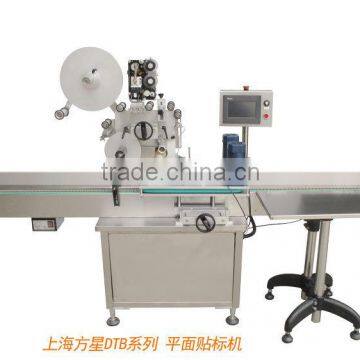

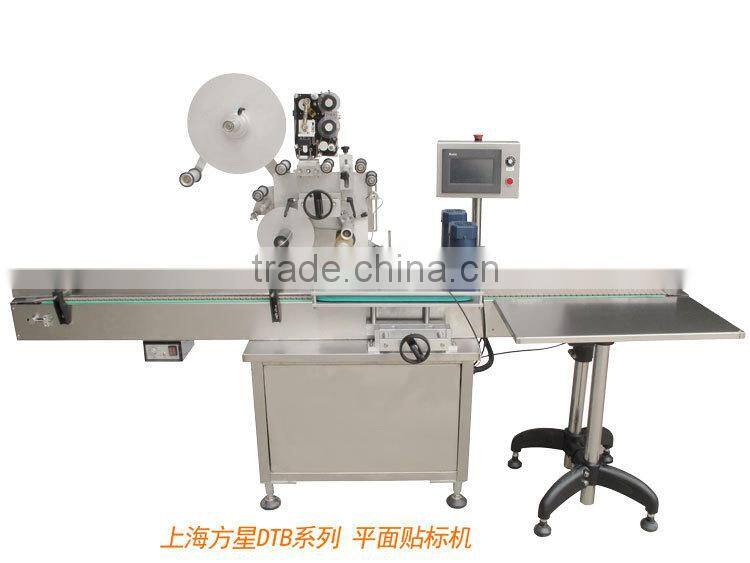

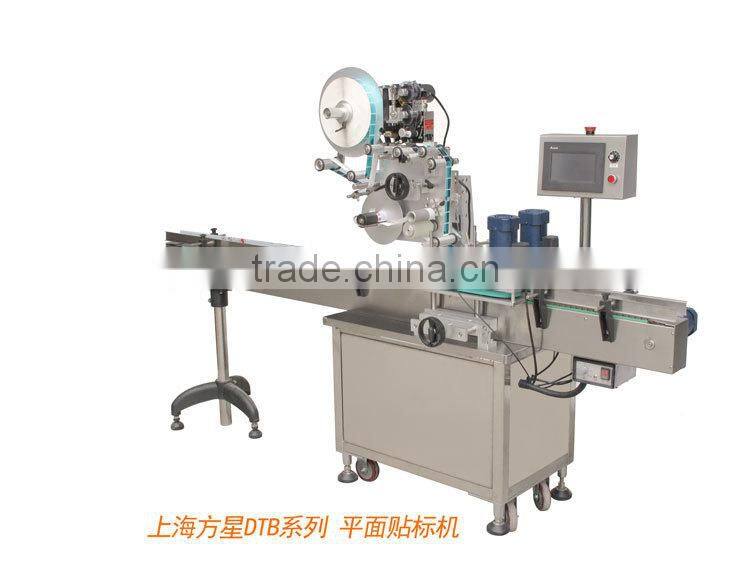

Help CenterHigh-performance Automatic Carton Labeling Machine
Related Products
-
High-performance Automatic Bottle Cap Labeling MachineNegotiableMOQ: 1 Set -
High-performance Automatic Bottle Top Labeling MachineNegotiableMOQ: 1 Set
-
Multifunctional High-precision Flat and Round Bottle Two Sides Labeling MachineUS$ 7,000 - 10,000MOQ: 1 Set
-
Multifunctional High-precision Flat and Round Bottle Double Sides Labeling MachineNegotiableMOQ: 1 Set
-
Multifunctional High-precision Flat Bottle Double Sides Labeling MachineNegotiableMOQ: 1 Set
| Model | carton labeling machine |
| speed | 80-150 pieces/minute |
Container width |
20-200mm |
Container length |
20-300mm |
Container height |
15-250mm |
Label size |
10-170mm |
Dimensions |
1600mm×600mm×1550 mm ( Length × Width × Height ) |
Weight |
280kg |
Electrical Requirements |
300W,220v, 50-60HZ |
Working direction |
Left → Right (or Right → Left) |
l Labeling speed up to 150 pieces/minutes ( according to the length of label )
l HIM & PLC Control System which is easy to control
l Simple Straight Forward Operator Controls
l On-Screen trouble description which is easy to solve
l Stainless Frame
l Open Frame design, easy to adjust and change the label
l Variable Speed with stepless motor
l Label Count Down (for precise run of set number of labels) to Auto Shut Off
l Stamping Coding Device (optional)
This carton labeling machine is suitable for flat or quadrate container widely such as cigarette, bag,
cards & toothpaste box etc. The machine is economical and easy to operate, equipped with
friendly HIM and PLCcontrol system. The performance is stable with a level off especially at the
top of container. The system easy changeover based the requirement.
Squarestar Machinery was established in Shanghai, PR China in 1985, since that, we have
dedicated to packaging machinery manufacturing and design for nearly 30 years. During so long
time, we have extended our business to become a supplier of complete packaging line including
bottle washer, unscrambler, filling and counting machine, inserting machine, labeling machine,
capping machine, sealing machine, cartoning machine and so on. We believe that we possess
rich experience and ability to meet a variety of requirements of you. Besides, we also provide
very good after-sales service and solution of technology problem. We also provide training,
on-site installation, documents support. We could make customized products based on different
requirements of different customers.
If this carton labeling machine is the product you are looking for, pls contact us and ask
for more detail information about it, you could also put forward some particular requirements about
the machine you need exactly because we possess rich experience in customized business.
1. One year warranty, free charge for spare parts in warranty
2. Engineer available to service overseas
3. Good quality competitive price. ISO9001:2008 and CE certificate
4. You could ask for help about technical problem from our engineer through phone call orinternet
any time for free.
Q1: As an oversea buyer, I am wondering whether you will send your repairman or engineer to
our country to help us to solve our problem after one year warranty.
A1: Of course, we will always do our best to solve your problem whatever in one year warranty
or not, and you need not to pay for unnecessary, we will provide a reasonable repair price to
satisfy you.
Q1: Are you a factory or an agent?
A1: We are an OEM, we always design and manufacture our products ourselves, so we could
provide satisfactory technical and after-sales service. You could pay a visit to our factory any
time if you are willing to.
Q3: How does your factory do regarding quality control?
A3:Quality is priority! Every worker keeps the QC from the very beginning to the very end, all
material we used are meet GB standard, skillful workers care every detail in handing each
process, Quality control department specially responsible for quality checking in each process.
