Model |
pepper bottle labeling machine |
Labeling speed |
80~100bottles/minute |
| Width of label | 25~60mm |
| Length of label | 25~100mm |
| Type of glue | Polyvinyl acetate emulsion |
| Labeling precision | ±1mm |
Power supply |
1.5kw,220,single phase,50~60Hz(Optional) |
Dimensions |
2064mm×900mm×937 mm ( L× W× H ) |
Weight |
500kg |
Working direction |
Left → Right (or Right → Left) |
l Labeling speed up to 5000 Bottle/Hour
l Simple Straight Forward Operator Controls
l Stainless Frame
l Open Frame design, easy to adjust and change the label
l Variable Speed with stepless motor
l Bottle feed-in and collection platform as optional part
l Label Count Down (for precise run of set number of labels) to Auto Shut Off
Major components:
Specification |
Brand |
Converter |
DALTA |
Main Motor (3 phase) |
SMC |
Series motor |
JSCC |
PLC |
DALTA |
Power switch |
Schneider |
Sensor |
OMRON |
Relay |
OMRON |
Stainless steel |
SS304 |
Electromagnetic valve |
AIRTAC |
Cylinder |
AIRTAC |

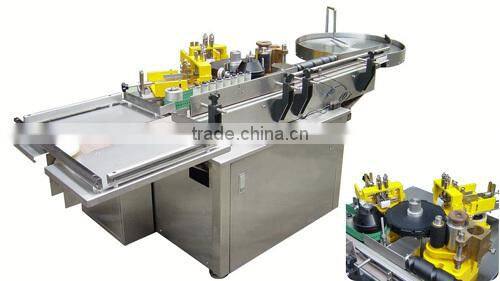

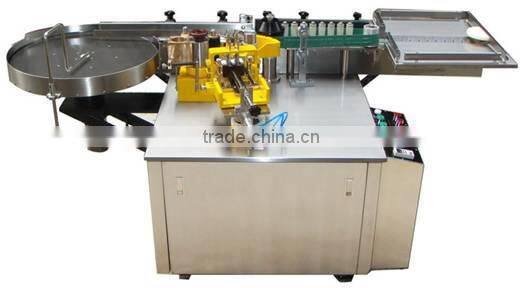

This pepper bottle labeling machine is very suitable for small cylindrical container such as glass, plastic, PET bottle with precut paper label. The machine is economical and easy to operate. The performance is stable with a level off and good looking labeling result. The control system adopts convert motor system, the in line conveying bottle, supplying glue and label automatically. This automatic labeling system is ideal for food & beverage, medical industry etc. |
Squarestar Machinery was established in Shanghai, PR China in 1985, since that, we have dedicated to packaging machinery manufacturing and design for nearly 30 years. During so long time, we have extended our business to become a supplier of complete packaging line including bottle washer, unscrambler, filling and counting machine, inserting machine, labeling machine, capping machine, sealing machine, cartoning machine and so on. We believe that we possess rich experience and ability to meet a variety of requirements of you. Besides, we also provide very good after-sales service and solution of technology problem. We also provide training, on-site installation, documents support. We could make customized products based on different requirements of different customers. |
If this pepper bottle labeling machine is the product you are looking for, pls contact us and ask for more detail information about it, you could also put forward some particular requirements about the machine you need exactly because we possess rich experience in customized business. |
|
1. One year warranty, free charge for spare parts in warranty 2. Engineer available to service overseas 3. Good quality competitive price. ISO9001:2008 and CE certificate 4. You could ask for help about technical problem from our engineer through phone call orinternet any time for free. |
|
Q1: As an oversea buyer, I am wondering whether you will send your repairman or engineer to our country to help us to solve our problem after one year warranty. A1: Of course, we will always do our best to solve your problem whatever in one year warranty or not, and you need not to pay for unnecessary, we will provide a reasonable repair price to satisfy you.
Q1: Are you a factory or an agent? A1: We are an OEM, we always design and manufacture our products ourselves, so we could provide satisfactory technical and after-sales service. You could pay a visit to our factory any time if you are willing to.
Q3: How does your factory do regarding quality control? A3:Quality is priority! Every worker keeps the QC from the very beginning to the very end, all material we used are meet GB standard, skillful workers care every detail in handing each process, Quality control department specially responsible for quality checking in each process. |
