Help CenterMultifunctional Pulley Type Wire Drawing Machine
Related Products
-
Nail Production Line (discount)US$ 2,000 - 5,000MOQ: 1 Set -
Automatic Nail Making Machine With High CapacityUS$ 2,000 - 5,000MOQ: 1 Set
-
Wire Nail Making MachineUS$ 2,000 - 5,000MOQ: 1 Set
-
Scrap Steel Bar Automatic Nail Making Machine With High CapacityUS$ 2,000 - 5,000MOQ: 1 Set
-
Mingyang High Glory CE Approved Scrap Meatal /popcan Shredder!US$ 3,950 - 23,568MOQ: 1 Set
Specifications
pulley type wire drawing machine1.draw wire from 6.5 to 2.0mm
2.fully automatic
3.one year guarantee
4.easy operation

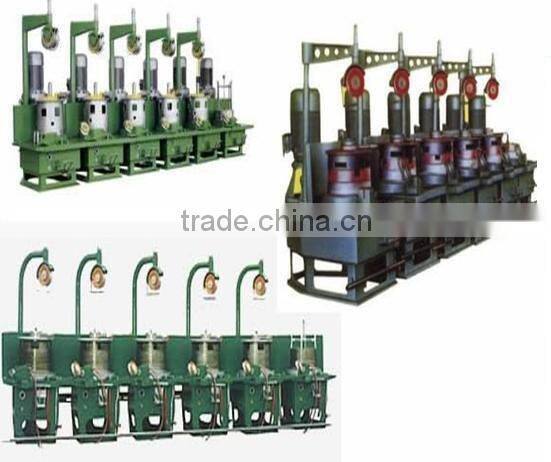

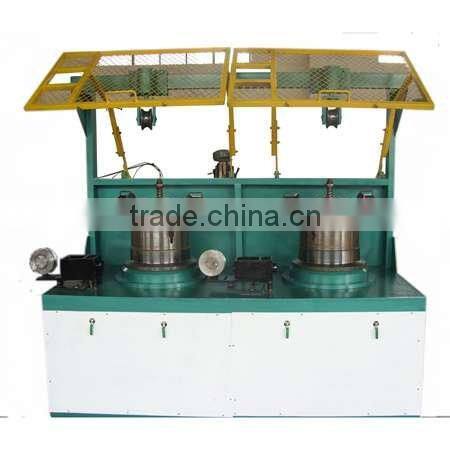

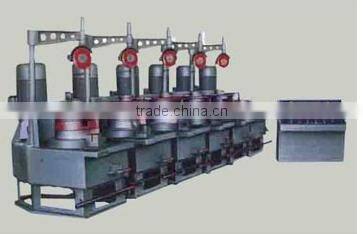

multifunctional pulley type wire drawing machine
Introduction:
Wire drawing machine have been widely used in wire drawing machine industry. Wire drawing machine has wide applications in various field. It can be used to draw the low carbon, medium carbon, high carbon wire and also copper and aluminum wire. This machine is mostly used for drawing all kinds of steel wires, aluminum and copper etc, This type machine is suitable for wooden screws, electric lead, copper rope and spring industries. it's most suitable to draw fine wires in batches in such manufacturing industries as bolts, nails, conducting wires for electrician use, steel wires and springs, etc. Wire drawing machine has wide adoptability, is an ideal wire drawing machine for you to convert into production
With the adoption of electric control, it has the features of easy operation, low noise, high efficiency Especially, Wire drawing Machine
Usage :
The pulley type continuous wire drawing machine has the characteristics of simple structure, low cost, and easy operation, and it is suitable for drawing a variety of medium and thin fiber material, especially for mild steel wire, galvanized iron wire, steel head wire, stainless steel wire, rubber hose steel wire, spring steel wire, rod welding wire and copper wire aluminum rod, The high speed pulley type aluminum wire drawing machine is used for drawing fine wire in electric wire and cable factory, copper material factory, aluminum wire factory and steel wire factory. The machine could process all kinds of nonferrous metal between Φ9.5mm and Φ0.9mm such as copper wire, aluminum wire, AL-MG alloy wire, rebar, steel wire and titanium wire, etc
Characteristics.
1.The pulley type continuous wire drawing machine has the characteristics of simple structure, low cost, and easy operation,
2.This wire drawing machine can draw the low carbon, medium carbon, high carbon wire and the material of wire can be copper, aluminum etc.
3. It adopts electric control, so it has the feature of easy operation, low noise, high efficiency. 4.Main body with base, drawing drum and drawing die box of close grain Cast Iron
5. Water Cooling arrangement provided inside the Drawing Drum and the Die Box
6.Phosphorous bronze gears with high carbon axle steel worms
7.Suitable for making Nail Wire from 8 mm or 6 mm input rods up to 2 mm
8.Also suitable for making Wire used to make Barbed Wire, Wire Mesh, etc.
9.Wet / Slip type Fine Wire Drawing Machine also available - Details on request

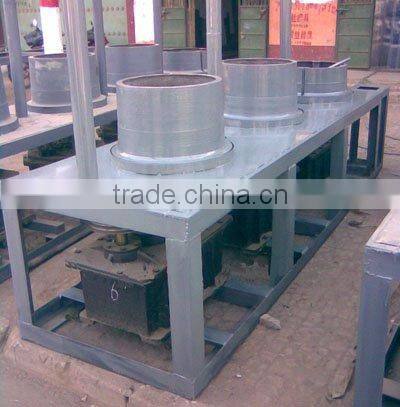

Structure:
The equipment consists of main reduction box. die casing, wheel frame, sash brace and electrical control system. The spinning drawing blocks are driven by JZT series motor, with gear coupling runs changeful gears to reduce speed. The drawing blocks are vertically fixed in sealed box body. The gear pairs are lubricated with oil.
Main Specification
Type |
LW-600 |
LW-560 |
LW-550 |
LW-450 |
LW-350(400) |
Dia. of block |
600 |
560 |
550 |
450 |
350(400) |
Material strength |
1150Mpa |
1150Mpa |
900Mpa |
1300Mpa |
1400Mpa |
Inlet wire dia. |
8-6mm |
6.5mm |
6.5mm |
3.6mm |
2.5mm |
Outlet wire dia. |
3-2mm |
1.8mm |
1.8mm |
1.1mm |
0.8mm |
Average Compressibility |
25% |
25% |
25% |
21% |
22% |
Total Compressibility |
85% |
92.33% |
92.33% |
90.7% |
87% |
Max. speed of block |
200m/min |
245m/min |
245m/min |
346.9m/min |
200m/min |
Total power |
37-30kw |
30-18.5kw |
22-15kw |
18.5-7.5kw |
11-5.5kw |
Weight |
4500kg |
2000kg |
2000kg |
1500kg |
1500kg |
Size of single block (mm) |
2000×1200×2600 |
1700×1100×2400 |
1520×820×2300 |
1520×820×2300 |
1200×660×2000 |
