Specifications
1.not easy to plug2.less dust pollution
3.low consumption,high efficiency
4.Length 1-5m
5.Capacity 1-200 m3/h

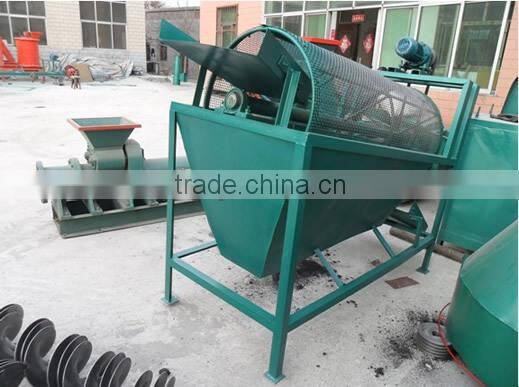

High quality and low dust drum sieve machine with CE ISO
Brief introduction of the high quality and liw dust drum sieve machine:
Drum screen, is consist of five parts as drum, frame, hopper, reducer and motor. After the broken stone into the drum, on the one hand, materials being screened along with the rotation of drum, on the other hand, the bigger materials flow forward along the direction of slope and be separated by the screen with different number of meshes. The different materials fall into different hopper and then be sent to different finished product stacks by manpower or belt conveyor.
Features of our machine:
1.Configured for classification, screening and grading
2.Simple structure, higher reliability, low investment cost
3.Large processing capacities
4.Smooth running, low noise
5.Easy maintenance
6.Unique screen design, higher capacities, longer screen life and less blocking of mesh screen
Working principle:
Material feeds into the trommel, is lifted up by the rotation and aerated as it falls back down. This action is repeated with each revolution along the length of the trommel. The finer material passes through the screen openings while the larger material tumbles towards its eventual exit at the rear of the trommel.
Main parameter:
Model |
Screen surface area |
Capacity |
The outer sieve diameter |
Length |
Power |
GTS-3 |
3m² |
10.4t/h |
Φ1200 |
3.5m |
1.5kw |
GTS-5 |
5m² |
13.8t/h |
Φ1200 |
4m |
2.2kw |
GTS-10 |
10m² |
27.8t/h |
Φ1400 |
5m |
4kw |
GTS-15 |
15m² |
47.7t/h |
Φ1500 |
6m |
7.5kw |

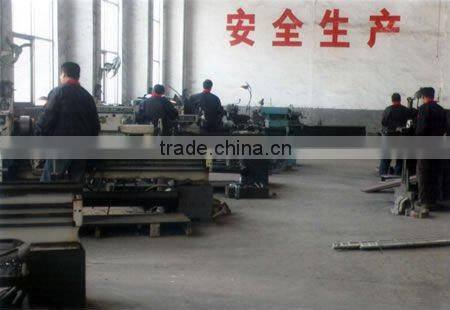

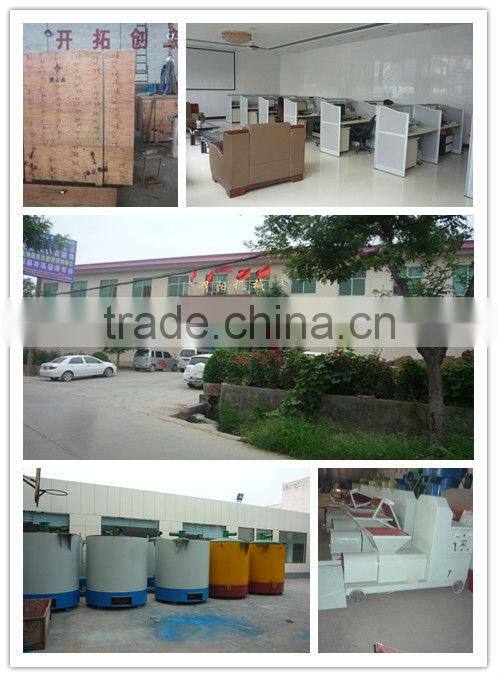

About us:
Gongyi Xiaoyi Mingyang Machinery Plant is located in Zhengzhou City, which is the biggest manufacturing base of charcoal making machinery.And we are the one of the earliest and largest manufacturers of renewable fuel & energy equipments and related machinery.
After 15 years development, now our company becomes an independent economic entity with the integration of science, engineering and trading department. our products and are widely accepted in both domestic and world market, and also exported to more than 30 countries, such as England, Russia, Sweden, Poland, Iran, Sudan, South Malaysia, Indonesia, Vietnam, etc.
So if you have any interest of the machine,contact me freely! Hope we can have good cooperation in near future!
