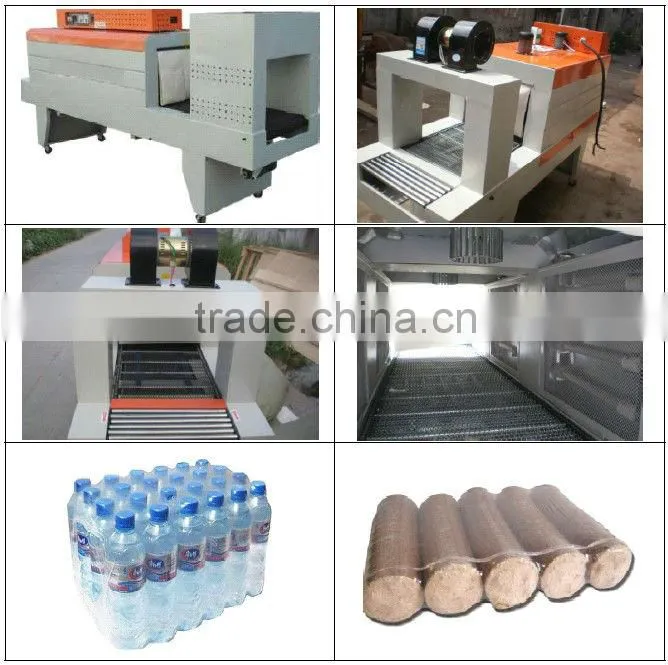

Far infrared contraction sawdust briquette packing machine
Introduction:
The machine adopts jet-propelled structure. It is applied to a large scale shrink package of software. biscuit. printing. pharmacy and floor. ceramics. drinking. beer etc industry. Temperature is control by capacity and strong power turbine heat-seal electrical machine. Delivery way is XR-SL or drum-type. It is applied to PVC.POF.PP.PE etc heat shrink film, especially suits PE heat shrink film.
Working introduction:

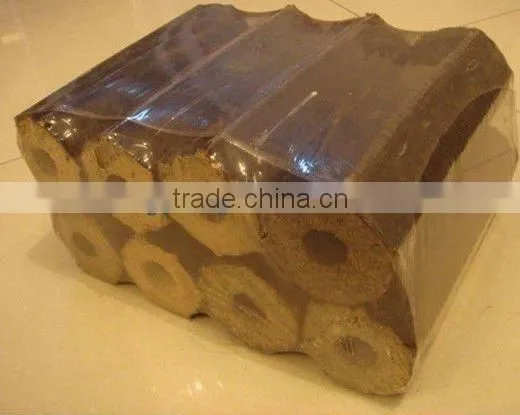

1. This machine uses contracting pellicle to pack the wood/charcoal briquettes, you have to send it by hand into the packing machine,
2. then the packing-material will be heated and contracted to enswathe the briquettes.
3. In this way, the briquettes can be airproof, damp proof, and pollution proof.
4. It also can prevent the wood briquette from the exterior concussion in some extent.
Technical parameters of the far infrared contracting pellicle packing machine:
Model |
DX-50 |
DX-60 |
Width of conveyor |
465mm |
565mm |
Length of shrinking stove |
1800mm |
1800mm |
The dimension of oven chamber |
500×400mm |
600×400mm |
The length of inlet |
200mm |
200mm |
The length of outlet |
800mm |
800mm |
Voltage and power |
380V 18kw |
380V 22kw |
Dimension of machine |
2500/2800×690×1075mm |
2500/2800×840×1375mm |
weight |
220Kg/250Kg |
270Kg/300Kg |
If there is any doubts about our machines, please feel free to contact me or clike send to me directly.
