Corrugated Cardboad Rotary Die Cutting Machine
US$ 10,000 - 20,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Apparel, Beverage, Chemical, Medical, Textiles
Packaging Type:
Belt, Bottles, Cartons
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Rotary Die-cutting MachineUS$ 10,000 - 150,000MOQ: 1 Set -
Slitting Creasing Corner-cutting SlotterUS$ 10,000 - 18,000MOQ: 1 Set
-
DF-800drying and Molding SystemNegotiableMOQ: 1 Set
-
DA-240D Double Layer Glue MachineUS$ 4,000 - 30,000MOQ: 1 Set
-
GL-240D Single Layer Glue MachineUS$ 4,000 - 30,000MOQ: 1 Set
Condition
New
Application
Apparel, Beverage, Chemical, Medical, Textiles
Packaging Type
Belt, Bottles, Cartons
Packaging Material
Plastic, Wood
Automatic Grade
Semi-Automatic
Driven Type
Electric
Voltage
380V 50HZ 3PH(depend on customers)
Power
7.5kw
Place of Origin
Hebei, China
Brand Name
Xinglong
Model Number
MQJ series
Weight
4tons
Dimension(L*W*H)
3500*1800*1800mm
Certification
CE certification
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
Corrugated rotary die cutting machine1.long life by using glue rubber
2.double roller cycle roll.

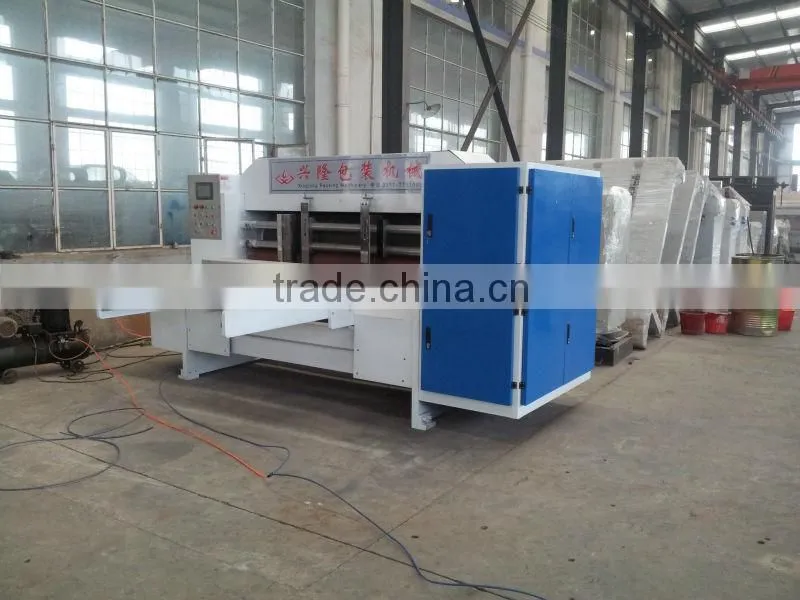

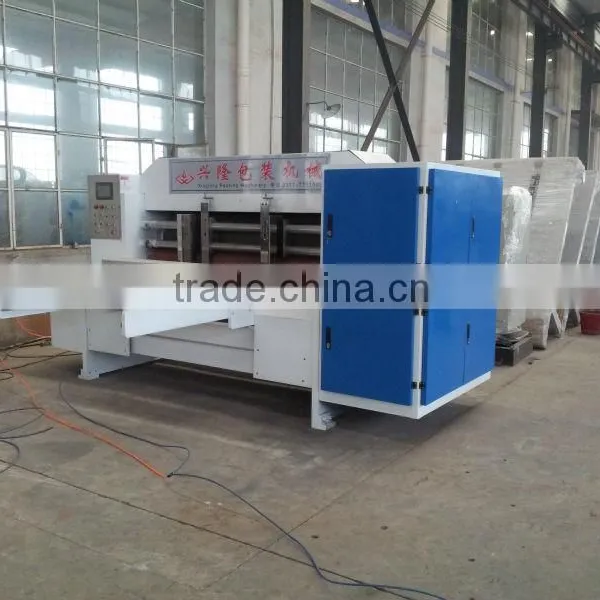

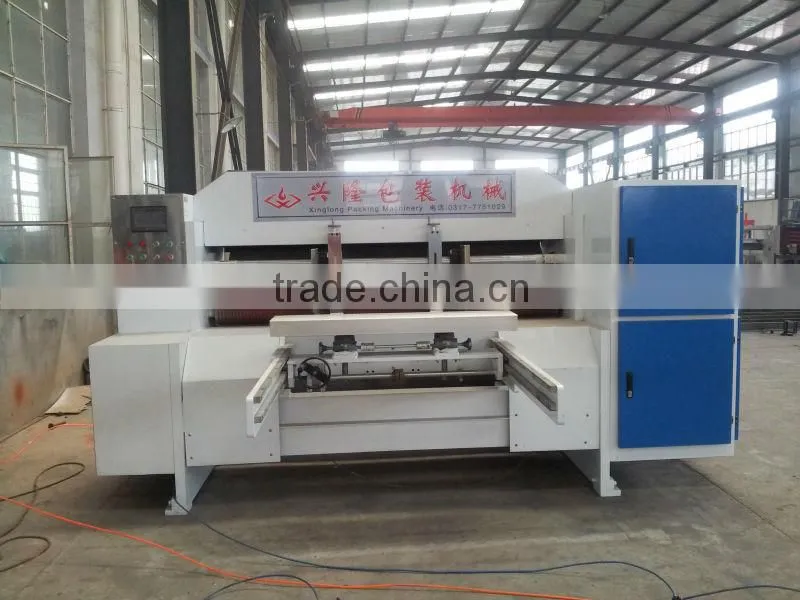

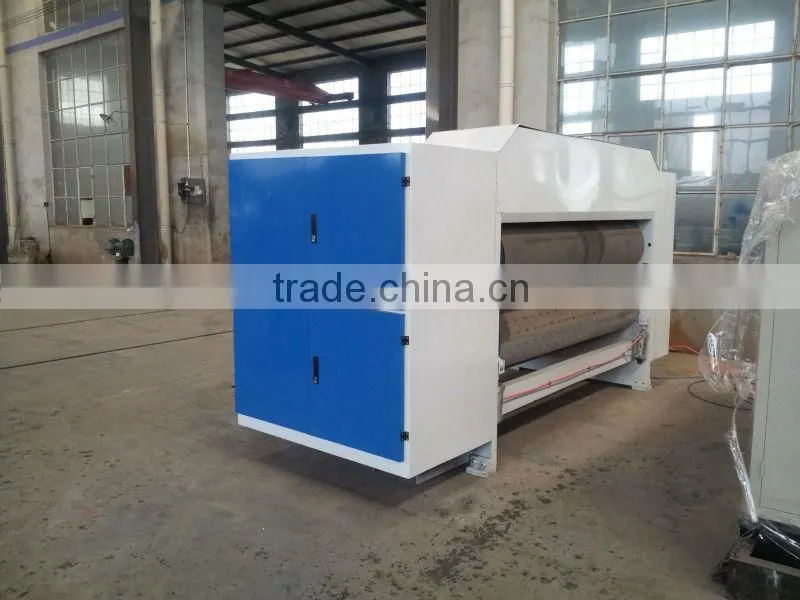

Corrugated cardboard rotary die cutting machine
•Use and characteristic:
•This machine adopt chain provide and double roller cycle roll, take carton piece though many working procedure of disport, roll line, cut horn, hit especial hole etc. It is ideal equipment of effect all processing carton piece working procedure one time. This machine has grind cut E style corrugating cardboard, glue roller line speed auto repair and glue sheath restore function. Grind roller 360°manual adjust. It has grind high nicety and operation convenience and glue sheath using long life and low cost.
type |
Max. size of paperboard(mm) |
Min. size of paperboard(mm) |
Die-cutting thickness(mm) |
Total power(kw) |
MQJ-1600B |
1600*1350 |
300*500 |
1-8 |
4.0 |
MQJ-1800B |
1800*1350 |
300*600 |
1-8 |
5.5 |
MQJ-2100B |
2100*1600 |
400*600 |
1-10 |
7.5 |
MQJ2400B |
2444*1600 |
400*700 |
1-10 |
7.5 |
Send Inquiry to This Supplier
Business Type
Manufacturer, Trading Company
Year Established
2009
Factory Size
10,000-30,000 square meters
Total Employees
51 - 100 People
