Best Price Floating Fish Food Pellet 22kw Screw Type Pellet Extruder With Factory Price

Best Price Floating Fish Food Pellet 22kw Screw Type Pellet Extruder With Factory Price photo-1
Best Price Floating Fish Food Pellet 22kw Screw Type Pellet Extruder With Factory Price photo-2
Best Price Floating Fish Food Pellet 22kw Screw Type Pellet Extruder With Factory Price photo-3
Best Price Floating Fish Food Pellet 22kw Screw Type Pellet Extruder With Factory Price photo-4
Best Price Floating Fish Food Pellet 22kw Screw Type Pellet Extruder With Factory Price photo-5
Best Price Floating Fish Food Pellet 22kw Screw Type Pellet Extruder With Factory Price photo-6
US$ 1,500 - 4,039 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
Mingyang
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Henan, China
Brand Name Mingyang
Model Number PH-95
Type Feed Pellet Machine
Voltage 380V
Power(W) 22+0.75kw
Dimension(L*W*H) 1.9*1.25*0.95m
Weight 860 kg
Certification ISO9001
Warranty 12 Months
After-sales Service Provided Engineers available to service machinery overseas
Product Description

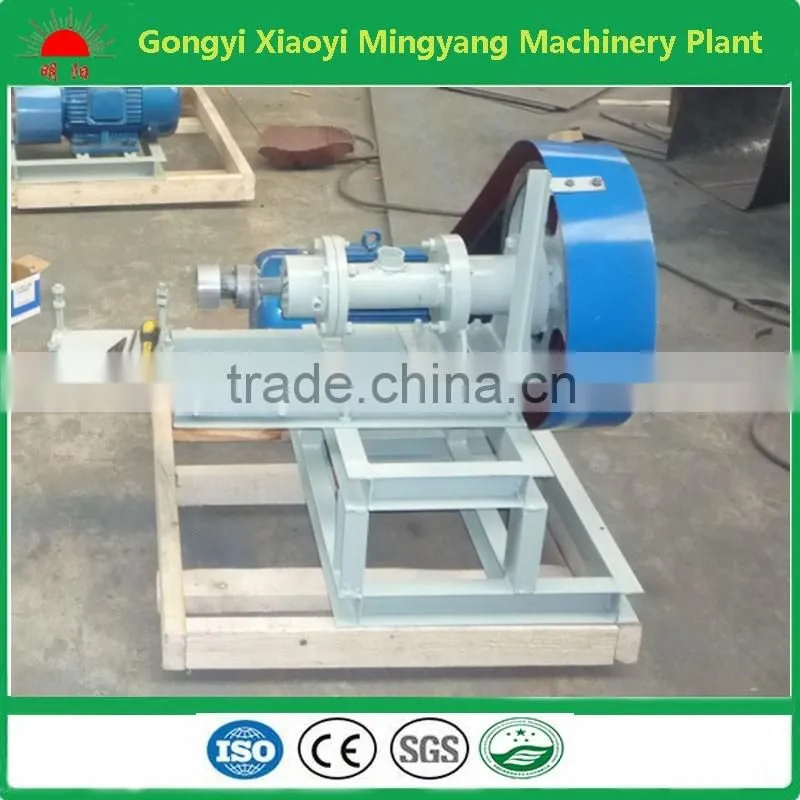

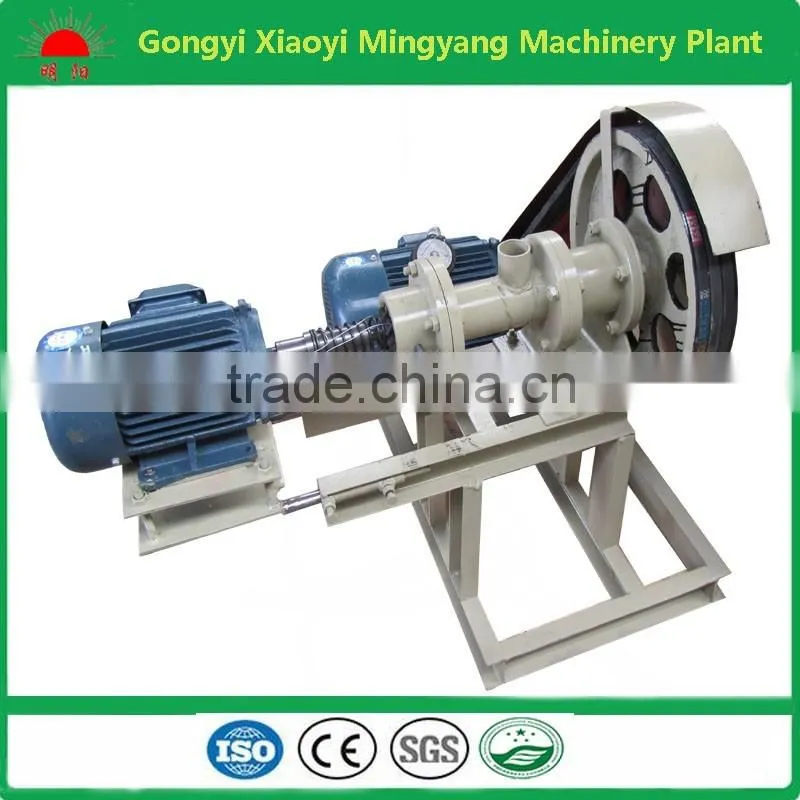

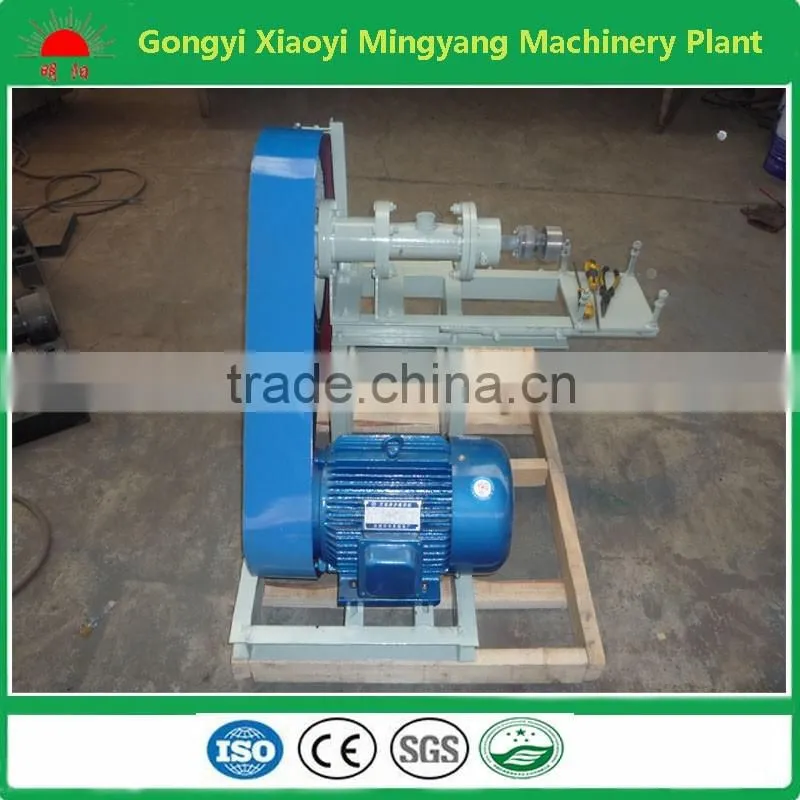

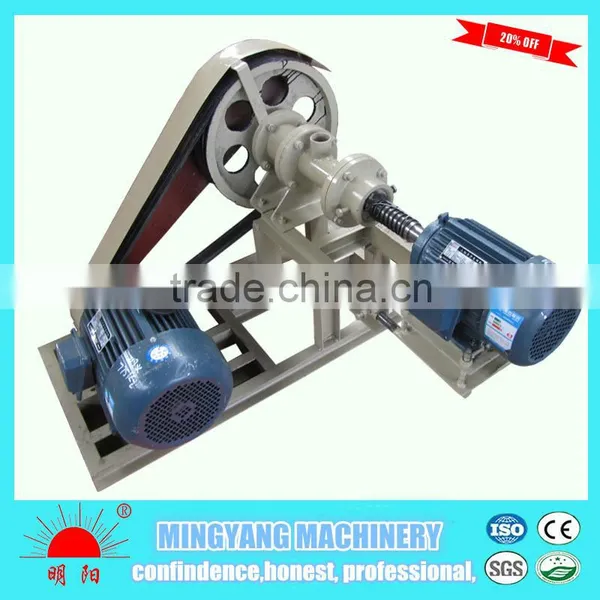

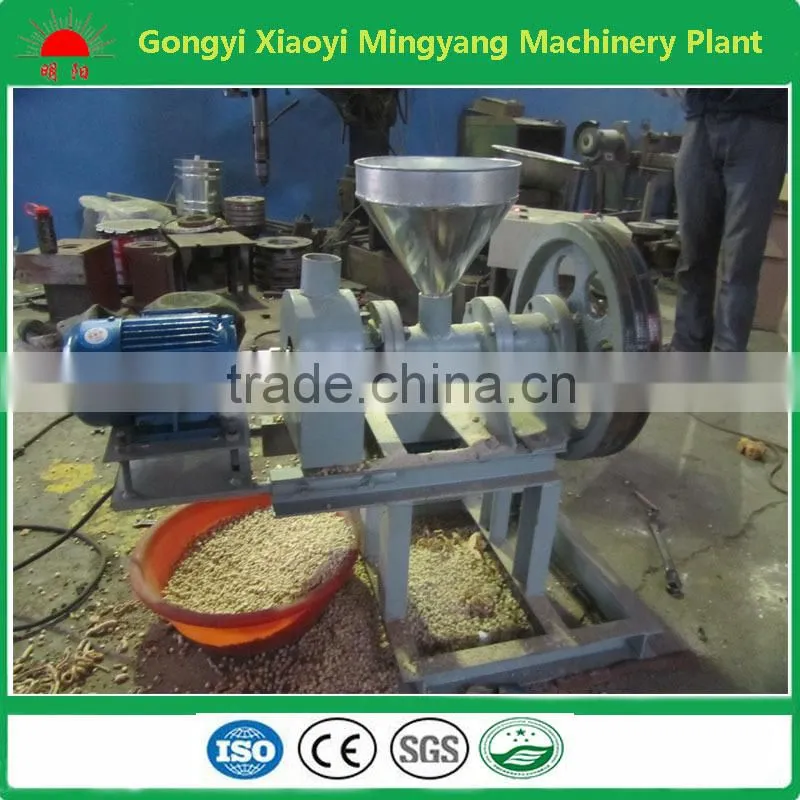

The information of screw type pellet extruder

1). The screw type pellet extruder which is also called floating feed can make many kinds of fodder for different kinds animals, such as the fish, shrimps, crab, eel, catfish and so on.

2)The size of finished products can be adjusted according to customers' different requirements.

The raw material of screw type pellet extruder

raw materials need grind into less than 2mm, moisture content : 20-25%

raw materials can be: corn,wheat, rice,corn, broomcorn,maize, beans, soybean, grain, bone powder etc.

The  application of screw type pellet extruder

The model has a simple structure, which can be widely applied to the small-scale aquaculture, food feed processing plants, livestock farms, poultry farms and individual farmers

The technical parameter of screw type pellet extruder

we have some type
Type
Screw dia
Power
Capacity
Weight
Machine size(m)
Final size
PH-52
52mm
5.5+0.55kw
50-60kg/h
245kg
1.3*1.0*0.8
1.5-6mm
PH-65
65mm
11+0.75kw
80-120kg/h
420kg
1.2*0.7*0.85
1.5-8mm
PH-75
75mm
15+0.75kw
140-160kg/h
565kg
1.5*1.2*0.9
1.5-8mm
PH-95
95mm
22+0.75kw
250-300kg/h
850kg
1.9*1.25*0.95
1.2-10mm

The working principle of screw type pellet extruder

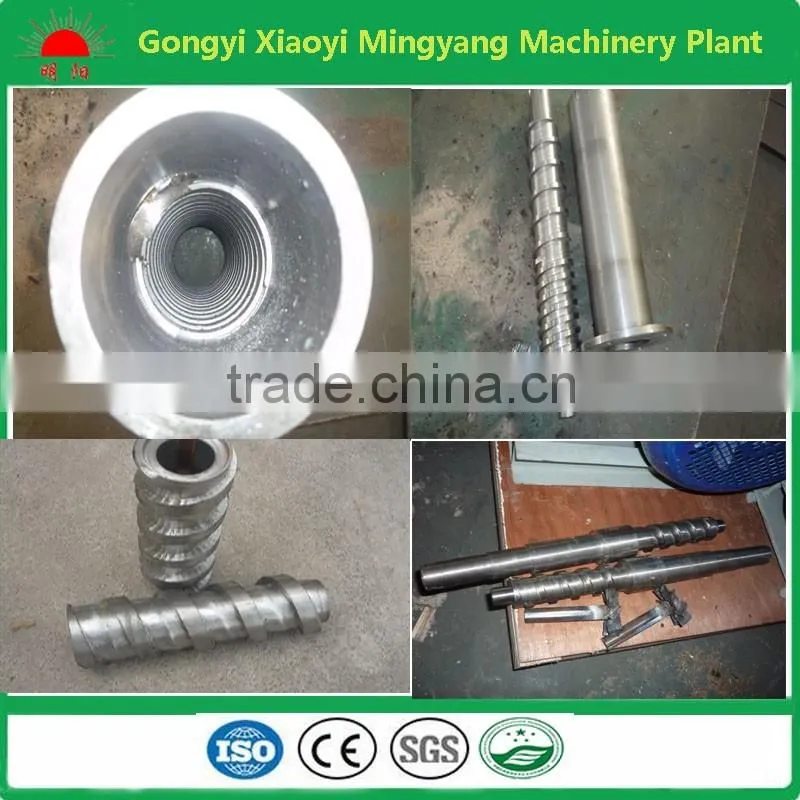

There is no need to heat outside the machine, through the screw extruding of the raw material, produces heat during the rotary working process, and gathers heat in the airtight environment to reach ripening, during the high temperature ripening process, the starch and fiber of the raw material become swell, on the pressure-tight condition, spray up from the mold outlet through the high pressure produced by the regular rotating of the screw, after cutting by the forepart cutter which rotates regularly and high-speedily, the finished product will be shrunk and become small average ball.

Main Features of screw type pellet extruder

1 . With different moulds, the machine can produce different diameter food, from 0.9mm to 10 mm. The food can meet different stage fish. The food can be floating 24hours


2 . It can produce different shapes feed for fish, dog, cat etc.


3 .Through the pretreatment of the feed, it can reduce loss of nutrition and advance the protein ratio.So the feed will be digested easily by animals.

The final product of screw type pellet extruder

1.Production of buoyancy puffed feed particles can maintain at least 12 hours don't bubble floating in the water, fish and livestock to eat easy to digest, artificial can easily observe the frog fish to eat, not cause waste of feed,

2.not pollution water quality materials by high temperature and high pressure effectively kill harmful bacteria such as e. coli,

3.salmonella, ensure the health of feed, promotes protein degeneration absorption and starch pasting, easy to fish and livestock absorption generally USES puffed buoyancy fish feed powder or granule feed save feed 8% - 15%.

Packing & Delivery

The packing and shipping of screw type pellet extruder

screw type pellet extruder packing in the plywood boxes or wooden cases, then put into the 20 feet or 40 feet container in delivery as follows.

Other machine
Our company

for us -------- Gongyi Xiaoyi Mingyang Machinery Plant

Gongyi Xiaoyi Mingyang Machinery Plant is located in Zhengzhou City, which is the biggest manufacturing base of charcoal making machinery.And we are the one of the earliest and largest manufacturers of renewable fuel & energy equipments and related machinery.
our company:

After 15 years development, now our company becomes an independent economic entity with the integration of science, engineering and trading department. our products are widely accepted in both domestic and world market, and also exported to more than 30 countries, such as England, Russia, Sweden, Poland, Iran, Sudan, South Malaysia, Indonesia, Vietnam, etc.

Certifications

We have got many certification such as CE, ISO9001,BV ,etc.
