Partition Machine/automatic Packing Macine
US$ 10,000 - 30,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Food, Medical, Other, Apparel, Textiles, Food, Medical, Machinery & Hardware, Apparel, Textiles
Packaging Type:
Cartons, Foil
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Gantry StackerUS$ 11540.00 - 12410.00MOQ: 1 Set -
Corrugated Carton Gluing MachineUS$ 4689.00 - 10000.00MOQ: 1 Set
-
Chain Feeder Die CutterUS$ 4650.00 - 7389.00MOQ: 1 Set
-
Corrugated Cardboard Thin Blade Slitter Scorer MachineUS$ 6890.00 - 12856.00MOQ: 1 Set
-
Corrugated Cardboard Drying and Molding MachineUS$ 28696.00 - 98634.00MOQ: 1 Set
Condition
New
Application
Food, Medical, Other, Apparel, Textiles, Food, Medical, Machinery & Hardware, Apparel, Textiles
Packaging Type
Cartons, Foil
Packaging Material
Plastic, Wood
Automatic Grade
Automatic
Driven Type
Electric
Voltage
3phase 440/410/380v 50hz customized
Power
about 8kw
Place of Origin
Hebei, China
Brand Name
Xinglong
Model Number
XL series partition machine/automatic packing macine
Weight
about 2 T
Dimension(L*W*H)
customized
Certification
CE certification
After-sales Service Provided
Engineers available to service machinery overseas
Specifications

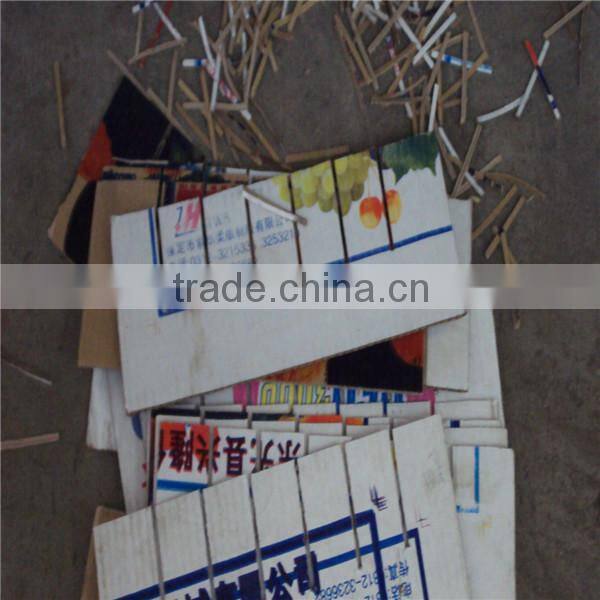

partition machine/automatic packing macineused to slot 3 ply 5ply corrugated cardboard and hard paperboard.
Feeding accurate
partition machine/automatic packing macine
1. Summery

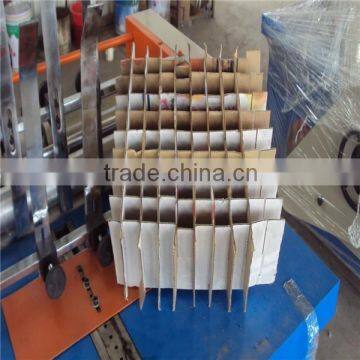

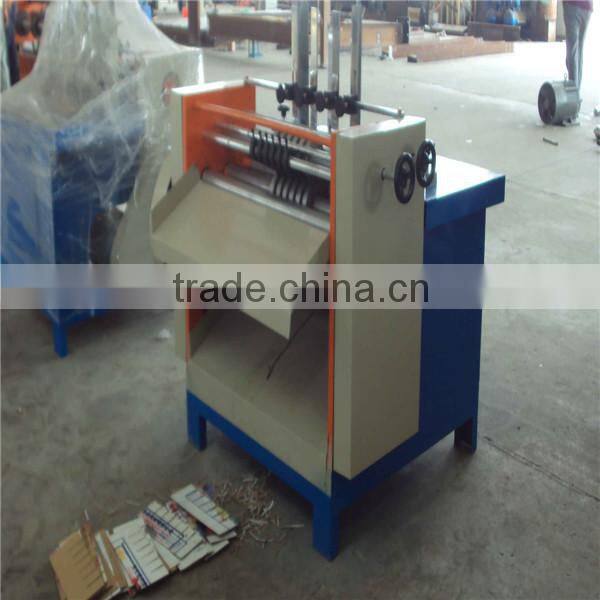

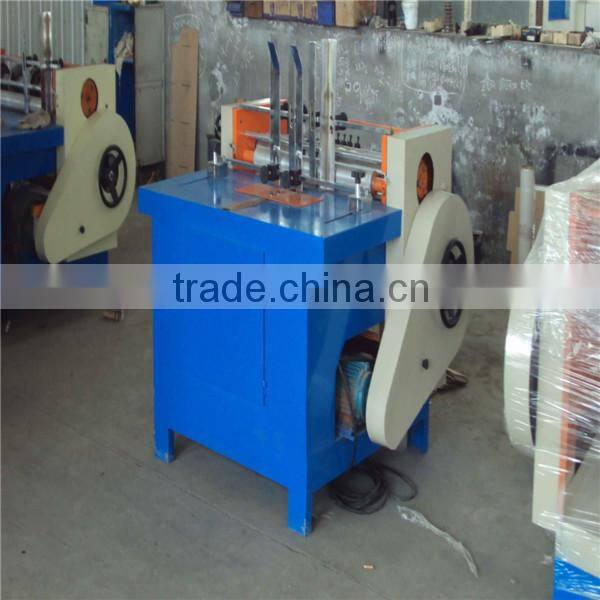

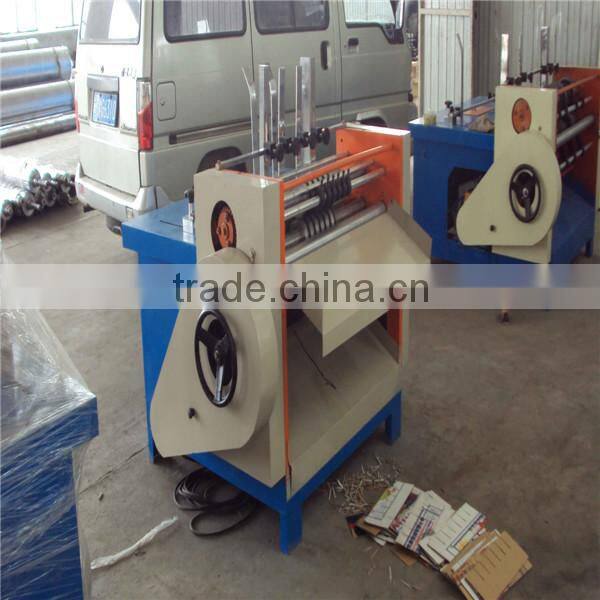

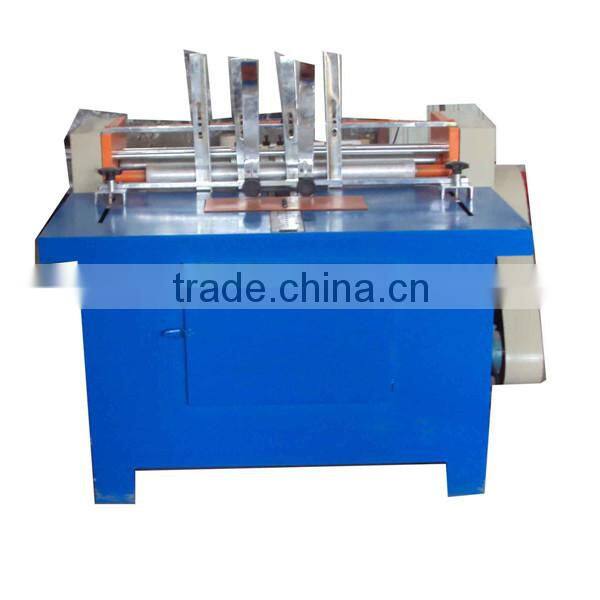

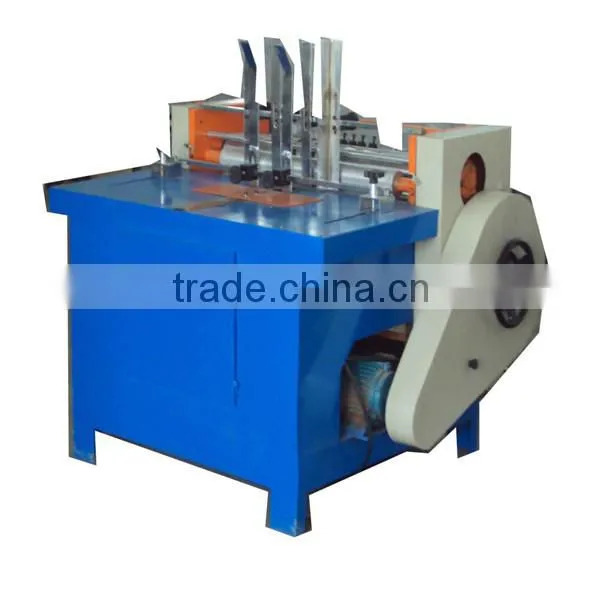

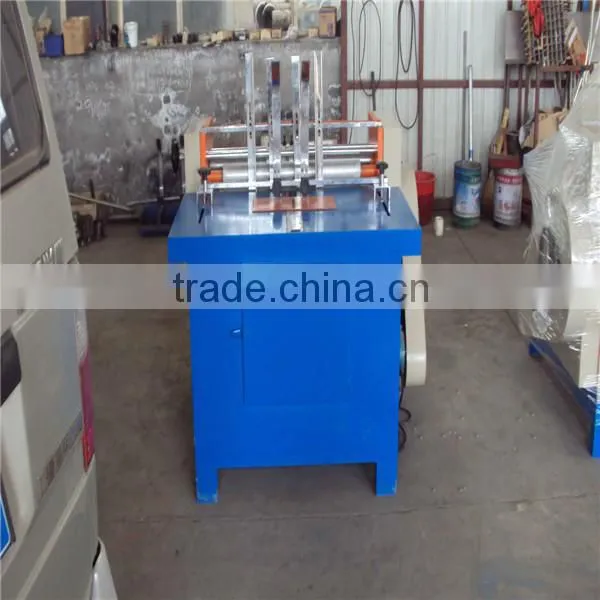

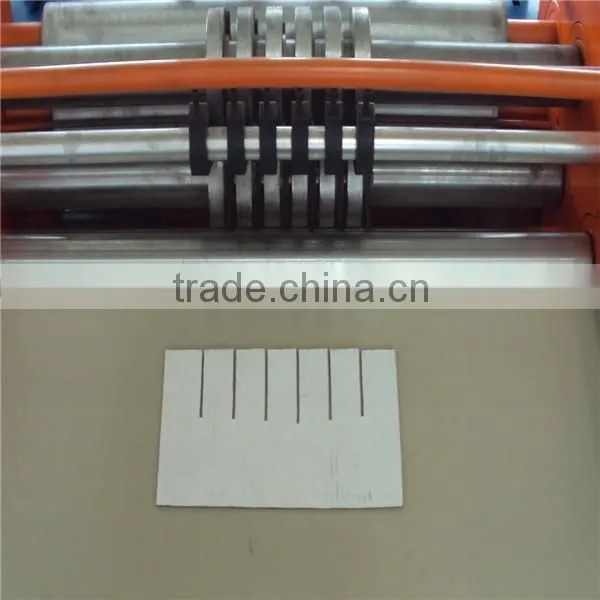

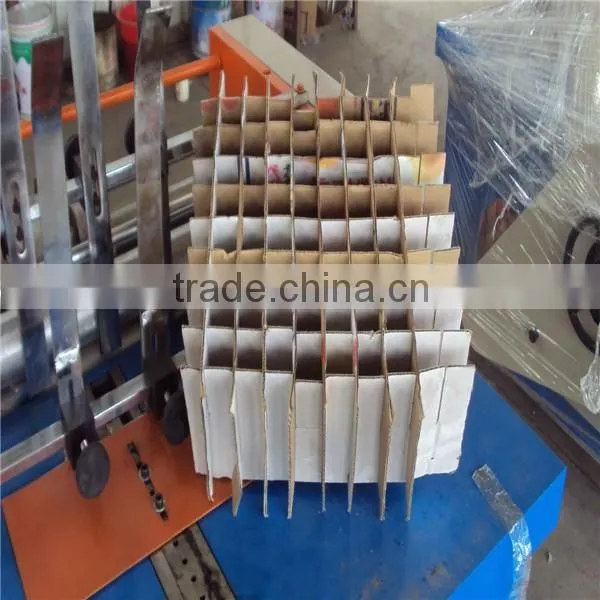

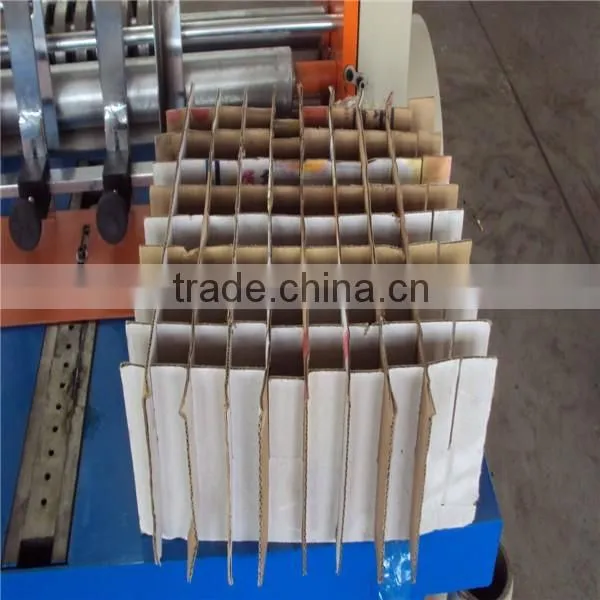

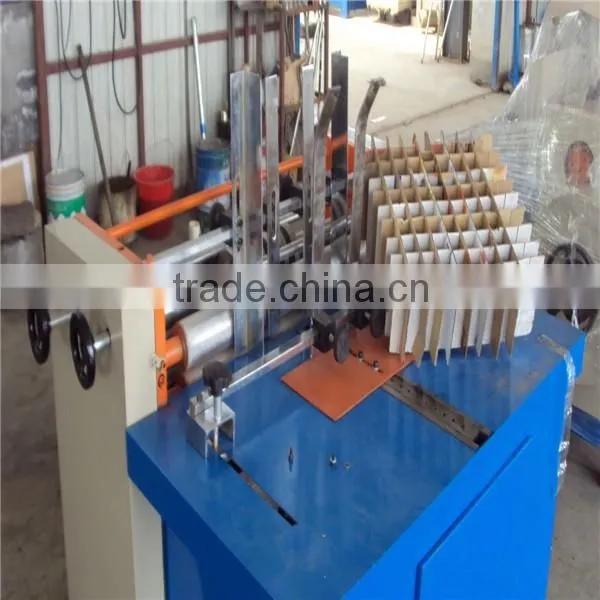

XL Automatic high-speed partition slotter is special equipment for carton clapboard, it is mainly used to slot 3 ply 5ply corrugated cardboard and hard paperboard. Feeding accurate, wide work range and adjusting range, adaptable, efficient.
2. Technology Parameter
Model |
XL104-800 |
XL104-900 |
XL104-1000 |
XL104-1200 |
XL152-800 |
XL152-900 |
XL152-1000 |
XL152-120 |
Cutter die diameter |
φ104 |
φ104 |
φ104 |
φ104 |
φ152 |
φ152 |
φ152 |
φ152 |
Max sheet size |
300*700mm |
300*800mm |
300*900mm |
300*1100mm |
400*700mm |
400*800mm |
400*900mm |
400*1100mm |
Min sheet size |
80*100mm |
80*100mm |
80*100mm |
80*100mm |
120*300mm |
120*300mm |
120*300mm |
120*300mm |
Min slot space |
40mm |
40mm |
40mm |
40mm |
40mm |
40mm |
40mm |
40mm |
Slot width |
3-5mm |
3-5mm |
3-5mm |
3-5mm |
3-5mm |
3-5mm |
3-5mm |
3-5mm |
Max slot depth |
150mm |
150mm |
150mm |
150mm |
200mm |
200mm |
200mm |
200mm |
Max working speed |
100 Pcs/min |
100 Pcs/min |
100 Pcs/min |
100 Pcs/min |
100 Pcs/min |
100 Pcs/min |
100 Pcs/min |
100 Pcs/min |
Thickness |
2-5mm |
2-5mm |
2-5mm |
2-5mm |
2-5mm |
2-5mm |
2-5mm |
2-5mm |
•Company Information

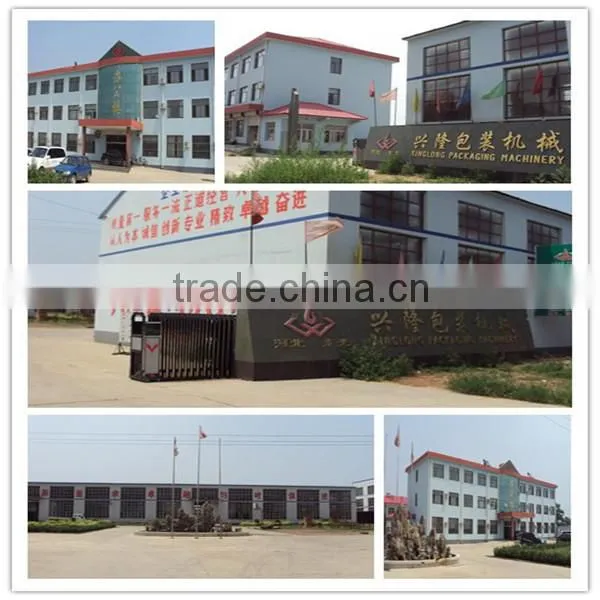

• DongguangXinglong Carton Machinery Co., Ltd is specialized in the production of various kinds of carton equipments of the well-know enterprise.
Factory for over twenty years, we introduced advanced technology at home and abroad, developing and manufacturing products, has been well received by customer.
We are specialized in producing 3ply, 5ply, 7ply corrugated cardboard production line, high speed printing machine, ordinary printing machine, single facer, rotary die cutter and other corrugated cardboard production equipment .products are distributed Russia ,the Middle East, Africa, Southeast Asia, EU and other countries and throughout the country. Product quality and enterprise reputation get the high praise at home and abroad.
Over the years the company take “the quality first” “integrity-based” corporate purpose always meet user’re-equipments as our sole purpose, providing the products with excellent quality, professional technology. Our company is willing to cooperate with domestic and foreign insight, strive for innovation, coexist win-win, hand in hand altogether will create packaging future.
Factory for over twenty years, we introduced advanced technology at home and abroad, developing and manufacturing products, has been well received by customer.
We are specialized in producing 3ply, 5ply, 7ply corrugated cardboard production line, high speed printing machine, ordinary printing machine, single facer, rotary die cutter and other corrugated cardboard production equipment .products are distributed Russia ,the Middle East, Africa, Southeast Asia, EU and other countries and throughout the country. Product quality and enterprise reputation get the high praise at home and abroad.
Over the years the company take “the quality first” “integrity-based” corporate purpose always meet user’re-equipments as our sole purpose, providing the products with excellent quality, professional technology. Our company is willing to cooperate with domestic and foreign insight, strive for innovation, coexist win-win, hand in hand altogether will create packaging future.
•Our factory is a professional corrugated cardboard carton box making machines manufacturer for over 20 years.
•We can provide every customer superior quality products at competitive price.
•If you have any interests about the machine, please feel free to contact me.
•Skype ID: cuiyun.shi
•DONGGUANG XINGLONG PACKING MACHINERY CO., LTD.
•ADD: MAHAI INDUSTRIAL AREA SOUTH TO DONGGUANG COUNTY, HEBEI PROVINCE, CHINA
