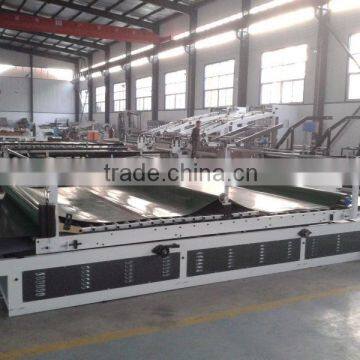

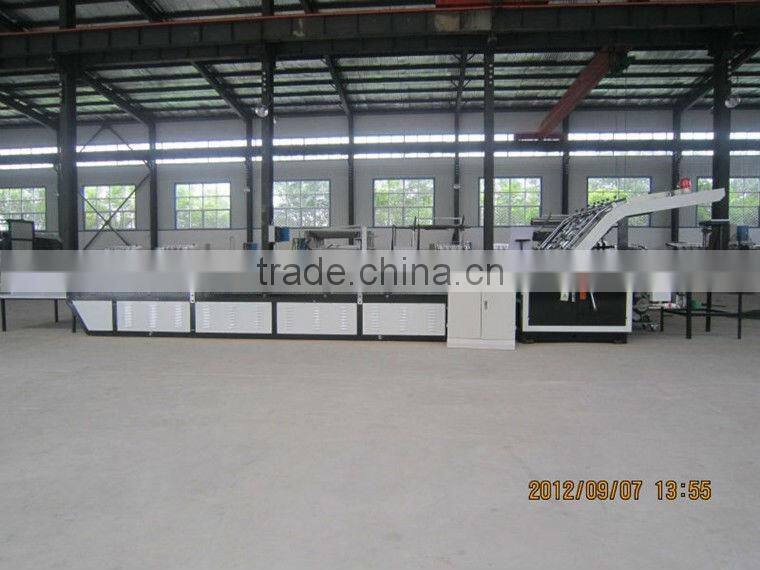

Help CenterAdsorption Semi-auto Flute Laminator Machine
Related Products
-
Adsorption Flute Laminator MachineryUS$ 12,000 - 17,500MOQ: 1 Set -
High Speed Automatic Flute Laminator MachineNegotiableMOQ: 1 Set
-
High Speed Automatic Flute Laminating MachineryUS$ 25,000 - 30,000MOQ: 1 Set
-
Automatic Flute Laminating Machine, Carton MachineUS$ 25,000 - 30,000MOQ: 1 Set
-
High Speed Automatic Flute Laminating Machinery,package MachineryUS$ 25,000 - 30,000MOQ: 1 Set
Specifications
semi-auto flute laminating machine1,frequency conversion control
2,PLC controll,convenient
3, vaccum sucking conveying syste
High Speed corrugated cardboard flute Laminating Machine Adsorption
Performance of the machine:
1, This machine advanced design can on real significance to realize high speed continuous work, stick machine is the most advanced field semi-automatic new exact a section type.
2, The machine adopts chain pusher and back registration system together with spring blade side lay and vacuum sucking conveying system makes this series of machine fit for a larger range of paper, high precision while remaining the features of easy operation and maintenance, The whole machine adopts the program of PLC, Pre-warning equipment.
3, The production of one hour is near automatic laminate. The automatic laminate requires high demand of cardboard. contrast to the automatic laminate, semi-automatic laminate requires low. It can settle the problem of corrugating paper arch and hold up.
Specification:
Model |
BZJ-1300B |
BZJ-1400B |
BZJ-1500B |
BZJ-1600B |
Max. size of cover face |
1300mm×1100mm |
1400mm×1250mm |
1500mm×1250mm |
1600mm×1250mm |
Min. size of cover face |
360mm×360mm |
360mm×360mm |
360mm×360mm |
360mm×360mm |
Economic speed |
0-80PCS/min |
0-80PCS/min |
0-80PCS/min |
0-80PCS/min |
Laminating precision |
±1 |
±1 |
±1 |
±1 |
Power |
6kw |
6kw |
6.5kw |
6.5kw |
Overall Dimension |
8.8m×1.95m×1.5m |
8.8m×2.05m×1.5m |
8.8m×2.15m×1.5m |
8.8m×2.25m×1.5m |
Weight |
About 3T |
About 3T |
About 3.5T |
About 3.5T |
