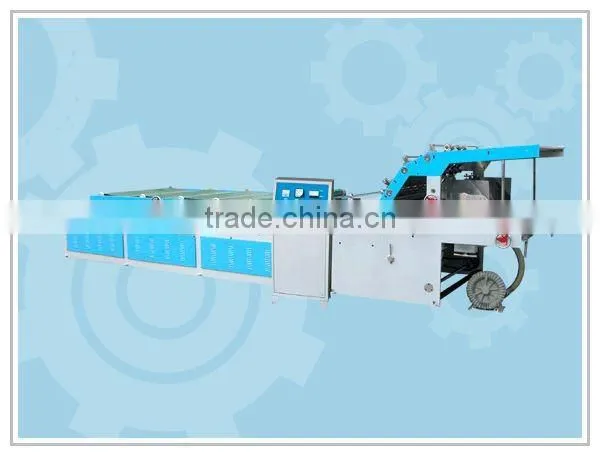

Adsorption semi-auto flute laminating corrugated carton machine

Specifications

Adsorption semi-auto flute laminating corrugated carton machine
1semi-automatic
2frequency orPLC control system
3high quality

Adsorption semi-auto flute laminating corrugated carton machine:



Characteristic:

This machine automatic feeding single-side corrugated cardboard, manual feeding Surface. Surface paper can be adjusted forward and backward and base paper never lead. Equipped with adjustable speed, frequency and PLC control system for your choice.





 Automatic high speed laminating machine corrugated carton machine:

Technology Parameter:



Model	TMB1300	TMB1450	TMB1600
Max sheet size	1600mm*1200mm	1450mm*1100mm	1600mm*1200mm
Min sheet size	360mm*360mm	360mm*360mm	360mm*360mm
Mechanical speed	0-65m/min	0-45m/min	0-45m/min
Weight	about 3000kg	about 3300kg	about 3600kg
Total power	4.5kw	4.3kw	4.3kw
Surface paper(card paper)	≥200g/m2	≥200g/m2	≥200g/m2
Base paper(card paper)	≥250g/m2	≥250g/m2	≥250g/m2
