Specifications
corrugated box making machine1. Front feeding
2.High efficiency, top quality

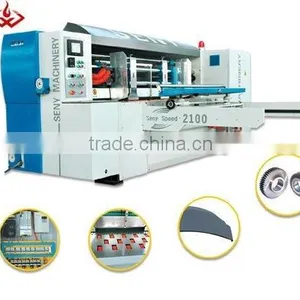

corrugated box making machine
Max die-cutting speed:50--120 pieces/min
Max passing paper size2100*1400 mm
Min passing paper size400*600 mm
Weight5500 kg
Die-cutting thickness25 mm
Power7.5 Kw
Cardboard thickness5-11 mm
range of applicationto die-cutting any atypia cartons
Detailed description
Die-cutting part
Die-cutting roller is made of quality steel the thickness is 30mm, balance correction, plating chrome
The wallboard is quality casting iron the thickness is 50mm, large-scale machining center
Soft roller automatic grinding institutions to improve the utilization of glue sheath, can repair the 3-4 times
Lind speed automatic compensation to ensure that each batch of cartons die-size is fully consistent
Quality rubber MATS made in Taiwan, easy to install, it can be used 12 billion times
Mechanical soft rolls around move laterally 40mm, pads wear uniform
Grinding gears are made of 40cr ,low noise, long service life
.Die roller adopt cylinder automatic separation device to reduce sleeve wear
Feeding paper part:
Adsorption automatic feeding paper , it can finish slotting, cutting horn, creasing, hit hole one time. Feeding paper speed: 10000 pieces/min, die-cutting precision: ±0.75mm
Adopt planet type electric phase to adjusting, its very fast when start and stop.
Adopt manual adjust former block board, and electric adjust lateral block board Leading paper roll have groove glue surface to prevent the crushed cardboard and increase the accuracy of feeding.
Computer
Man-machine interface, equipped PLC precision control system Host adopt frequency conversion variable speed motors
Before and after the control panel are concise concentration, easy to operate
The machine is consisted of light, electricity and gas joint control system
The electrical parts adopt brand manufacturers
Technology Parameter:
Type |
Max sheet size (mm) |
Min sheet size (mm) |
Thickness |
Speed(pcs/min) |
Main motor power |
Weight |
MQJ17A |
1700×1200 |
350×350 |
11mm |
30-120 |
4.0kw |
4500kg |
MQJ17A |
2000×1200 |
350×350 |
11mm |
30-120 |
5.5kw |
4500kg |
MQJ20B |
2100×1400 |
400×600 |
11mm |
50-160 |
7.5kw |
5500kg |
MQJ25C |
2400×1400 |
400×600 |
11mm |
50-160 |
7.5kw |
6000kg |
MQJ25C |
2500×1400 |
500×600 |
11mm |
30-100 |
11kw |
7000kg |
