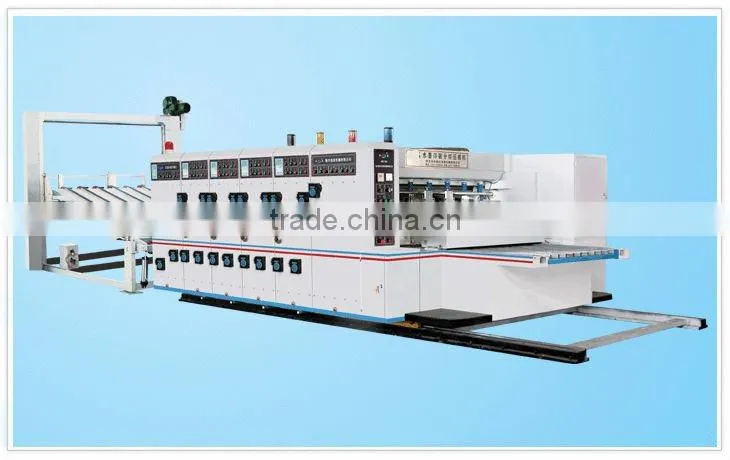

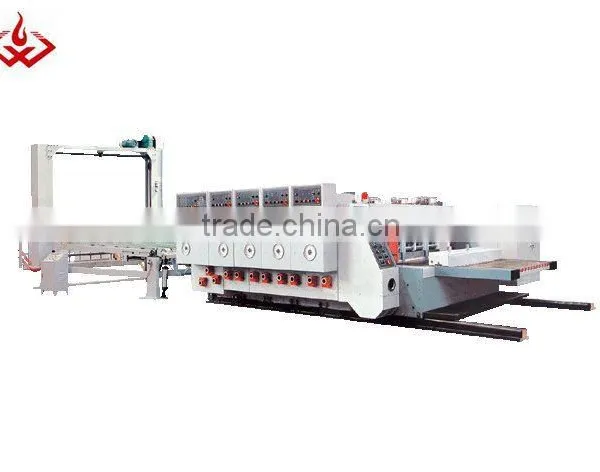

Series Of Automatic High-Speed Plexus Printing Slotting Die-Cutter

Name: Series Of Automatic High-Speed Plexus Printing Slotting Die-Cutter
Brand: xinglong
SKU: 104886887
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Application:

Other, food , medical etc

Packaging Type:

Cartons

Dongguang Xinglong Packaging Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

tianjin

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Other, food , medical etc

Packaging Type Cartons

Packaging Material Plastic

Automatic Grade Automatic

Driven Type Electric

Power 4.5-7.5KW

Place of Origin Hebei, China

Brand Name xinglong

Model Number GYK

Specifications

Automatic High-Speed Plexus Printing Slotting Die-Cutter
high quality , low cost
The ejector back-kicking feeding system

GYK Series Of Automatic High-Speed Plexus Printing Slotting Die-Cutter

Corrugated Cardboard Production Line

The ejector back-kicking feeding system

The built-in skip (intermittent) feeding feature makes offers the capability for making large-sized cartons

All the transmission gears are made from quality steel through heat treatment and grinding

The application of the splint-free shaft collar ensures long term operating and high precision in printing

Automatic zero-setting and automatic resetting

Large-sized double-piece cartons can be produced by moving the middle die

The powerful cylinder main lock for the whole machine makes the system more stable

Technological Parameter

WYAZS NAME	UNIT	WYAZS
Max paper coverage area	mm	2600×1500
Effective printing area	mm	2300×1500
Min finish size	mm	500×400
Thickness of printing plank	mm	6
Max speed	pieces/min	120
Economy speed	pieces/min	90
Frequency conversion power of main motor	KW	15-30
Topping precision (four colors)	mm	±0.75
Slotting precision	mm	±1.5
