Specifications
YFQ Series of multi-color printer slotter machine,carton machine1.chain feeder style
2.no-gap adjustment
3.low cost etc

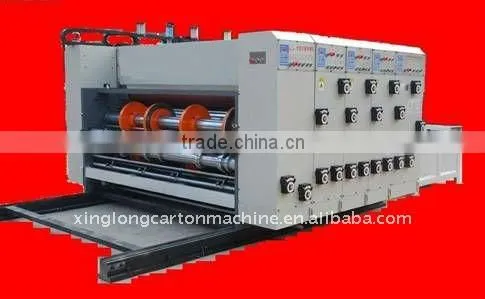

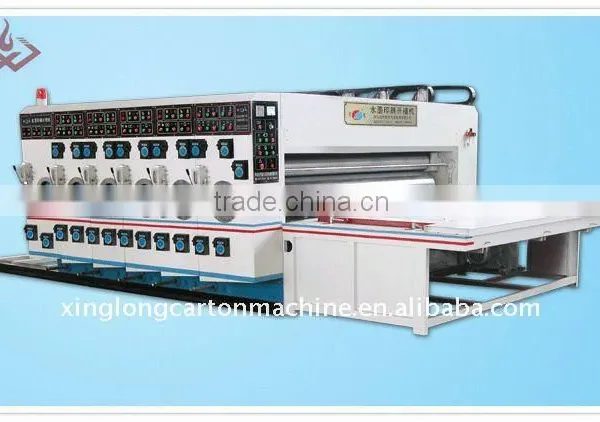

YFQ Series of multi-color printer slotter machine,carton machine
It adopts the combination chain-paper feeding
Adopt planet type electric phase 360 degree adjusting , while revolving or stop-ping can be adjust quickly and accurately .
When machine stopped working , inker auto separately with printing roller , avoid damaging the printing roller .
Inker roller has the separately turn device to prevent ink drying when machine stopped working .
Pneumatic locking , electrically separation .
Ink supply by pneumatic diaphragm pump .
Main transmission gear made by 45# steel after high frequency quenching .
Transmission part adopt sprinkle lubricating system , ensure the machine precision and use life.
|
|
|
(Technological Parameter )
Model |
roller diameter (mm) |
paper passing width (mm) |
Effective printing area (mm2) |
Total weight of Machine (kg) |
Motor power (KW) |
YFQ-1800 |
420 |
1750 |
1500×1300 |
4500 |
4.0 |
YFQ-2000 |
420 |
1950 |
1700×1300 |
5000 |
4.0 |
YFQ-2200 |
420 |
2150 |
1900×1300 |
5500 |
4.0 |
YFQ-2500 |
420 |
2450 |
2200×1300 |
6000 |
4.0 |
YFQ-1800 |
480 |
1750 |
1500×1470 |
5000 |
4.0 |
YFQ-2000 |
480 |
1950 |
1700×1470 |
5500 |
4.0 |
YFQ-2200 |
480 |
2150 |
1900×1470 |
6000 |
5.5 |
YFQ-2500 |
480 |
2450 |
2200×1470 |
6500 |
5.5 |
YFQ-2800 |
480 |
2750 |
2500×1470 |
7000 |
5.5 |
YFQ-3000 |
480 |
2950 |
2700×1470 |
7500 |
7.5 |
YFQ-2500 |
530 |
2450 |
2200×1600 |
7500 |
7.5 |
YFQ-2800 |
530 |
2750 |
2500×1600 |
8000 |
7.5 |
YFQ-3000 |
530 |
2950 |
2700×1600 |
8500 |
7.5 |
