Specifications
corrugated cardboard production line packing machineIt is the professional equipment for producing corrugated cardboard.
corrugated cardboard production line packing machine

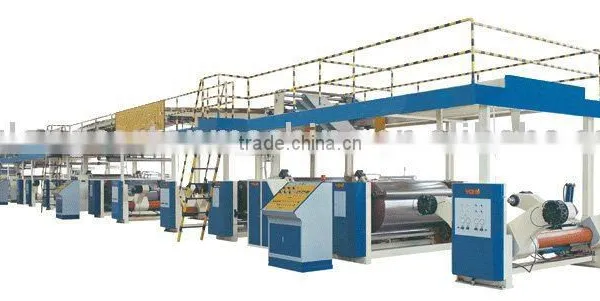

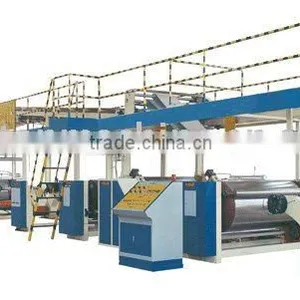

Corrugated cardboard production line is the professional equipment for producing corrugated cardboard. The three-ply, five-ply, seven-ply, and multi-function corrugated cardboard production line mainly consist of the following equipment; Mill Roll Stand, Surface Paper(core paper) Preheater , Single Facer, Conveying Span Bridge, Glue Application Machine, Double Facer, Slitter Scorer, Cut-off, Conveyer and Stacker, Heating System, Air compression system and Glue Making System, etc. The three-ply, five-ply, seven-ply, and multi-function corrugated cardboard production line has high, middle and low grade with different-specification and different-quality equipment. On the base of understanding the requirements of the customers and the advanced skills at home and abroad, our company has developed and designed these production lines with the speed 60220m/min; the paper width 16002200mm(or usersappoint) and four fluting UV type A,B,C,E for customers choices.
. 3ply Corrugated Cardboard Production Line
Main Technology Parameter:
|
Design Speed |
30-50m/min 50-80m/min 60-100m/min 80-150m/min |
|
Working Speed |
30-40m/min 50-70m/min 60-90m/min 80-120m/min |
|
Expiry Width |
1600mm-2400mm |
|
Power |
About 60KW-80KW |
|
Drum Diameter |
270mm-360mm |
|
Flute Type |
A,B,C,E for you choice( or user specified) |
|
Type of heating |
Electric, Oil,steam |
.
5ply Corrugated Cardboard Production Line
Main Technology Parameter
|
Design Speed |
30-50m/min 50-80m/min 60-100m/min 80-150m/min |
|
Working Speed |
30-40m/min 50-70m/min 60-90m/min 80-120m/min |
|
Expiry Width |
1600mm-2400mm |
|
Power |
About 80KW-100KW |
|
Drum Diameter |
270mm-360mm |
|
Flute Type |
A,B,C,E for you choice( or user specified) |
|
Type of heating |
Electric, Oil, steam |
