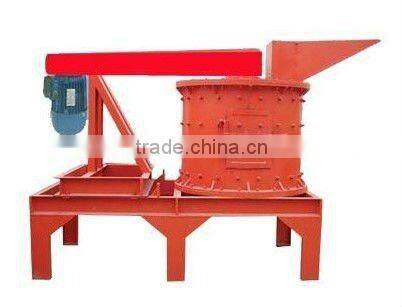

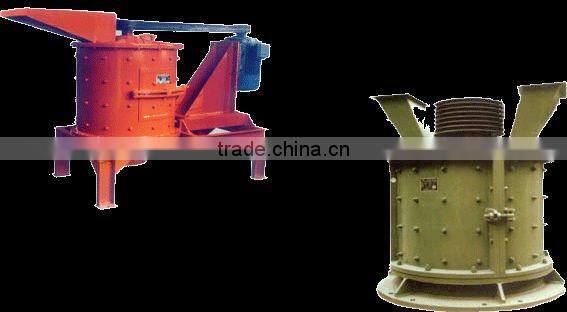

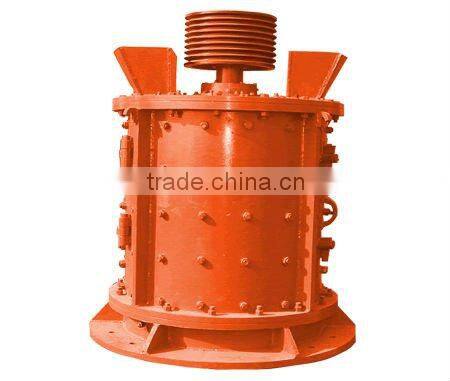

dustless clean wood vertical mill machine

Specifications

vertical crusher:
1.Low Investment Cost
2.Low Operation Cost
3.High Drying Ability
4.Simple and reliable operation

                                                           clean wood vertical mill with patent



Main application:



It is widely applicable to the industrids such moulded coal,foundry,refractiries,building mat-erial,condtuction,chemical industry and metallurgy etc.Because of the convenient operation and repairs ,low power expenditure, high efficiency and whole-mac-hinetransport, it is the idealupd-ated product for rolling and stirring in each industry.



vertical mill Brief Introduction:



vertical mill is one advanced mill, adopting top technology domesic and abroad, and based on many years' mill experiences. It can crush, dry, grind, and classify the materials.

vertical milling machine can be widely used in such industries as cement, power, metallurgy, chemical industry, non-metallic mineral. It is used to grind granular and powdered materials into powder with required fineness







structure:

including the part of the rack, chassis, up and down the shaft seat, spindle, hammer, hammer bracket, pulleys, motor racks, power V-belt driven spindle, the upper and lower bearing spindle, bearing installationthe top and bottom of the chassis, the chassis assembly installed in the next rack, the spindle is equipped with the hammer, hammer holder, hopper mounted on the upper part of the chassis for easy loading and unloading hammer, open the valve in the casing for easydisassembly and maintenance





vertical mill Main Advanced Features:

1. Low Investment Cost

This mill itself can crush, dry, grinding, classifying, so the system is simple, and occupation area is about 50% of ball mill system. In addition, it can be installed outside, so it will reduce a large number of investment costs.

2. Low Operation Cost

High efficiency: roller compacted materials directly onto the grinding disc, so power consumption is low. Compared with ball mill, it saves energy consumption by 30% ~ 40%.

Less wear and tear: As the roller is not in direct contact with the disc, and material of the roller and liner is high quality, so life lime is long.

3. High Drying Ability

As the hot air inside contacts directly with the material, drying ability is higher, and it saves energy. By regulating the air temperature, it can meet requirements with diffirent humidity.

4. Simple and reliable operation

It is equipped with automatic control systems, so remote control makes it easy to operate.

It is equipmented with one device,which prevents the roller from contacting with the liner directly, and avoids the destructive impact and severe vibration

5. the stability of product quality

As the material stays in the mill for a short time, it is easy to detect and control the product particle size and chemical composition, to reduce duplication of milling, stable product quality.

6. Maintenance convenience

By reparinging fuel tank, rotating the arm, it is fast to replace the roller sleeve, and liner, and reduce the downtime



working principle:

Material from the inlet into collision with high-speed rotation of the chassis, chassis materials are impact extruded and broken, then crash to the casing inner wall counterattack and then collided with the hammer, so that in the course of the whereabouts ofafter several hit into the powder or particles less than 3mm from the lower part of the discharge.
