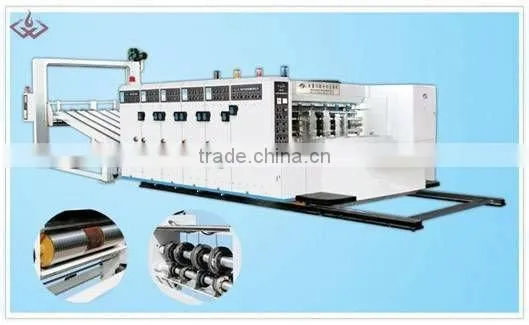

Help CenterXLQL Series Printing Slotting Die-cutting Machine
Related Products
-
Absorb Tyle Single Facer Machine, Carton Box MachineUS$ 9,000 - 50,000MOQ: 1 Set -
Thin Blade Slitting Creasing Machine, Carton Box MachineUS$ 2,000 - 5,000MOQ: 1 Set
-
ZY-J Mill Roll Stand, Carton MachineUS$ 3,000 - 8,000MOQ: 1 Set
-
SS-2000 Slitting and Scorer MachineUS$ 4,400 - 26,500MOQ: 1 Set
-
Side Pasting Glue Machine, Carton MachineUS$ 1,000 - 3,000MOQ: 1 Set
Specifications
printing die-cutting machine1. it can attachment slotter, rotary die-cutter
2. XLQL is economy type, low cost.
printing die-cutting machine
Function and Characteristics:
u The main electric parts of whole machine are famous brand.
u Used good quality materials and fittings.
u Adopting straight teeth gear that have been quenching with high frequency and grinding.
u All of axles and rollers are chrome plating to increase hardness,
u Adopt planet style electrical adjustment of 360 degrees whatever operating and stop quickly and accurately.
u Lead edge feeder (sun feeder) or kick feeder with vacuum-assisted feeding system.
u Ink roller can be detached automatic from printing plate to avoid damage the printing plate.
u Inker roller equipped the separately turn device to prevent ink dried when machine stop.
u Pneumatic lock, electrical divides.
u With Pneumatic diaphragm pump to supply ink.
u Drive part adopts sprinkle lubricating system, improve the precision and serve life of machine.
u Synchronous adjust carton height.
u Synchronous adjust slotting and creasing.
u Adopts crosshead splid to adjust printing gap (called no gap adjustment), prolong use life, to keep color register precision.
u Automatic zero returning.
u Put printing plate type: hang-plate type.
Technology Parameters:
Roller diameter |
mm |
φ480 |
Width of machine |
mm |
2200 |
Max sheet size |
mm |
1450*2000 |
Min finish size |
mm |
350*500 |
|
Max effective printing size |
mm |
1450*1700 |
Speed |
Pieces/min |
80 |
Main Motor power |
kw |
7.5 |
