Specifications
SS thin blade slitting machine,carton machine:Expiry widths: 1400mm-2200mm

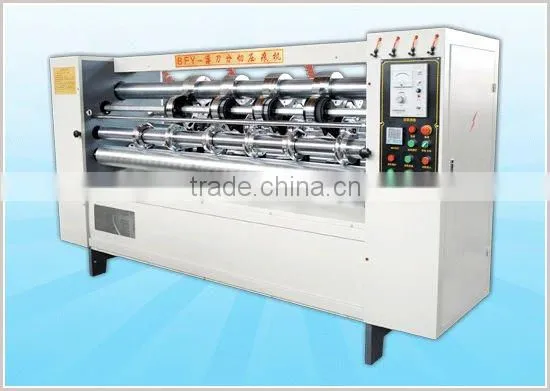

SS thin blade slitting machine,carton machine
1 Design speed: 150m/min
2 Expiry widths: 1400mm-2200mm
3 four blades six scorers or five blades eight scorers
4 Adopt electric life-lower in order to change the height of paper cutting and indentation, and to fit for the height of paper feeding.
5 adopt novelty thin edge high speed paper cutting, the incisions are level up and velvet.
6 auto-grinding edge system can be realized in the production, non-atop machine grinding edge, according to material and condition of hem, set the interval meter and the grinding time at any moment.
7 the whole set adopt electric movement horizontal, assort to the cardboard excursion in effect.
Width of passing paper board |
mm |
(1700.1900.2100.2400) |
Speed of passing paper board |
m/min |
80-180 |
Number of knives |
Piece |
4(increase or decrease available) |
Number of track-pressing wheels |
Pair |
6(increase or decrease available) |
Min.dividing width |
mm |
130 |
Min.track-pressing width |
mm |
60 |
Diameter of knife |
mm |
φ260 |
Thickness of knife |
mm |
≤1mm |
Motor power |
kw |
4 |
Size |
mm |
(2400.2600.2800.3100)×1120×1400 |
Weight |
kg |
1250.1550.1950.2500 |
