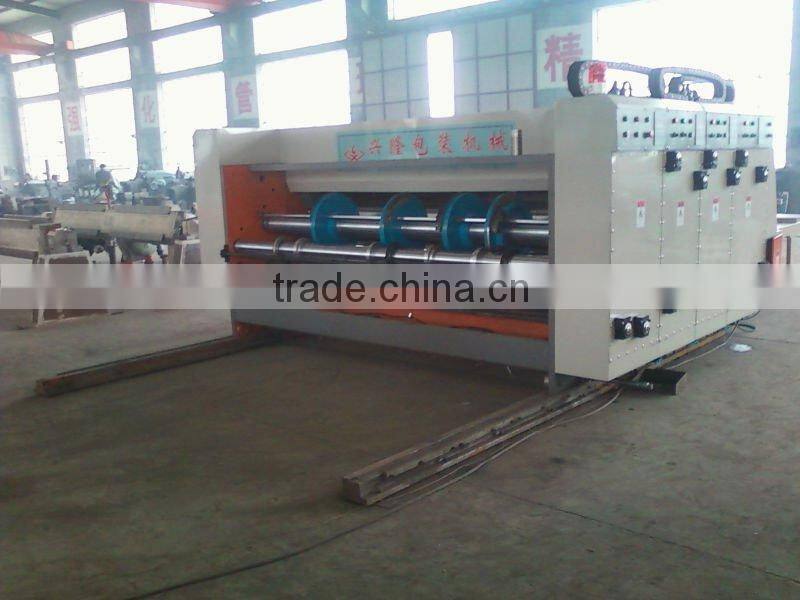

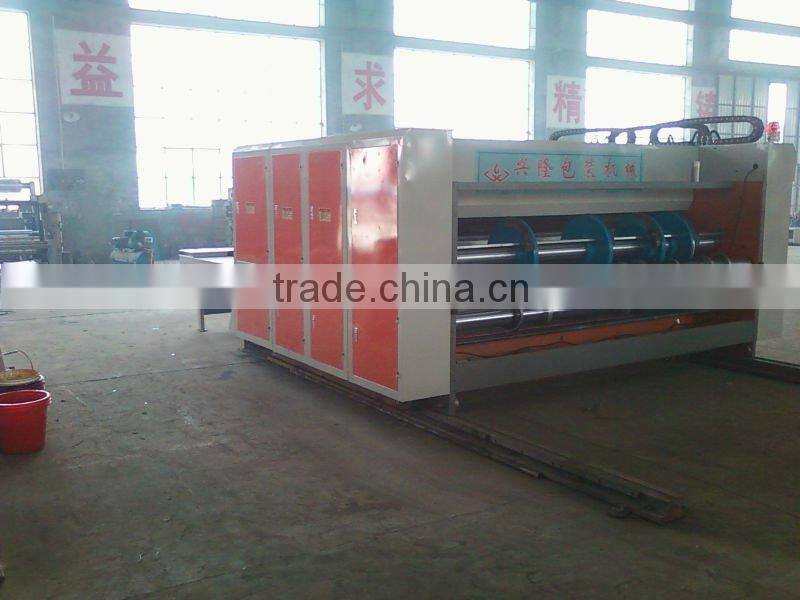

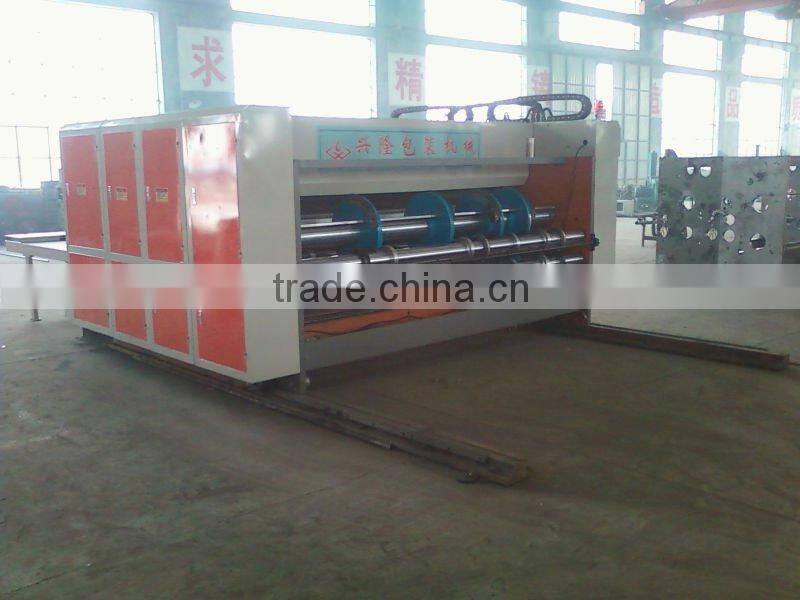

Three color flexo printing slotting carton making machine

Specifications

Three color flexo printing slotting carton making machine
Max. paper coverage area:2600*1500



Three color flexo printing slotting carton making machine



The ejector is back-kicking feeding system.

The built-in skip feeding feature makes offers the capability for making large-sized cartons.

All the transmission gears are made from quality steel through heat treatment and grinding.

The application of the spline-free shaft collar ensures long term operating performance and high precision in printing.

Automatic zero-setting and automatic resetting.

Large-sized double-piece cartons can be produced by moving the middle die

The powerful cylinder main lock for the whole machine makes the system more stable.

Parameters name	unit	Parameters
Max. paper coverage area	Mm	2600*1500
Effective printing area	Mm	2300*1500
Min finish size	Mm	500*400
Thickness of printing plank	Mm	6
Max speed	Piece/min	120
Economy speed	Piece/min	90
Frequency conversion power of main motor	Kw	15-30
Topping precision	Mm	0.75
Slotting precision	mm	1.5
