Specifications
printing slotting die cutter, carton machinemax.paper coverage area:2600*1500mm
max.speed:120m/min

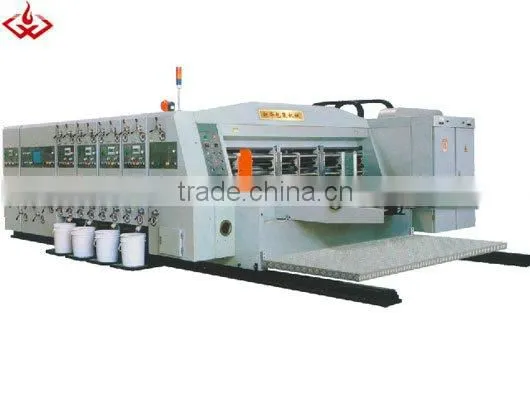

GYK automatic high speed plexo printing slotting die cutter, carton machine
The ejector is back-kicking feeding system.
The built-in skip feeding feature makes offers the capability for making large-sized cartons.
All the transmission gears are made from quality steel through heat treatment and grinding.
The application of the spline-free shaft collar ensures long term operating performance and high precision in printing.
Automatic zero-setting and automatic resetting.
Large-sized double-piece cartons can be produced by moving the middle die
The powerful cylinder main lock for the whole machine makes the system more stable.
Parameters name |
unit |
Parameters |
Max. paper coverage area |
Mm |
2600*1500 |
Effective printing area |
Mm |
2300*1500 |
Min finish size |
Mm |
500*400 |
Thickness of printing plank |
Mm |
6 |
Max speed |
Piece/min |
120 |
Economy speed |
Piece/min |
90 |
Frequency conversion power of main motor |
Kw |
15-30 |
Topping precision |
Mm |
0.75 |
Slotting precision |
mm |
1.5 |
