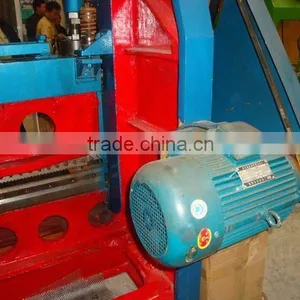

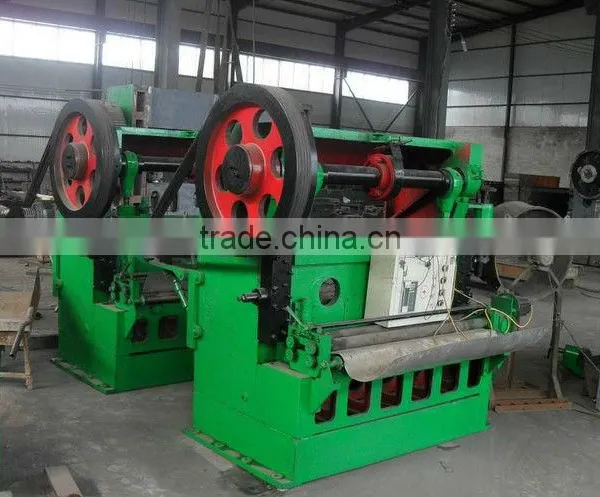

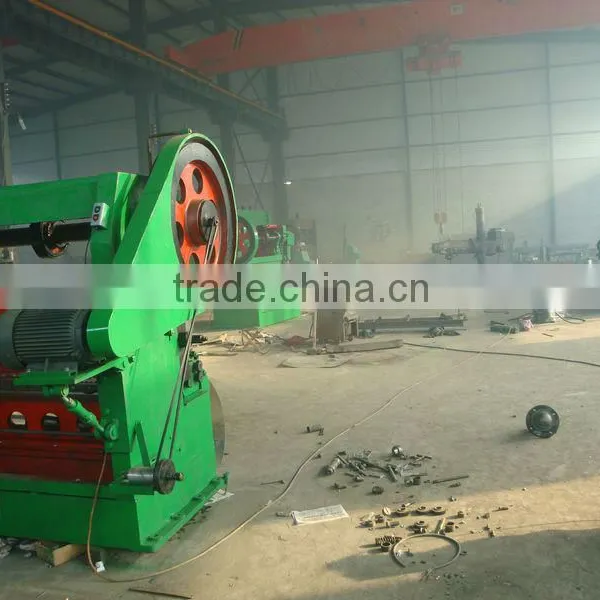

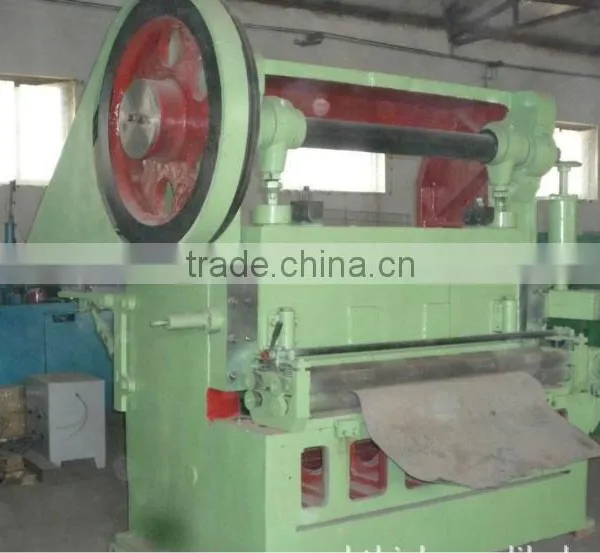

JQ25 series Expanded Metal Mesh Machine

Name: JQ25 series Expanded Metal Mesh Machine
Brand: hongao
Availability: InStock

FOB Price

USD $4,698 - $12,566 / Set

1 Set(Min.Order)

Supply Ability 15 Set / Sets per Month
Port tianjin
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	CNC or Not	Normal
Power Source	Mechanical	Place of Origin	Hebei, China
Brand Name	hongao	Model Number	apha---18
Voltage	220v or 380v	Power(W)	11kw
Weight	3ton-10ton	Warranty	1year
After-sales Service Provided	Overseas service center available

Product Description

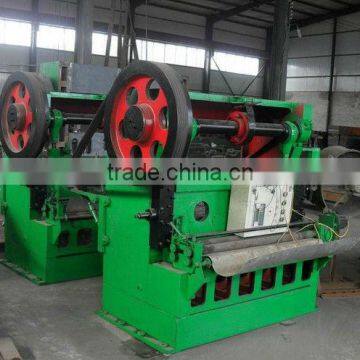

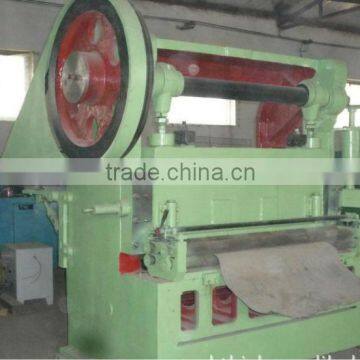

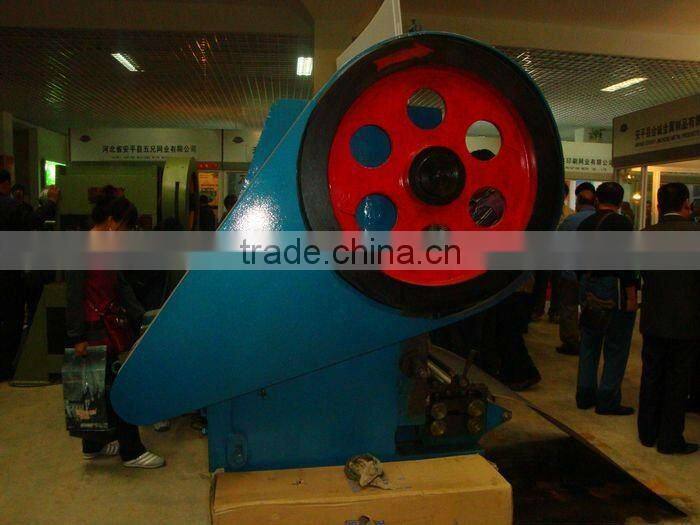

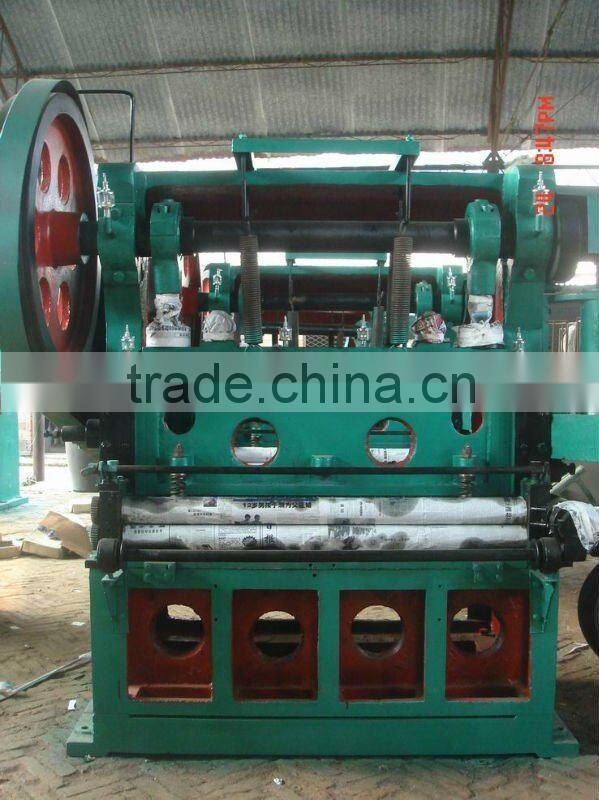

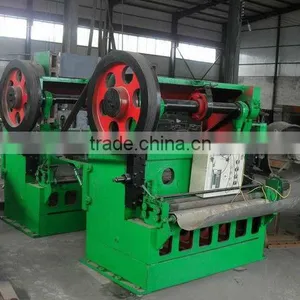

The machlnes are used for punching shear fhe cold crimped engine bed with the thickness of 1.2- 2.5mm the width of 2000mm Material strength of 450N/mm², The specifications of punching shear are su~eyed by the bit of TB5-20 mesh grid plate:if the TB TL are changed the punching shear knife is also changed:TB.TL are increased. the punching shear strength is reduced:TB.TL are reduced. the punching shear strength is increased In order not to damage components for the excess load The nominal tonnage is 63T lf TB TL are reduced the punching shear strength su rpasses the nominal tonnage. you can reduce the material thickness and width.

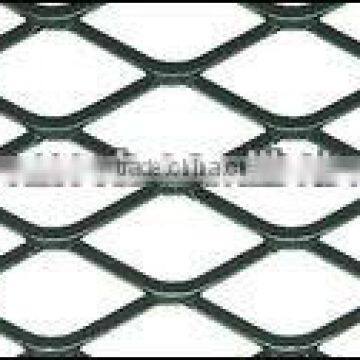

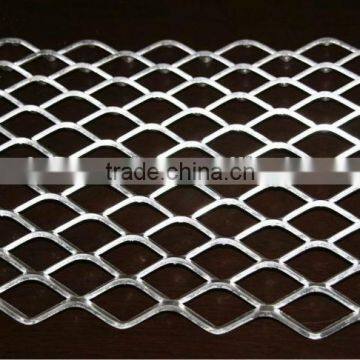

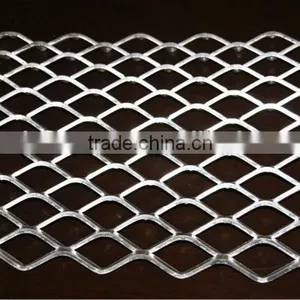

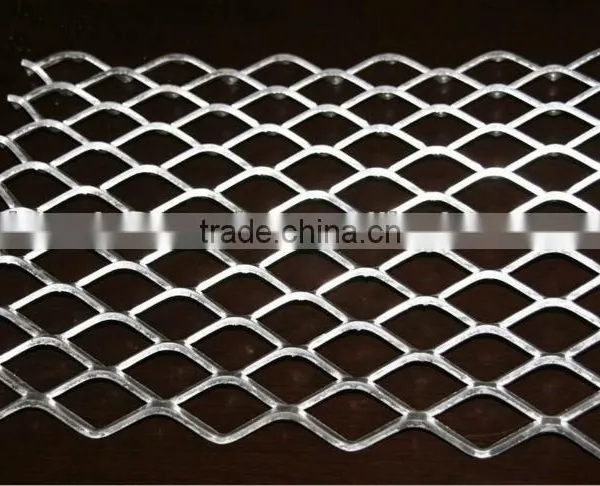

The machines are used for punching all kinds of expand plate mesh in construction. common hardware,window and door,machine protecting etc.

Feed mechanism passes the chain link by the main engine directcy. the movement accurate is reliable.

The times of feed mechanism punching shear is started from 0 it can shear in free scope.

Major Technical Parameter:

Main Parameter
TYPE	JQ25-6.3	JQ25-16	JQ25-25	JQ25-63A	JQ25-63B	JQ25-160A	JQ25-160B
DEPTH	=1.0mm	=1.0mm	=1.5mm	=2.5mm	=3mm	=6mm	=6mm
WIDTH	500mm	1000mm	1250mm	2000mm	2000mm	2500mm	2500mm
TIMES	180/min	150/min	150/min	70/min	45/min	70/min	20/min
DISTANCE	0-1.15mm	0-1.2mm	0-1.2mm	0-4mm	0-4mm	0-7mm	0-7mm

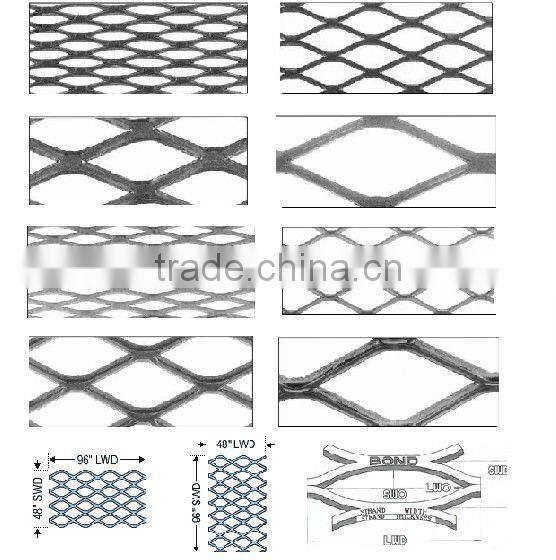

LENGTH OF MESH	=20mm	=25mm	=30mm	=100mm	=200mm	=250mm	=250mm
MOTOR	2.2KW	3KW	4KW	11KW	11KW	22KW	22KW
WEIGHT	0.95T	2T	3T	10T	10T	18T	20T
MEASUREMEENT	950 570 1780	1800 1320 1550	1940 1600 2010	2400 3500 2300	2400 3500 2300	5500 1750 3300	5500 1750 3300

SERIES STRAIGHTER AHJ	TYPE	JQ-05	JQ-10	JQ-125	JQ-15	DEPTH=3MM
SERIES STRAIGHTER AHJ	WIDTH	500mm	1000mm	1250mm	1500mm	DEPTH=3MM
