Specifications
Razor barbed tape is a kind of modern securityfencing materials fabricated with razor-sharp steel
blade and high-tensile
Galvanized Razor Barbed Wire
Introduction includes the details of Galvanized razor barbed wire,razor barbed wire specification ,our workshop ,our container loading ,company and factory ,my connection.
1.Introduction of Razor barbed wire :
Galvanized razor barbed wire | |
Name |
Razor wire ,razor barbed wire , razor wire mesh ,concertina wire |
Razor type |
Cross type ,single type ,concertina razor wire , flat razor wire ,straight line razor wire ,weld razor wire |
Weaving |
By galvanized steel or stainless steel plate stamping out the sword of sharp flake ,high tension galvanizing steel wire or stainless steel wire core do a combination of block absolutely equipment. |
Feature |
Compact and rational structure ,high safety factor |
Package |
Packed in waterproof paper inside and woven outside ,25kg/coil-100kg/coil ,one container can load 15-25 ton |
2.Specifications of Galvanized razor barbed wire
Concertina Razor wire specification
Outer diameter |
No. of loops |
Standard covering length |
Blade type |
450mm |
56 |
8-9M (3 clips) |
BTO-10.12.18.22.28.30 |
500mm |
56 |
9-10M (3 clips) |
BTO-10.12.18.22.28.30 |
600mm |
56 |
10-11M (3 clips) |
BTO-10.12.18.22.28.30 |
600mm |
56 |
8-10M (5 clips) |
BTO-10.12.18.22.28.30 |
700mm |
56 |
10-12M (5 clips) |
BTO-10.12.18.22.28.30 |
800mm |
56 |
11-13M (5 clips) |
BTO-10.12.18.22.28.30 |
900mm |
56 |
12-14M (5 clips) |
BTO-10.12.18.22.28.30 |
Single concertina razor coils
| Outer diameter | No.of loops | Standard covering length | Blade type |
| 450mm | 33 | 7-8m | CBT-60 CBT-65 |
| 500mm | 56 | 12-13m | CBT-60 CBT-65 |
| 700mm | 56 | 13-14m | CBT-60 CBT-65 |
| 960mm | 56 | 14-15m | CBT-60 CBT-65 |
3.Points to note when selecting razor wire
The core wire diameter :2.5mm is the industry standard
Blade type :smaller blades such as BTO 10 are quite small and therefore less of a deterrent ,larger blade profiles such as CBT65 are much more effective but blade type will also be reflected in the price.
Blade thickness:0.5mm is the industry standard .

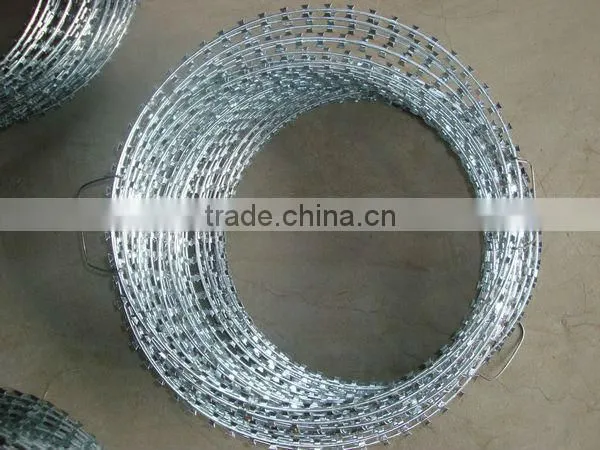

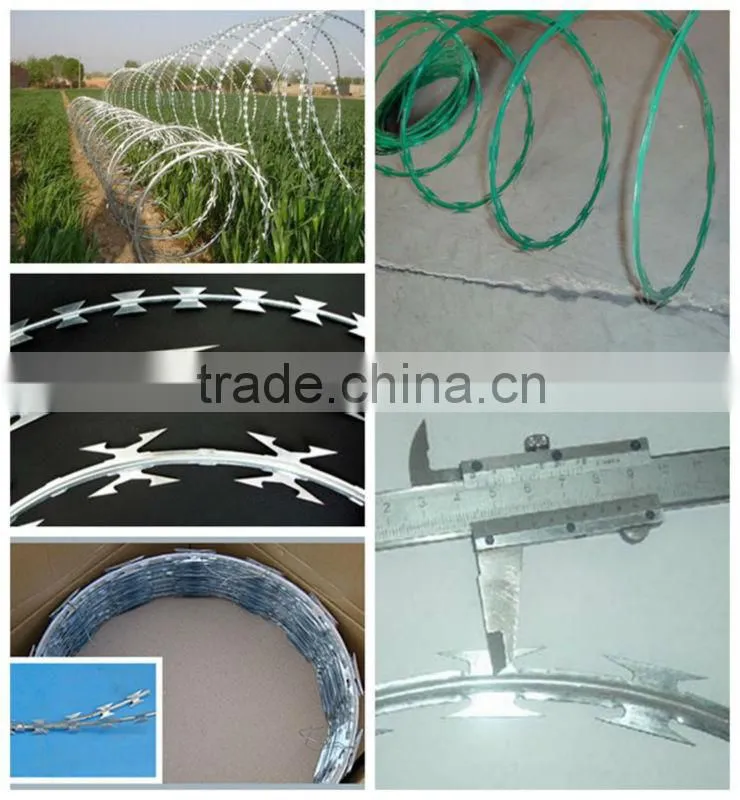

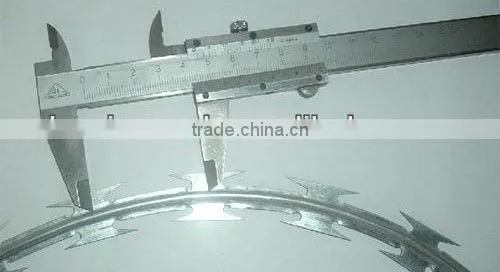

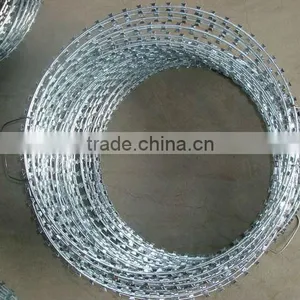

4.Pictures of Galvanized Razor barbed wire
