Specifications
Etched metal, also filterProcess: chemical etching.
Any sheet or belt materials.
0.1--3mm thickness

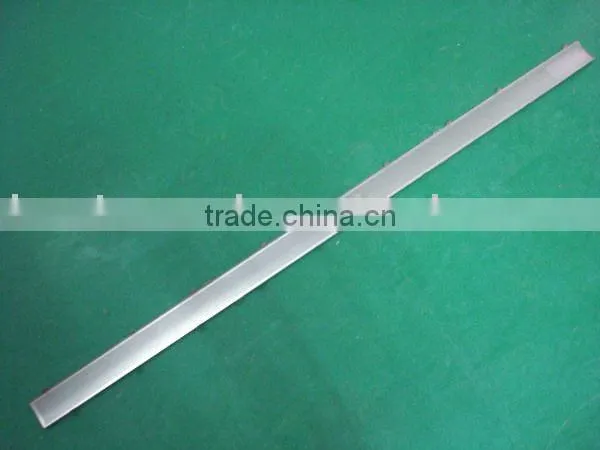

Etching metal sheet, also named etching metal, stainless steel etching, etched crafts etc.
Process: chemical etching.
Material: any sheet material or belt materials such as stainless steel, brass, steel, iron, nickel, alloy etc.
Specifications:
Item |
Description |
Material |
any sheet material or belt materials such as stainless steel, brass, steel, iron, nickel, alloy etc |
Material thickness |
0.02mm-3.0mm especially less than 0.5mm |
Min. wire aperture |
0.02mm |
Max. Produced area |
500*600mm |
Production quality assurance |
ISO 9001 and ISO14001
|
Producing process:
Feeding-- etching1 -- etching 2-- recycle water washing--urban water washing-- bolt up-check-- soak--spraying stripping -- recycle water washing-- urban water washing-- bolt up-- t air drying-- discharge
Character: precision double etching, smooth surface on both edges, no embossment, no convex-concave, no burnisher burr , no warping, no , any complicated pattern or geometric figure is available. Compared to perforated metal, it does not need polishing, and moreover, it’s very easy to change design and takes shorter producing time. It can produce what perforated metal machine can not produce.
End use: metal mobile keyboard, precise filter, shaped wire mesh, nameplate, juice machine filter, razor sheet, precise elecronics parts, ani-insect net, meal crafts, metal grid, metal cover, metal plate for model, decorative metal plate, metal name plate, metal cards, etched ornament, etc.
Application industry: in electronics, machinery, optical, oil, chemical, vehicle, artworks etc.
Etching metal sheet can be made according to customers’ demands. And it has been exported to U.K., Italy, Germany, France, Brazil, Canada, U.S.A., etc. And nearly all clients are satisfied with them. If you have any demands or need samples, please call me: Emily, 0086-13722444928.
