Specifications

Etched metal, also stainless steel etching
Process: chemical etching.
Any sheet or belt materials.
0.1--3mm thickness

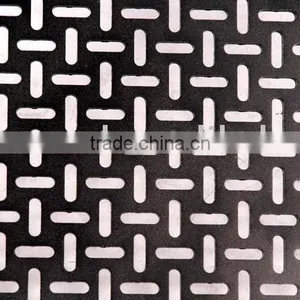

Etching metal sheet, also named etching metal, stainless steel etching, etched products etc.

Process: chemical etching.

Material: any sheet material or belt materials such as stainless steel, brass, steel, iron, nickel, alloy etc.



Specifications:

Item	Description
Material	any sheet material or belt materials such as stainless steel, brass, steel, iron, nickel, alloy etc
Material thickness	0.02mm-3.0mm especially less than 0.5mm
Min. wire aperture	0.02mm
Max. Produced area	500*600mm
Production quality assurance	ISO 9001 and ISO14001



Producing process:

Feeding--etching1 --etching 2-- recycle water washing--urban water washing-bolt up-check--soak--spraying stripping --recycle water washing--urban water washing--bolt up-- hot air drying-- discharge



Character: precision double etching, smooth surface on both edges, no embossment, no convex-concave, no burnisher burr , no warping, no ,   any complicated pattern or geometric figure is available. Compared to perforated metal, it does not need polishing, and moreover, it’s very easy to change design and takes shorter producing time. It can produce what perforated metal machine can not produce.



End use: metal mobile keyboard, precise filter, shaped wire mesh, nameplate, juice machine filter, razor sheet, precise elecronics parts, ani-insect net, meal crafts, metal grid, metal cover, metal plate for model, decorative metal plate, metal name plate, metal cards, etched ornament, etc.



Application industry: in electronics, machinery, optical, oil, chemical, vehicle, artworks etc.





Etching metal sheet can be made according to customers’ demands. And it has been exported to U.K., Italy, Germany, France, Brazil, Canada, U.S.A., etc. And nearly all clients are satisfied with them. If you have any demands, please call me: Emily, 0086-13722444928.
