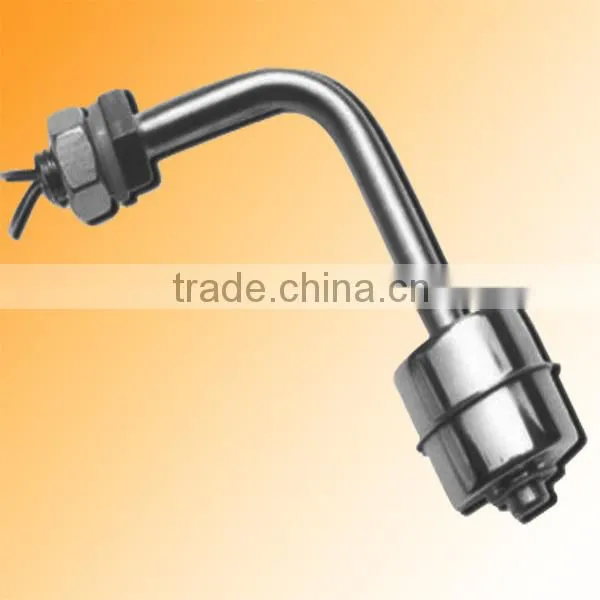

Help Center12v 24v With M16 Side Mounting Thread /horizontal Install Water Level Sensor 5CFS-YZ-5
Related Products
-
Side Mounted Water Float Level Sensor/ PP Material/ Liquid Level Switch 5CFS-YZ-2US$ 1 - 2MOQ: 500 Pieces -
PP Material/water Level Sensor/horizontal Installation/side Mounted 5CFS-YZ-7US$ 1 - 2MOQ: 500 Pieces
-
E-5C ABS Surface Mounted Magnetic Switch for Alarm System 5C-47US$ 0.5 - 2MOQ: 1000 Pieces
-
Wired Surface Mounted Mini Magnetic Contacts 5C-39 With CE FCC ROHSUS$ 0.5 - 1MOQ: 500 Pieces
-
E-5continents 5CPS-21 Magnetic Proximity Sensor Material ABSUS$ 1 - 1.5MOQ: 1000 Pieces
E-5continents Co., Ltd
we specialized in security accessories since 2001:
contact : Sylvia skype : sales2-e5continents
Parameters
(1) The operation of the level probe for liquid is based on the switching of a reed switch by a magnetic float, roating around a fixed point or silding along a stem.
(2)Large varity of versions based on different body and float materials is available for use at operating terperature up to 125 degrees.
(3)Cable wiring is available in various insulations and lengths.
(5)The level switch is desiged for external or internal mounting on the side vessel walls and iselectrically terminated by lead wires.
material : PP+GF, PP float
work temperature:-10~ +85
mounting thread:M16
Easy to install
Output |
10 W |
50 W |
||
Max. Switching Voltage |
100 VDC |
200 VDC |
||
Max. Switching Current |
0.5 A |
1.5 A |
||
Min. Breakdown Voltage |
220 VDC |
300 VDC |
||
Max. Carry Current |
1.0 A |
3.0 A |
||
Max. Initial Contact Resistance |
100 mΩ |
|||
Temperature Rating |
-10 ~ +85 |
|||
Material of float & E-ring |
PP |
|||
Material of body |
PP+GF |
|||
Material of screw net |
ABS |
|||
Leads |
1034UL22AWG430mm length |
|||
Drawing
More :
5CFS-YZ-1 5CFS-YZ-2 5CFS-YZ-3 5CFS-YZ-4 5CFS-YZ-7
5CFS-107761 5CFS-1043 5CFS-P32 5CFS-P45 5CFS-10100-1
