Home > Electrical & Electronics > Switch > Flow Switch > 1/2" NPT Tapered Plug Magnetic Float Level Switch Water Level Sensor 5CFS-YZ-3H
1/2" NPT Tapered Plug Magnetic Float Level Switch Water Level Sensor 5CFS-YZ-3H
US$ 1 - 2
MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
e-5continents
Model Number:
5CFS-YZ-3H
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
E-5continents PP Float Series NBR FloatUS$ 0.5 - 1MOQ: 500 Pieces -
E-5continents PP Float SeriesUS$ 1 - 2MOQ: 500 Perches
-
E-5continents Stainless FloatUS$ 1 - 2MOQ: 500 Pieces
-
E-5continents Water Level Sensor , Float SensorUS$ 1 - 2MOQ: 500 Pieces
-
E-5continents 5CFS-1075-1A Water Tank Level Sensor,US$ 1 - 2MOQ: 200 Pieces
Place of Origin
Guangdong, China
Brand Name
e-5continents
Model Number
5CFS-YZ-3H
Media Type
Liquid
Operating Temperature
110- +60 degree Celsius
E-5continents Co., Ltd
we specialized in security accessories since 2001
all kinds of products for you to choose
Float level sensor 5CFS-YZ-3H ideal for water
water level sensor, oil/fuel level switch, float level switch, PP/ stainless liquid level switch
Output |
10 W |
50 W |
||
Max. Switching Voltage |
100 VDC |
200 VDC |
||
Max. Switching Current |
0.5 A |
1.5 A |
||
Min. Breakdown Voltage |
220 VDC |
300 VDC |
||
Max. Carry Current |
1.0 A |
3.0 A |
||
Max. Initial Contact Resistance |
100 mΩ |
|||
Temperature Rating |
-10 ~ +60 |
|||
Material of float & E-ring |
PP |
|||
Material of body |
PP+GF |
|||
Material of screw net |
ABS |
|||
Leads |
1034UL22AWG430mm length |
|||

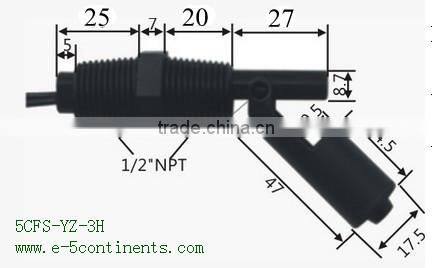

Dimension unit: mm
