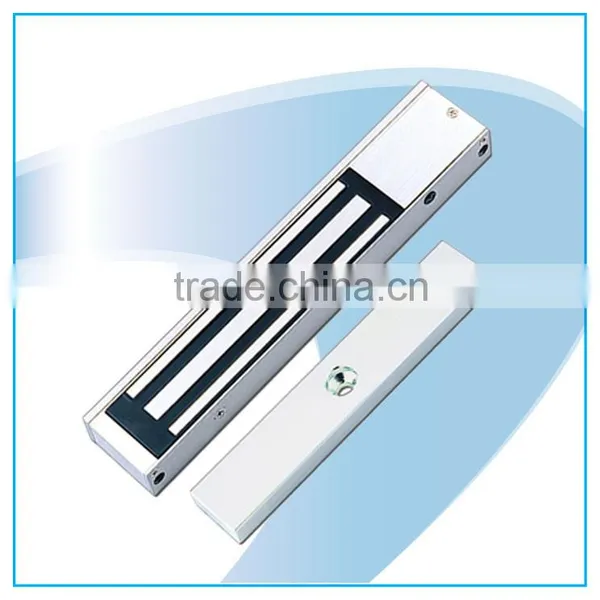

550Lbs/250Kgs Electromagnetic Lock
Product Description
•550Lbs (250Kgs) holding force electromagnetic & magnetic lock.
•For access control systems with high traffic doors which are fail-safe operation.
•The locks contain none of moving parts and there are maintenance free and durable.
•Additionally, door position contacts and LED indication for correct alignment of armature are available for some versions.
Specifications
PML-1100
•Magnet size (mm):250(L) x 47(W) x 26(D)
•Armature size (mm):185(L) x 38(W) x 11(D)
•Holding force: 550Lbs / 250kgs
•Voltage/Current:12V/500mA, 24V/250mA
•Relay dry contact rating:500mA, 24VDC/AC
•Unit weight (Approx.): 2.5kg
•PML-1101
•Magnet size (mm):250(L) x 47(W) x 26(D)
•Armature size (mm):185x38x11
•Holding force: 550Lbs / 250kgs
•Voltage/Current:12V/500mA, 24V/250mA
•Relay dry contact rating:500mA, 24VDC/AC
•Unit weight (Approx.): 2.5kg
•Door monitoring:YES
•Timer (LED):YES

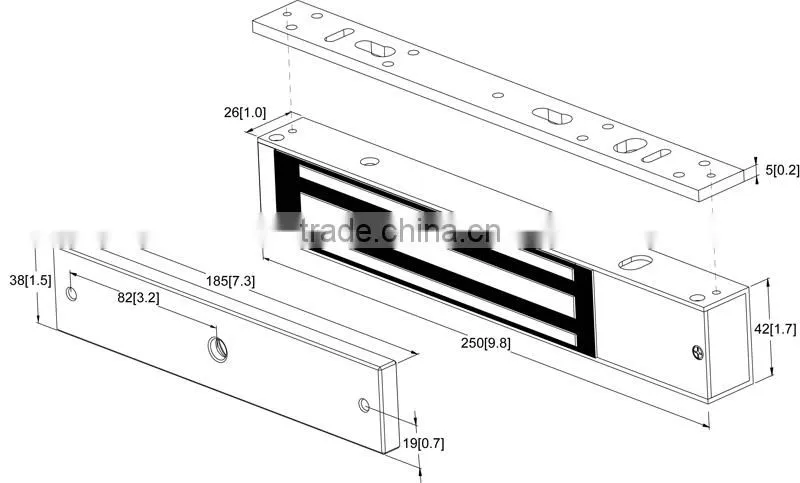

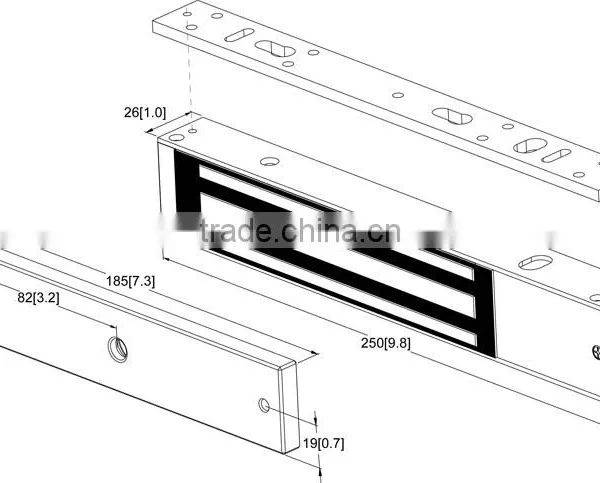

Dimensions: mm[inch]
Application
For aluminum steel or wooden door, brass door, glass door with frame
Accessories
L type adjustable bracket - PG-BLO110A
L & Z fixed bracket - PG-BLZ110A
We reserve the right to change the specification without notice or obligation!
