Fail-Safe And Secure Adjustable Electric Strike
Features
•The PGS-501 is a ANSI size electric door strike.
•Suitable for 15mm latches.
•Installed on wooden/metal frames and doors.
•Electric door strike operation:
Power to lock (fail-safe) / Power to open (fail-secure).
•Pair with mortise type dead bolt mechanical lock MK-738 or mortise lock
•With patent.
Specifications
| Voltage | DC 12V / DC 24V ±10% |
| Current | 230mA / 190mA ±10% |
| Endurance | 1,000,000 cycles. |
| Keeper width | 38.8mm |
| Material |
Plate: Aluminum / Stainless steel Lock body: Zinc alloy Latches: Stainless steel |
| Net weight | 165g±1% |

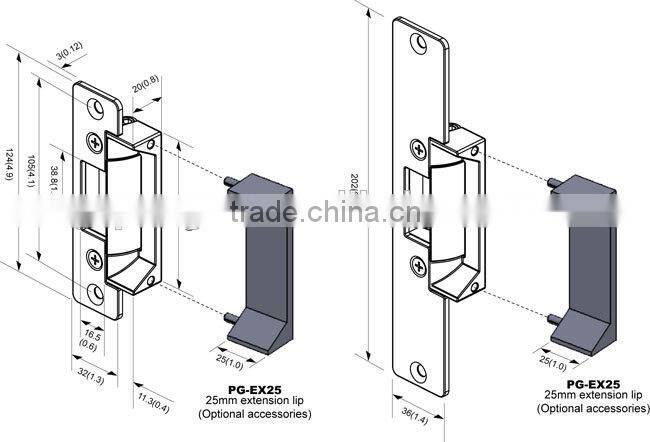

Dimensions: mm[inch]

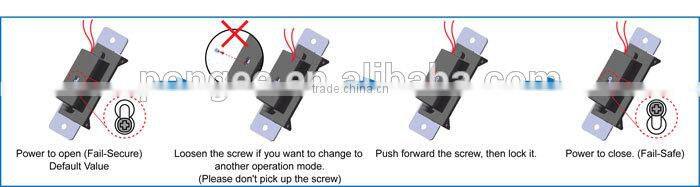

How to change operation mode of electric strike
Ordering information
PGS-501: : ANSI size electric strike, front plate: 124x32mm, aluminum, 12V
PGS-501L: ANSI size electric strike, front plate: 202x36mm, aluminum, 12V
PGS-501S: ANSI size electric strike, front plate: 124x32mm, stainless steel, 12V
PGS-501SL: ANSI size electric strike, front plate: 202x36mm, stainless steel, 12V
PGS-501-24V: ANSI size electric strike, front plate: 124x32mm, aluminum, 24V
PGS-501L-24V: ANSI size electric strike, front plate: 202x36mm, aluminum, 24V
PGS-501S-24V: ANSI size electric strike, front plate: 124x32mm, stainless steel, 24V
PGS-501SL-24V: ANSI size electric strike, front plate: 202x36mm, stainless steel, 24V

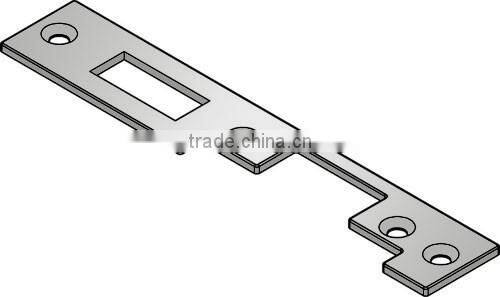

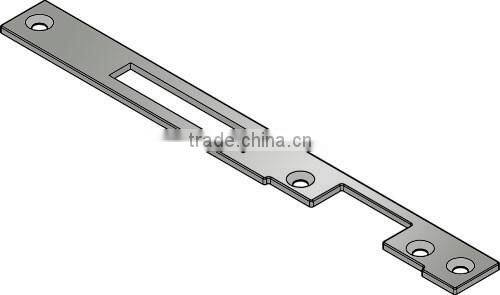

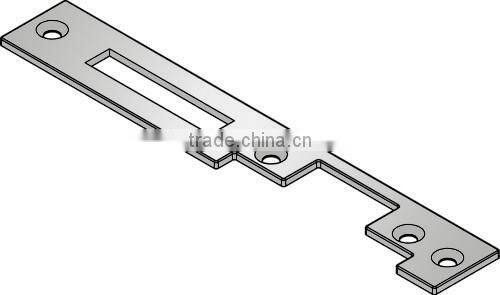

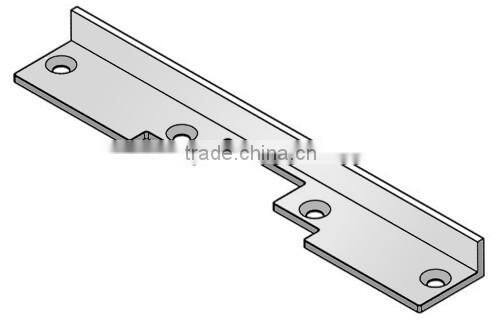

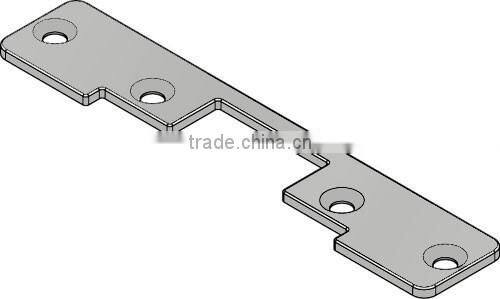

Model No. |
Appearance |
Dimensions(unit:mm) |
Material |
PG-FP150 |
|
150 x 28.6 |
Stainless steel |
PG-FP182 |
|
182 x 32 |
Stainless steel |
PG-FP202 |
|
201.6 x 32 x 16 |
Aluminum |
PG-FP209 |
|
209 x 31.7 |
Stainless steel |
PG-FP251 |
|
251 x 25 |
Stainless steel |
We reserve the right to change the specification without prior notice or obligation!
