12V/24V 1100Lbs , 500Kgs single door Electromagnetic lock
Product Description
•1100Lbs (500Kgs) holding force electromagnetic & magnetic lock.
•For access control systems with high traffic doors which are fail-safe operation.
•The locks contain none of moving parts and there are maintenance free and durable.
•Additionally, door position contacts and LED indication for correct alignment of armature are available for some versions.
Specifications
PML-2100
•Magnet size (mm):266(L) x 73(W) x 40(D)
•Armature size (mm):185(L) x 61(W) x 16(D)
•Holding force: 1100Lbs /500kgs
•Voltage/Current:12V/500mA, 24V/250mA
•Voltage tolerance:10%
•Relay dry contact rating:500mA,24VDC/AC
•Unit weight (Approx.): 5.5kg
PML-2101
•Magnet size (mm):266(L) x 73(W) x 40(D)
•Armature size (mm):185(L) x 61(W) x 16(D)
•Holding force: 1100Lbs /500kgs
•Voltage/Current:12V/500mA, 24V/250mA
•Voltage tolerance:10%
•Relay dry contact rating:500mA, 24VDC/AC
•Unit weight (Approx.): 5.5kg
•Door monitoring:YES
•Timer (LED):YES

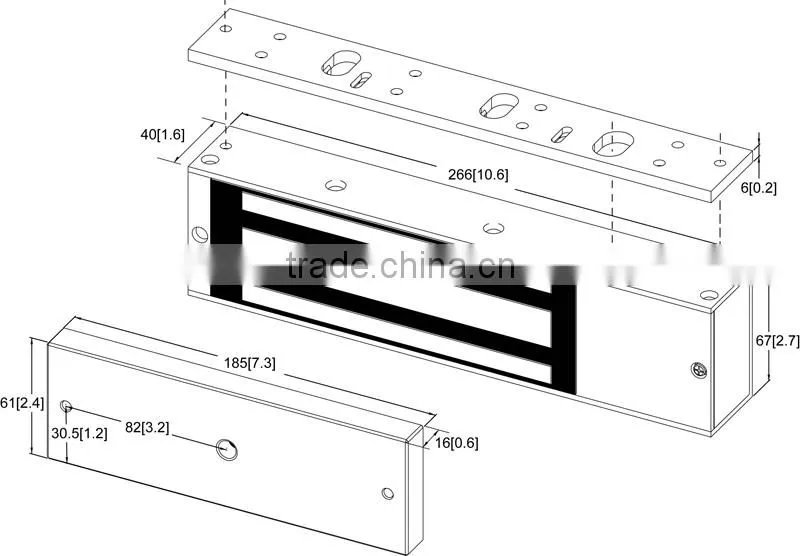

Dimensions: mm[inch]
Application
For aluminum steel or wooden door, brass door, glass door with frame
Accessories
L type adjustable bracket - PG-BLO210A
L & Z fixed bracket - PG-BLZ210A
We reserve the right to change the specification without prior notice or obligation!
