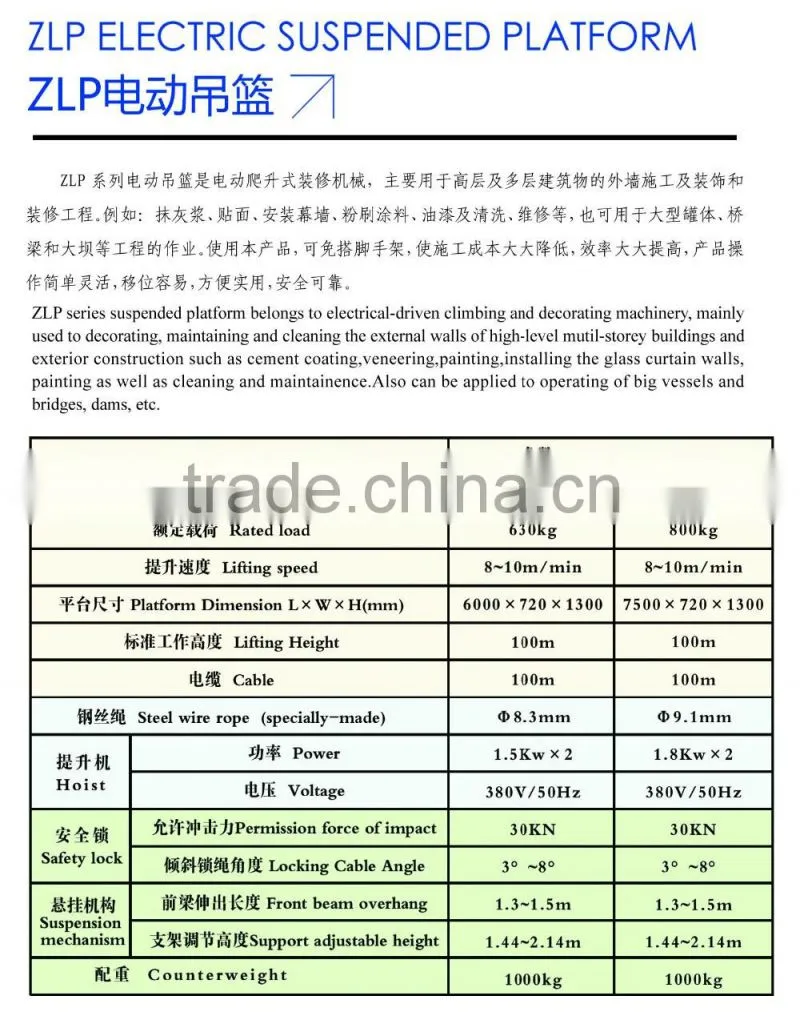

| Name | Technical parameter of swing stage scaffolding platform | ||||
| Model | ZLP500 | ZLP630 | ZLP800 | ZLP100 | |
| Rated load | 500KG | 630KG | 800KG | 1000KG | |
| Lifting speed | 8-10m/min | 8-10m/min | 8-10m/min | 8-10m/min | |
| Platform Dimension L×W×H(mm) | 5000(2+3m)×720 ×1300 |
6000(1+2+3m)×720 ×1300 |
7500(2.5m*3)×720 ×1300 |
7500(3*2.5)×720 ×1300 |
|
| Lifting Height | 100M | 100M | 100M | 100M | |
| Cable | 100M | 100M | 100M | 100M | |
| Steel rope | Dia:8.3mm | Dia:8.3mm | Dia:9.1mm | Dia:8.6mm | |
| Hoist | Power | 1.5KW*2 | 1.5KW*2 | 1.8KW*2 | 2.2KW*2 |
| Voltage | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | |
| Safety lock | Permission force of | 30KN | 30KN | 30KN | 30KN |
| impact | 3°~8° | 3°~8° | 3°~8° | 3°~8° | |
Suspension mechanism Galvanized |
Front beam overhang | 1.3~.1.5m | 1.3~.1.5m | 1.3~.1.5m | 1.3~.1.5m |
| Support adjustable height | 1.44~2.14m | 1.44~2.14m | 1.44~2.14m | 1.44~2.14m | |
| Counterweight | 800KG | 1000KG | 1000KG | 1200KG | |
| 20’ft container load qty | 10 sets | 10 sets | 8 sets | 8 sets | |
| Type | A-alloy platform, Hot Dipping Platform, Steel platform |
||||
Suspended scaffolds
scaffolding for sale
tubular scaffolding
hanging scaffold
scaffold ladder type
Suspended platform swing stage
hydraulic automatic scaffolding
1. High-rise building: Decoration, construction for external wall, installation of curtain wall and external components,repairing, checking, maintenance and cleaning for external wall.
2. Large-scale project: construction,repairing and maintenance for large tank, chimney, dams, bridges,derrick.
3. Large ships: welding, cleaning and painting.
4. billboard: installation billboard for high-rise building.
5. swing stage scaffolding/ Building/ External Wall Suspended Platform/ Cradle/ Gondola/ Swing Stage/ Sky Climber/ Scaffold/ swing stage scaffolding , swing stage scaffolding
6.Decorating and constructing the external walls of highrise buildings.
7.Repairing, checking, maintenance and cleaning for the external walls of the highrise buildings.
8.Construction, repairing and maintenance for large scale projects such as large tanks, chimneys, dams & bridges.
9.Welding, cleaning and painting for large ships.
10.Installing billboard for the high- rise buildings

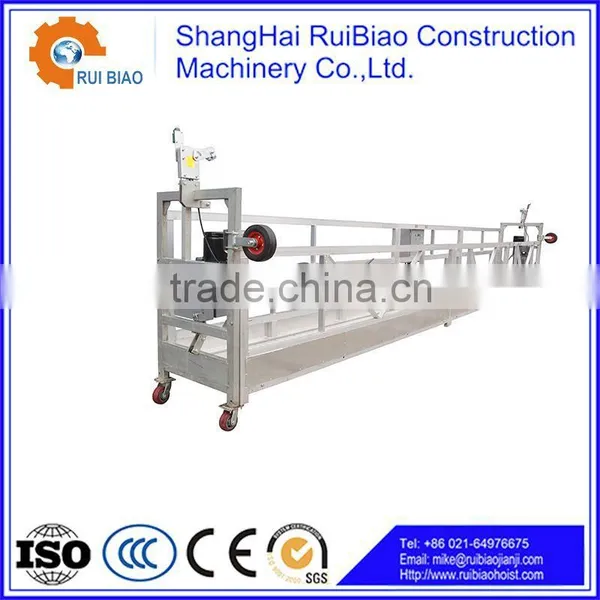

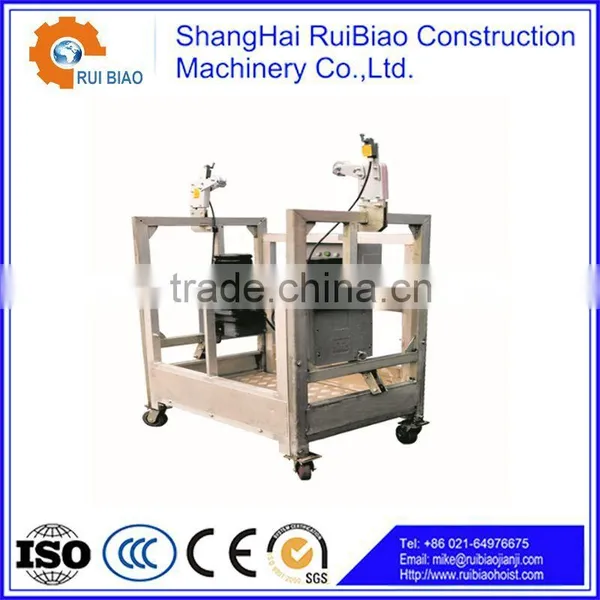

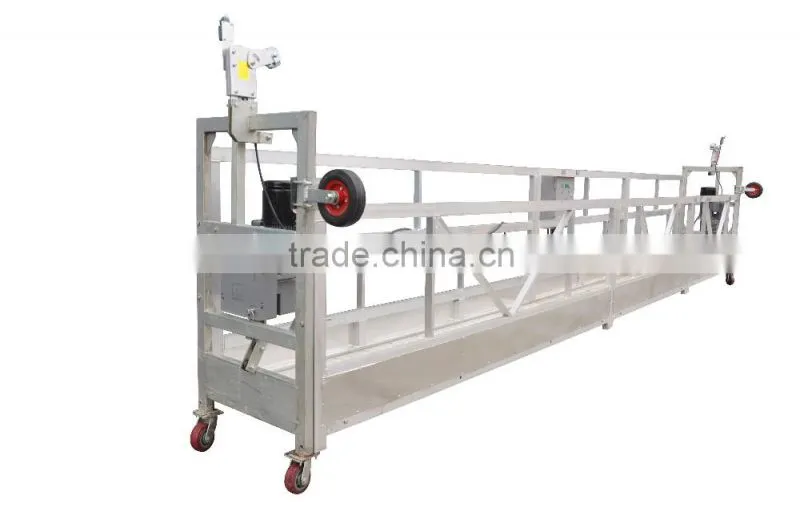

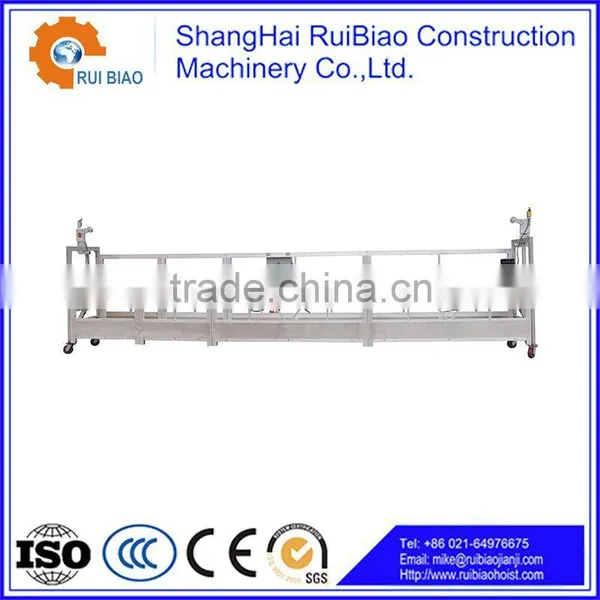

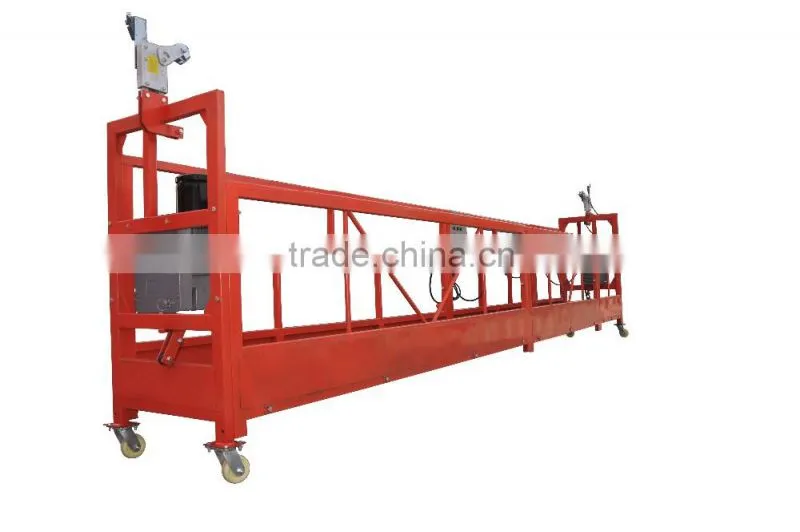

B.Parts of platform of swing stage scaffolding :

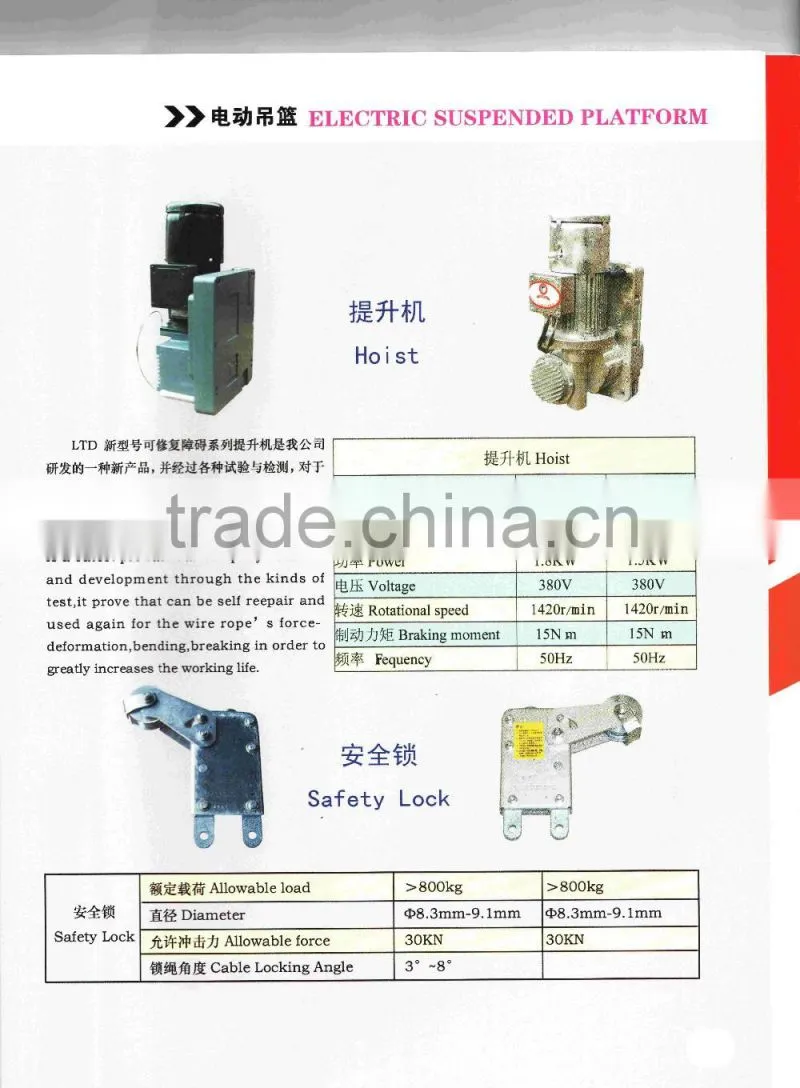

1. Platform(basket): Steel or Aluminum Alloy (painted or hot galvanized)2. Suspension Mechanism: Steel (painted or hot galvanized)3. Electric hoists:1T/1.5T/2T....4. Safety Lock: RB305. Electric control box: Along with hoists6. Steel wire rope: 8.3mm ,8.6mm or 9.1mm7. Safety rope: 18mm,20mm8. Counterweights: Cement , cement with steel cover & Iron counterweight.
