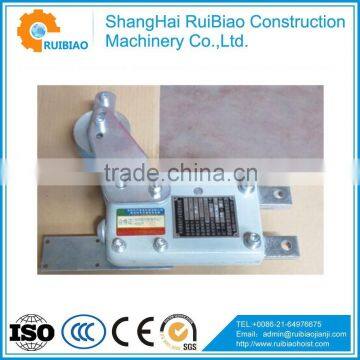

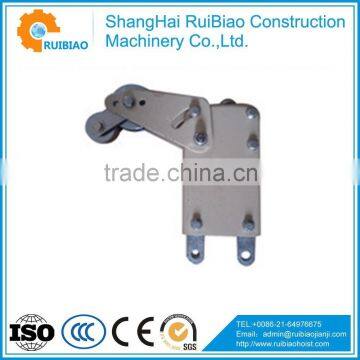

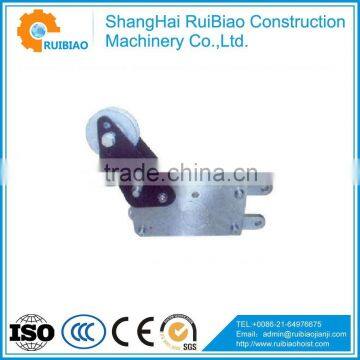

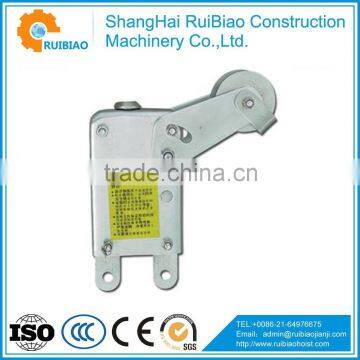

Safety lock is the protection equipment, two safety ropes are set independently. The suspended platform is set with safety locks. When the platform goes acclivitous, the hoist system gets major faults or ropes are broken off and falling, the safety locks will lock the wire ropes to ensure the safety of the operator and the machine.
When the steel rope next to wheel on the top of swinging arm, the revolvingshaft open with the rope clamp, so that steel rope can pass through. When the platform goes acclivitous, or ropes are broken off and falling, the steel rope will not lean on the wheel to down , but the safety locks will lock the wire ropes to ensure the safety of the operator.

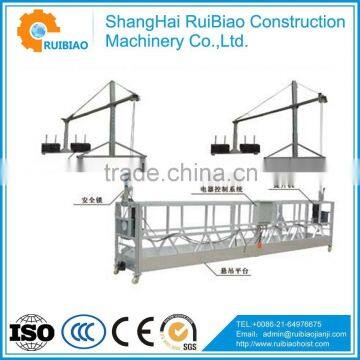

safety lock for ZLP series hanging scaffolding/gondola:
| Name | Technical parameter | |||||
| Model | ZLP500 | ZLP630 | ZLP800 | ZLP1000 | ||
| Rated load | 500Kg | 630Kg | 800Kg | 1000Kg | ||
| Lifting speed | 8-10m/min | 8-10m/min | 8-10m/min | 8-10m/min | ||
| Platform Dimension L×W×H(mm) |
5000(2+3m)×720 ×1300 |
6000(1+2+3m)×720 ×1300 |
7500(2.5m*3)×720 ×1300 |
7500(3*2.5)×720 ×1300 |
||
| Lifting Height | 100 m | 100 m | 100 m | 100 m | ||
| Cable | 100 m | 100 m | 100 m | 100 m | ||
| Steel rope(diameter) | 8.3mm | 8.3mm | 9.1mm | 8.6mm | ||
| Hoist | Power | 1.5KW*2 | 1.5KW*2 | 1.8KW*2 | 2.2 KW*2 | |
| Voltage | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | ||
| Safety lock | Permission force of impact | 30KN | 30KN | 30KN | 30KN | |
| Locking Cable Angle | 3°~8° | 3°~8° | 3°~8° | 3°~8° | ||
|
Suspension mechanism Galvanized |
Front beam overhang | 1.3~.1.5m | 1.3~1.5m | 1.3~1.5m | 1.3~.1.5m | |
| Support adjustable height | 1.44~2.14m | 1.44~2.14m | 1.44~2.14m | 1.44~2.14m | ||
| Counterweight | 800KG | 1000kg | 1000kg | 1200KG | ||
| 20’ft container load qty | 10 sets | 9sets | 8sets | 8 sets | ||
We sincerely hope to cooperate with friends!
