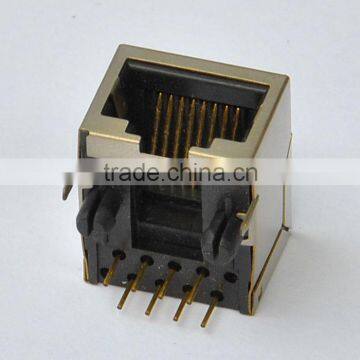

Shield Vertical RJ45 10P PCB Modular Connector
US$ 0.1 - 2
MOQ: 5000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
CSCE
Model Number:
SC615-5622S-10P
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CAT5 Multi-port RJ45 Modular PCB Jack With ShieldUS$ 0.1 - 2MOQ: 5000 Pieces -
RJ45 Jack With Transformer With MagneticsUS$ 0.1 - 2MOQ: 5000 Pieces
-
RJ45 2*1 8p Network With Shield Connector/JackUS$ 0.23 - 2.2MOQ: 2000 Pieces
-
Network PCB RJ45 8pinUS$ 0.1 - 2MOQ: 5000 Pieces
-
10p RJ45 PCB ConnectorUS$ 0.1 - 2MOQ: 5000 Pieces
Place of Origin
Zhejiang, China
Brand Name
CSCE
Model Number
SC615-5622S-10P
Specifications
1.Vertical RJ45 PCB connector with round 10p pin,with shield.2.UL,RoHS.ISO9001-2000
Description:
Muti-Port RJ45 side entry Network Jack
Number of ports: 1*4
Number of position: 10
Number of contacts: 2,4,6,8 or 10
Electrical:
Rated current: 1.5A
Rated voltage: 125VAC
Insulation resistance: 500MΩmin
Contact resistance: 30MΩmax
Withstanding voltage: 1000VAC RMS, 50 or 60Hz 1 Min
Mechanical:
Insertion force: 2.2kgf max
Retention strength: 7.7kgf min between jack and plug
Durability: 600 mating cycles minimum
Materials:
Housing: ABS resin (UL94V-0), PBT (UL94V-0), PA66 (UL94V-0), and PA46 (UL94V-0)
2. Contact Wire: Diameter 0.45mm phosphor bronze gold plating over
Nickel
3. Shield: 0.20~0.25mm thickness brass with tin plated
4. Gold Plating: Fu",+3u",6u",15u",30u",50u"
